Moto Technik CDF45/B3/2

Series: Other models

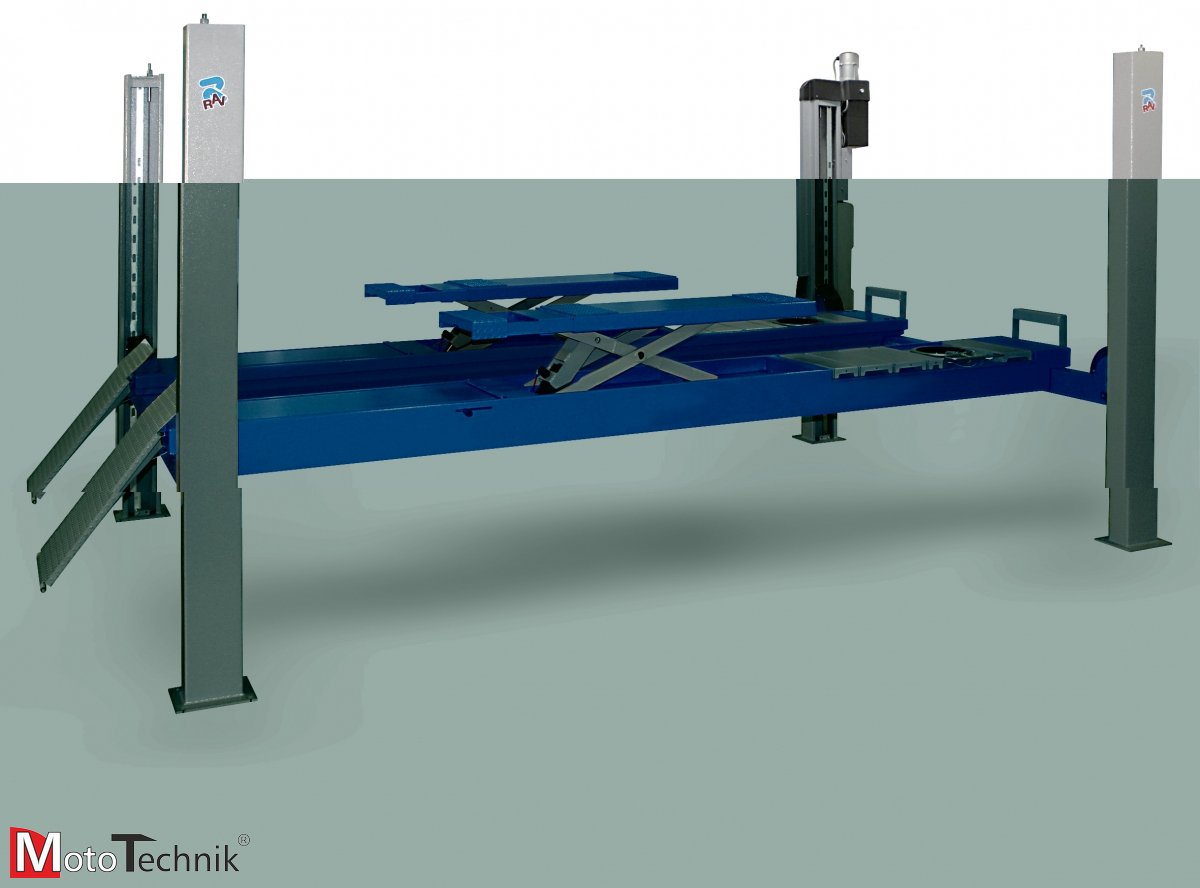

The photo shows the WZY2-5.5/B3/4 from the same series. Source: https://mototechnik.pl/en/podnosnik-czterokolumnowy-diagnost

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Moto Technik CDF45/B3/2 is a three-phase induction motor built by Moto Technik. The rated output is 45 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 415 V. The housing is frame size 225 M in foot-mounted form. The protection class is IP55. The efficiency is 92.7 per cent at full load, 92.8 per cent at 75 per cent load and 91.4 per cent at half load. The motor weighs 309 kg. At full load it delivers 145 Nm. Mounting arrangements to IEC 60034-7: B3, B5, B14, B35 and B34. The motor is built in China. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2000 (Legacy); measured to AS 1359.102.1:1997. Rated output across the Moto Technik range ranges from 0.75 to 160 kW; the CDF45/B3/2 sits in the lower part of that range with 45 kW. Its immediate neighbours are the WZY2-37/B3/4 below it with 37 kW and the CDF55/B3/2 above it with 55 kW. 88 Moto Technik models are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.

Technical data

Engine

Rated output45 kWcorrect

Dimensions and weights

Weight309 kgcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles2correct
Protection classIP55correct
Frame size225 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B14, B35, B34correct
Efficiency at full load92.68 %correct
Efficiency at 75 % load92.82 %correct
Efficiency at half load91.42 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodAS 1359.102.1:1997correct

Frequently asked questions

How much power does the Moto Technik CDF45/B3/2 have?

The Moto Technik CDF45/B3/2 delivers 45 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
