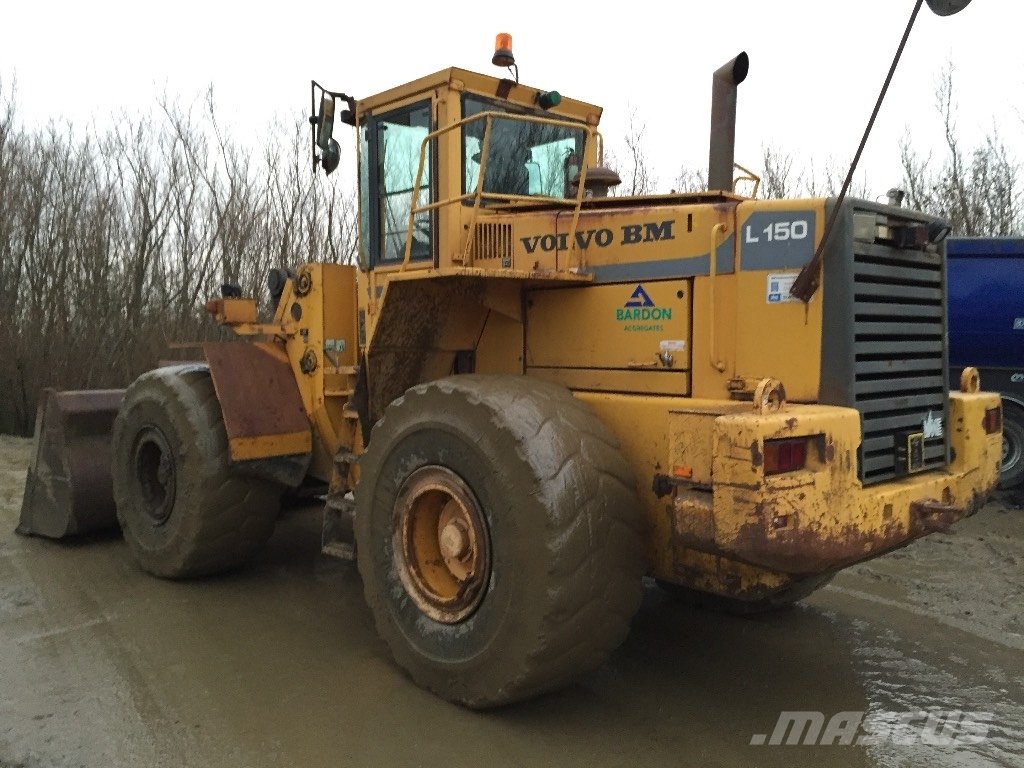

Michigan L150

Series: Michigan Wheel Loader

Source: http://uncle-vova.com/card/volvo-bm-michigan-l150-frontal-wh

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Michigan Wheel Loader series from Michigan includes the L150. The engine delivers 248.4 hp (172.3 kW), has 6 cylinders, with a displacement of 9,601.2 cm³. Torque is 1,000.1 Nm. Rated speed is 2,100 rpm. The unladen weight is 21,260 kg. The wheelbase measures 3,550.9 mm. Ground clearance is 481.6 mm. The tank holds 339.2 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,200 rpm. The pump delivers 313.4 l/min. The hydraulic tank holds 245.3 litres. The cooling system holds 65.1 litres. The electrical system runs on 24 V. The engine fitted is the TD 102 GC. Tyre size: 26,5-R25. The Michigan Wheel Loader series covers 16 models. Rated output within it ranges from 91.2 to 735.6 hp; the L150 sits in the lower part of that range with 248.4 hp. Its immediate neighbours are the L140 below it with 228.1 hp and the L190 Long Boom above it with 326.5 hp. 30 Michigan models across 6 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine modelTD 102 GCcorrect
Power248.4 hp (172.3 kW)correct
Rated speed2,100 rpmcorrect
Torque1,000.1correct
Speed at max. torque1,200 rpmcorrect
Cylinders6correct
Displacement9,601.2 cm³correct
Aspirationturbochargedcorrect
Coolant capacity65.1 lcorrect

Dimensions and weights

Wheelbase3,550.9correct
Ground clearance481.6correct
Unladen weight21,260 kgcorrect

Drivetrain and chassis

Gearbox typeVolvo BM HT 210 power shiftcorrect
Forward gears4correct
Reverse gears3correct
Tyre size26.5-R25correct
System voltage24 Vcorrect

Working data

Pump flow313.4 l/mincorrect
Hydraulic oil capacity245.3 lcorrect
Fuel tank capacity339.2 lcorrect

Other data

Height3,651.5correct

Where this model stands

Power-to-weight ratio: 8.1 kW/t (172 kW / 21.3 t)

Stronger than 80% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Michigan L150 have?

The Michigan L150 delivers 248 hp.

How much does the Michigan L150 weigh?

The unladen weight is 21,260 kg.

What engine does the Michigan L150 have?

6 cylinders, 9,601 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
