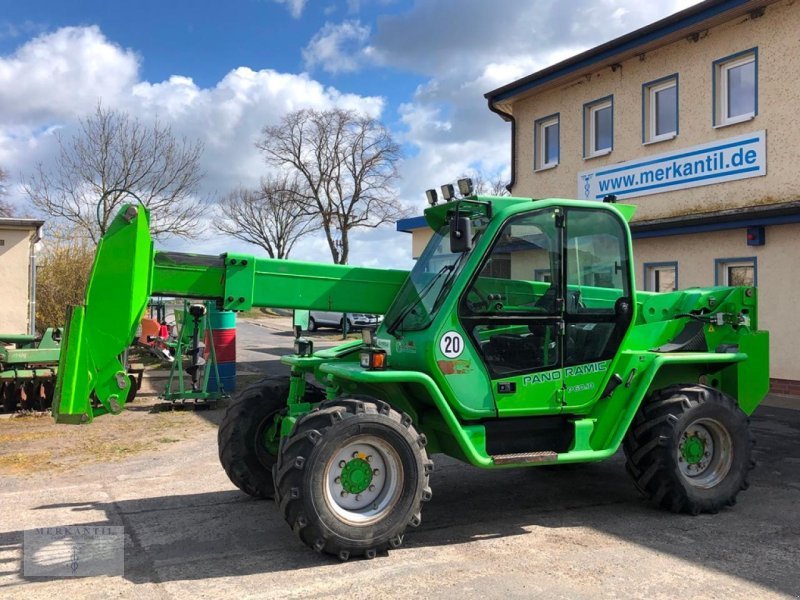

Merlo P 60.10
Series: Merlo Telescopic Forklift
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Merlo P/Roto – the type number reads as capacity times lift height
At Italian manufacturer Merlo, telehandler type designations combine two numbers: the first gives maximum capacity in hundreds of kilograms, the second maximum lift height in metres. The P 25.6, for instance, lifts up to 2.5 t to a height of up to 6 m; the "P" marks the "Panoramic" range with its characteristic offset cab and clear view of the forks.
Read on 3 more paragraphs
Suffix letters refine the picture: an "L" as in P 25.6 L marks a low-cab version with reduced overall height for low barns or halls, while an "S" denotes compact multi-stage ("Stage") versions such as 38.14S. For machines with full 360° rotation, Merlo runs a separate "Roto" line.
Models recorded in the database span engine outputs of 55 to 170 kW, own weights of 4,900 to 15,500 kg, capacities of 2,500 to 7,900 kg, and lift heights of 5.9 to 21 metres across 4 to 6 cylinders — the bucket covers everything from compact farmyard telehandlers to high-reach machines for construction and industry, represented by models such as 27.8, 38.14, 38.16S or 50.10S.
Used buyers should watch the boom condition and, above all, the load chart: the capacity named in the type code only applies at minimum reach close to the machine — with the telescopic arm extended, the permissible load drops noticeably, as shown in that machine's own load diagram.
Sources: Kennwerte der Modelle Merlo Telescopic Forklift, - Landwirt.com: Merlo P 25.6 L, Tragkraft/Hubhöhe-Logik, - Top Agrar: Merlo P 25.6 L Baubericht
Technical data
Engine
| Engine model | 1104C-44Tcorrect |
|---|---|
| Power | 102.4 hp (75.3 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,900.1 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Height | 2,440 mmcorrect |
|---|---|
| Wheelbase | 2,877.3correct |
| Ground clearance | 481.6correct |
| Unladen weight | 9,890 kgcorrect |
Drivetrain and chassis
| Gearbox type | hydrostatic transmissioncorrect |
|---|---|
| Forward gears | 2correct |
| Reverse gears | 2correct |
| Tyre size | 400/70-20correct |
Working data
| Lift height | 9,500 mmcorrect |
|---|---|
| Pump flow | 108.3 l/mincorrect |
| Hydraulic oil capacity | 95 lcorrect |
| Hydraulic pressure | 210correct |
| Fuel tank capacity | 155.2 lcorrect |
Other data
| System voltage | 12 Vcorrect |
|---|
More machines with this engine (Perkins 1104C-44T, 80)
Where this model stands
Power-to-weight ratio: 7.6 kW/t (75 kW / 9.9 t)
Stronger than 53% of the telehandlers in the register — out of 661 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Merlo P 60.10 have?
The Merlo P 60.10 delivers 102 hp.
How much does the Merlo P 60.10 weigh?
The unladen weight is 9,890 kg.
What engine does the Merlo P 60.10 have?
4 cylinders, 3,900 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
