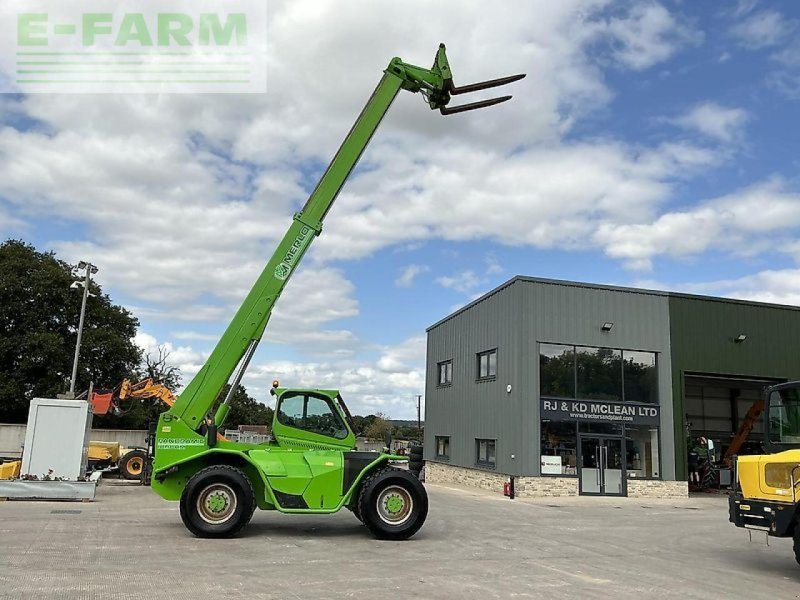

Merlo P 101.10 HM

Series: Merlo Telescopic Forklift

Source: https://www.technikboerse.com/en/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Merlo Telescopic Forklift series from Merlo includes the P 101.10 HM. The engine delivers 147 hp (108.1 kW), has 6 cylinders, with a displacement of 4,000.1 cm³. Rated speed is 2,300 rpm. The unladen weight is 15,200 kg. The wheelbase measures 3,240 mm. Ground clearance is 451.1 mm. The tank holds 185.1 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. The pump delivers 138.2 l/min. The hydraulic tank holds 180.2 litres. Working pressure is 230 bar. The electrical system runs on 12 V. Tyre size: 17,5-25 22PR. The Merlo Telescopic Forklift series covers 64 models. Rated output within it ranges from 76 to 231.2 hp; the P 101.10 HM sits in the middle of that range with 147 hp. Its immediate neighbours are the 45.21MCTJ below it with 145.5 hp and the P 55.9 CS above it with 156.4 hp. 164 Merlo models across 5 series are on record. The model is listed under Telehandlers. 18 verified figures from 1 source are on file.

Merlo P/Roto – the type number reads as capacity times lift height

At Italian manufacturer Merlo, telehandler type designations combine two numbers: the first gives maximum capacity in hundreds of kilograms, the second maximum lift height in metres. The P 25.6, for instance, lifts up to 2.5 t to a height of up to 6 m; the "P" marks the "Panoramic" range with its characteristic offset cab and clear view of the forks.

Read on 3 more paragraphs

Suffix letters refine the picture: an "L" as in P 25.6 L marks a low-cab version with reduced overall height for low barns or halls, while an "S" denotes compact multi-stage ("Stage") versions such as 38.14S. For machines with full 360° rotation, Merlo runs a separate "Roto" line.

Models recorded in the database span engine outputs of 55 to 170 kW, own weights of 4,900 to 15,500 kg, capacities of 2,500 to 7,900 kg, and lift heights of 5.9 to 21 metres across 4 to 6 cylinders — the bucket covers everything from compact farmyard telehandlers to high-reach machines for construction and industry, represented by models such as 27.8, 38.14, 38.16S or 50.10S.

Used buyers should watch the boom condition and, above all, the load chart: the capacity named in the type code only applies at minimum reach close to the machine — with the telescopic arm extended, the permissible load drops noticeably, as shown in that machine's own load diagram.

Sources: Kennwerte der Modelle Merlo Telescopic Forklift, - Landwirt.com: Merlo P 25.6 L, Tragkraft/Hubhöhe-Logik, - Top Agrar: Merlo P 25.6 L Baubericht

Technical data

Engine

Power147 hp (108.1 kW)correct
Rated speed2,300 rpmcorrect
Cylinders6correct
Displacement4,000.1 cm³correct
Aspirationturbocharged intercoolercorrect

Dimensions and weights

Height2,850 mmcorrect
Wheelbase3,240correct
Ground clearance451.1correct
Unladen weight15,200 kgcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmissioncorrect
Forward gears2correct
Reverse gears2correct
Tyre size17.5-25 22PRcorrect

Working data

Lift height9,800 mmcorrect
Pump flow138.2 l/mincorrect
Hydraulic oil capacity180.2 lcorrect
Hydraulic pressure230correct
Fuel tank capacity185.1 lcorrect

Other data

System voltage12 Vcorrect

Where this model stands

Power-to-weight ratio: 7.1 kW/t (108 kW / 15.2 t)

Stronger than 88% of the telehandlers in the register — out of 661 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Merlo P 101.10 HM have?

The Merlo P 101.10 HM delivers 147 hp.

How much does the Merlo P 101.10 HM weigh?

The unladen weight is 15,200 kg.

What engine does the Merlo P 101.10 HM have?

6 cylinders, 4,000 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
