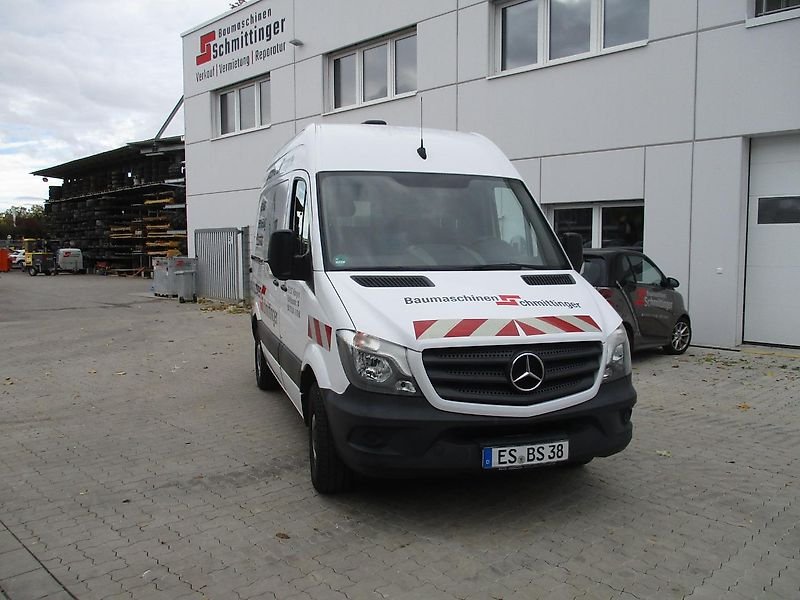

Mercedes Benz 316CDI - 3,5T
Built: 2010-2011 · Series: Sprinter
More machines from model year 2010
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Mercedes-Benz Sprinter as a van up to 3.5 tonnes – panel van, combi and crew cab in the light registration class: four- and six-cylinder CDI engines, 60 to 140 kW, rear-wheel and four-wheel drive
The Sprinter has been Mercedes-Benz's large panel van since 1995, and in this light registration class it covers vehicles up to 3.5 tonnes gross weight. The type designation follows a fixed factory logic: the first digit gives the weight class, the next two roughly the output in steps of ten horsepower – in this class the values run from 210 to around 320. KSV stands for panel van, DKA for crew cab, CHS probably for a chassis variant; RWD and 4X2 denote rear-wheel drive, AWD/4X4 four-wheel drive, AUT and MAN the automatic or manual gearbox.
Read on 3 more paragraphs
The register lists 256 versions with 60 to 140 kW output, displacements of 1,796 to 2,999 cm³ across 4 to 6 cylinders, unladen weights of 1,840 to 3,325 kg, gross weights of 2,695 to 3,550 kg and lengths of 5,200 to 7,750 mm at 1,900 to 2,600 mm width.
In this class the Sprinter competes with the Ford Transit, Volkswagen Crafter, Iveco Daily and Renault Master as a panel van for courier, trade and passenger work up to 3.5 t, for which an ordinary car licence suffices in many countries.
On used examples, check rust at the sliding-door rails and load-sill edge, condition of the turbocharger and injectors on the CDI engines, clutch wear on courier vehicles with frequent stop-starts, function of the tow hitch on combi versions, and whether the stated payload matches actual use.
Sources: Kennwerte der Modelle Mercedes-Benz Sprinter (Transporter-Zulassungsklasse), Mercedes-Benz Vans (Hersteller)
Technical data
Engine
| Power | 120 kWcorrect |
|---|---|
| Cylinders | 4correct |
| Displacement | 2,143 cm³correct |
Dimensions and weights
| Length | 6,569 mmcorrect |
|---|---|
| Width | 2,210 mmcorrect |
| Unladen weight | 2,595 kgcorrect |
| Gross vehicle weight | 3,500 kgcorrect |
Drivetrain and chassis
| Gears | 6correct |
|---|
Where this model stands
Power-to-weight ratio: 46.2 kW/t (120 kW / 2.6 t)
Stronger than 81% of the vans in the register — out of 7,147 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Mercedes Benz 316CDI - 3,5T have?
The Mercedes Benz 316CDI - 3,5T delivers 120 kW.
How much does the Mercedes Benz 316CDI - 3,5T weigh?
The unladen weight is 2,595 kg.
What is the gross vehicle weight of the Mercedes Benz 316CDI - 3,5T?
3,500 kg.
What engine does the Mercedes Benz 316CDI - 3,5T have?
4 cylinders, 2,143 cm³ displacement.
What are the dimensions of the Mercedes Benz 316CDI - 3,5T?
6,569 mm × 2,210 mm.
When was the Mercedes Benz 316CDI - 3,5T built?
Production years: 2010-2011.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
