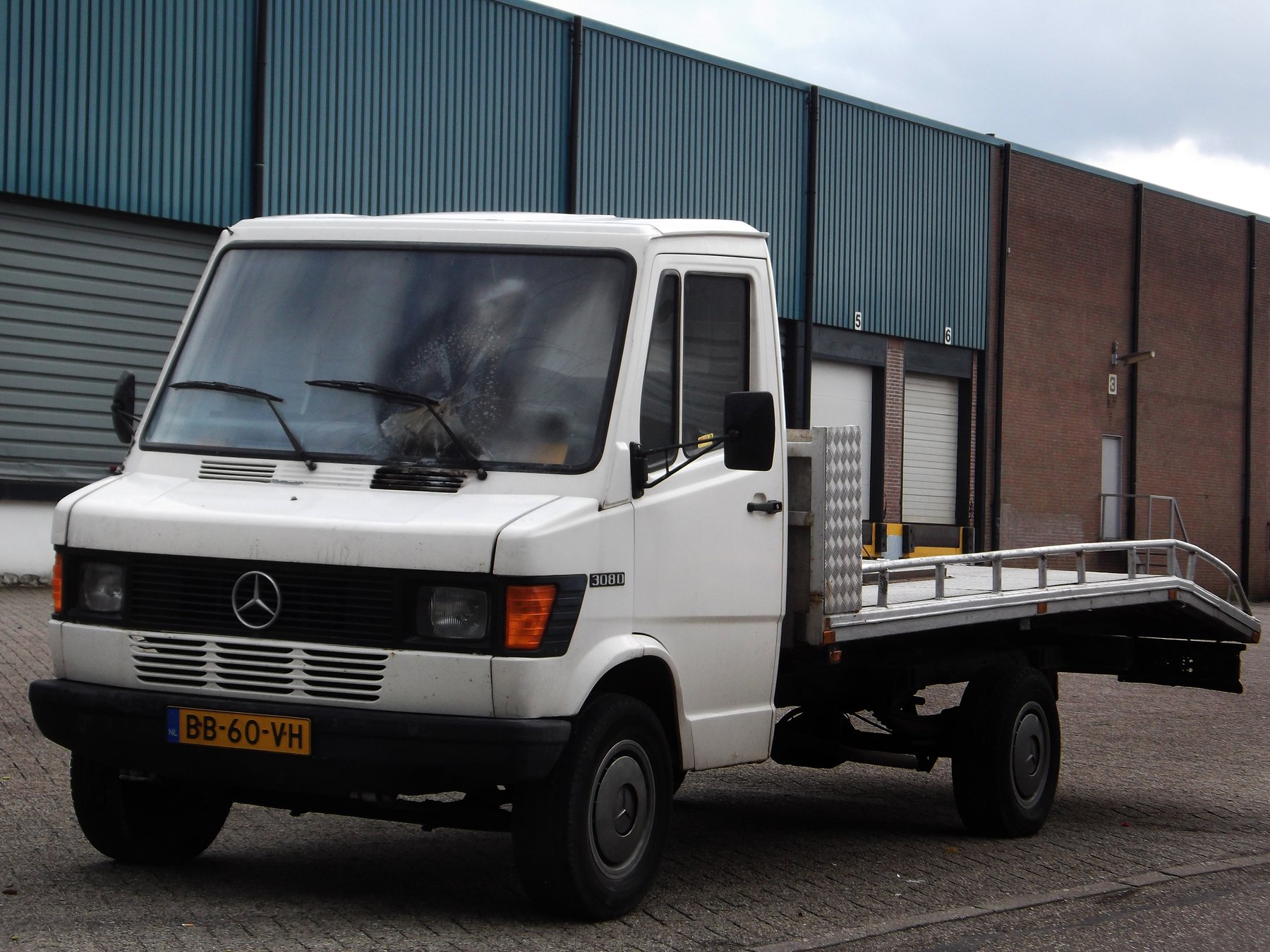

Mercedes Benz 308D

Built: 1985-2000 · Series: Trucks 3.5–12 t (Class N2)

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Mercedes Benz 308D is a machine built by Mercedes Benz. Production: 1985-2000. The engine delivers 58 kW, has 4 cylinders, with a displacement of 2,294.5 cm³. The machine is 5,707.5 mm long and 1,966.5 mm wide. The unladen weight is 2,060 kg. The wheelbase measures 4,020 mm. Top speed is 127 km/h. The gross vehicle weight is 3,530 kg. The machine runs on 4 wheels. The gearbox offers 4 gears. Rated output across the Mercedes Benz range ranges from 17.7 to 2,140 kW; the 308D sits at the bottom of that range with 58 kW. Its immediate neighbours are the MB trac 800 below it with 55 kW and the L508 D above it with 59 kW. 6445 Mercedes Benz models across 57 series are on record. The model is listed under Trucks over 7.5 t. 14 verified figures from 2 sources are on file.

The Düsseldorfer — Mercedes T2 and what the numbers mean

Anyone looking for a 508 D or 608 D is looking for the T2 — called "Düdo" by drivers and collectors, after the Düsseldorf plant where it was built from 1967 to 1991. The series ran until 1996, making it one of the longest-produced commercial vehicles in its class.

Read on 4 more paragraphs

The type designation is arithmetic: the first digit gives the permissible gross weight in tonnes, the following ones the engine output in metric horsepower. A 508 D is rated at 5 tonnes and around 80 hp, a 608 D with the same engine at 6 tonnes. The "D" stands for diesel. Technically, then, less separates them than the numbers suggest — the 608 D is essentially a more highly rated 508 D.

Under the bonnet of most of these vehicles sits the OM 314: a four-cylinder inline engine of 3,758 cc with direct injection, rated at 80 or 85 hp depending on version. It was the most popular choice in the first T2 generation and also appears in the O 309 bus. Anyone hunting for parts still benefits: an engine used across several series stays supplied longer than a one-off.

In 1986 an entirely new second generation arrived, built until 1996 and delivered mainly with diesel engines. When buying used it is therefore worth checking the year: a complete redesign lies between the first and second generation, even though both go by T2.

Register entries in this class come largely from official registration data. They are reliable on dimensions and weights — equipment details of individual vehicles are, by their nature, not recorded there.

Sources: Wikipedia: Mercedes-Benz T2, Wikipedia (englisch), Car-Chief: OM 314

Technical data

Engine

Power58 kWcorrect
Cylinders4correct
Displacement2,294.5 cm³correct

Dimensions and weights

Length5,707.5 mmcorrect
Width1,966.5 mmcorrect
Wheelbase4,020 mmcorrect
Unladen weight2,060 kgcorrect
Gross vehicle weight3,530 kgcorrect

Drivetrain and chassis

Gears4correct
Wheels4correct
Top speed127 km/hcorrect

Where this model stands

Power-to-weight ratio: 28.2 kW/t (58 kW / 2.1 t)

Stronger than 1% of the trucks over 7.5 t in the register — out of 27,962 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Mercedes Benz 308D have?

The Mercedes Benz 308D delivers 58 kW.

How much does the Mercedes Benz 308D weigh?

The unladen weight is 2,060 kg.

What is the gross vehicle weight of the Mercedes Benz 308D?

3,530 kg.

What engine does the Mercedes Benz 308D have?

4 cylinders, 2,294 cm³ displacement.

How fast does the Mercedes Benz 308D go?

Top speed is 127 km/h.

What are the dimensions of the Mercedes Benz 308D?

5,708 mm × 1,966 mm.

When was the Mercedes Benz 308D built?

Production years: 1985-2000.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 14 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
