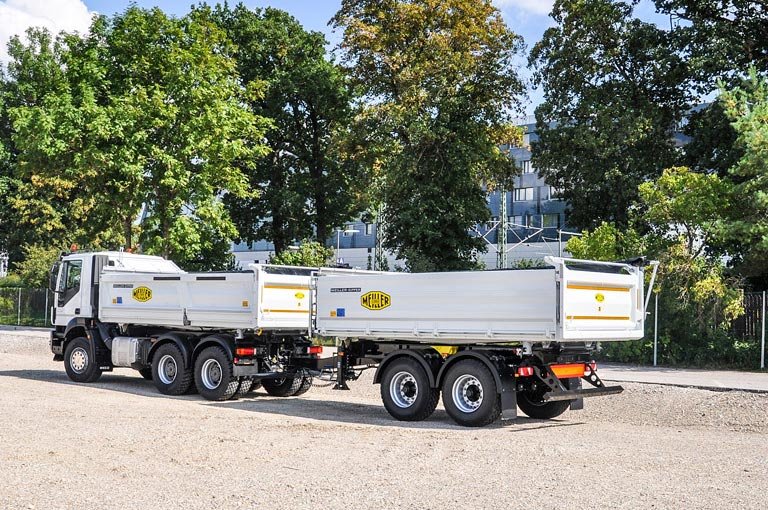

Meiller HKM
Built: 2008-2008 · Series: Other models
More machines from model year 2008
Meiller – other models: the collective page of tipping trailers and semi-trailers outside the named ranges, DMC, HKM, MHKA, MHKS, MHVA, MZDA and TR types, gross weights from 18,000 to 48,000 kg
This page gathers the Meiller trailers the register could not assign to a named range. Meiller specialises in tipper bodies for commercial vehicles; among the models on this collective page the maker's name also appears written out in full as F.X. Meiller. The type codes range from DMC and HKM through the tipping semi-trailer families MHKA, MHKS and MHVA to MZDA and TR, each with an attached axle count and payload class; suffixes such as NOSS or G mark individual equipment levels within these families.
Read on 3 more paragraphs
The register lists here 14 versions with unladen weights from 3,140 to 8,460 kg, gross weights from 18,000 to 48,000 kg, lengths from 7,210 to 12,340 mm and widths from 2,480 to 2,550 mm.
Tippers of this size are the workhorse of earthworks, demolition and recycling: they haul sand, gravel, excavated soil, rubble and asphalt between pit, site and landfill, usually behind their own tractor or ballast unit in a three- or four-axle combination. Many such tippers move on to smaller haulage firms after years of service before finally being scrapped or restored.
On a used purchase, the tightness of the tipping body and the condition of the side-panel locks, the operation and oil level of the tipping ram and hydraulic pump, cracks in the frame around the tipping bearing, axles and braking system, and, on sheeted versions, the condition of the sliding roof all count.
Technical data
Dimensions and weights
| Length | 7,500 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 3,400 mmcorrect |
| Unladen weight | 3,400 kgcorrect |
| Gross vehicle weight | 18,000 kgcorrect |
Drivetrain and chassis
| Wheels | 8correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Meiller HKM weigh?
The unladen weight is 3,400 kg.
What is the gross vehicle weight of the Meiller HKM?
18,000 kg.
Up to what speed is the Meiller HKM approved?
Approved up to 100 km/h.
What are the dimensions of the Meiller HKM?
7,500 mm × 2,550 mm.
When was the Meiller HKM built?
Production years: 2008.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
