Mechtric Y2-315S-6

Series: Other models

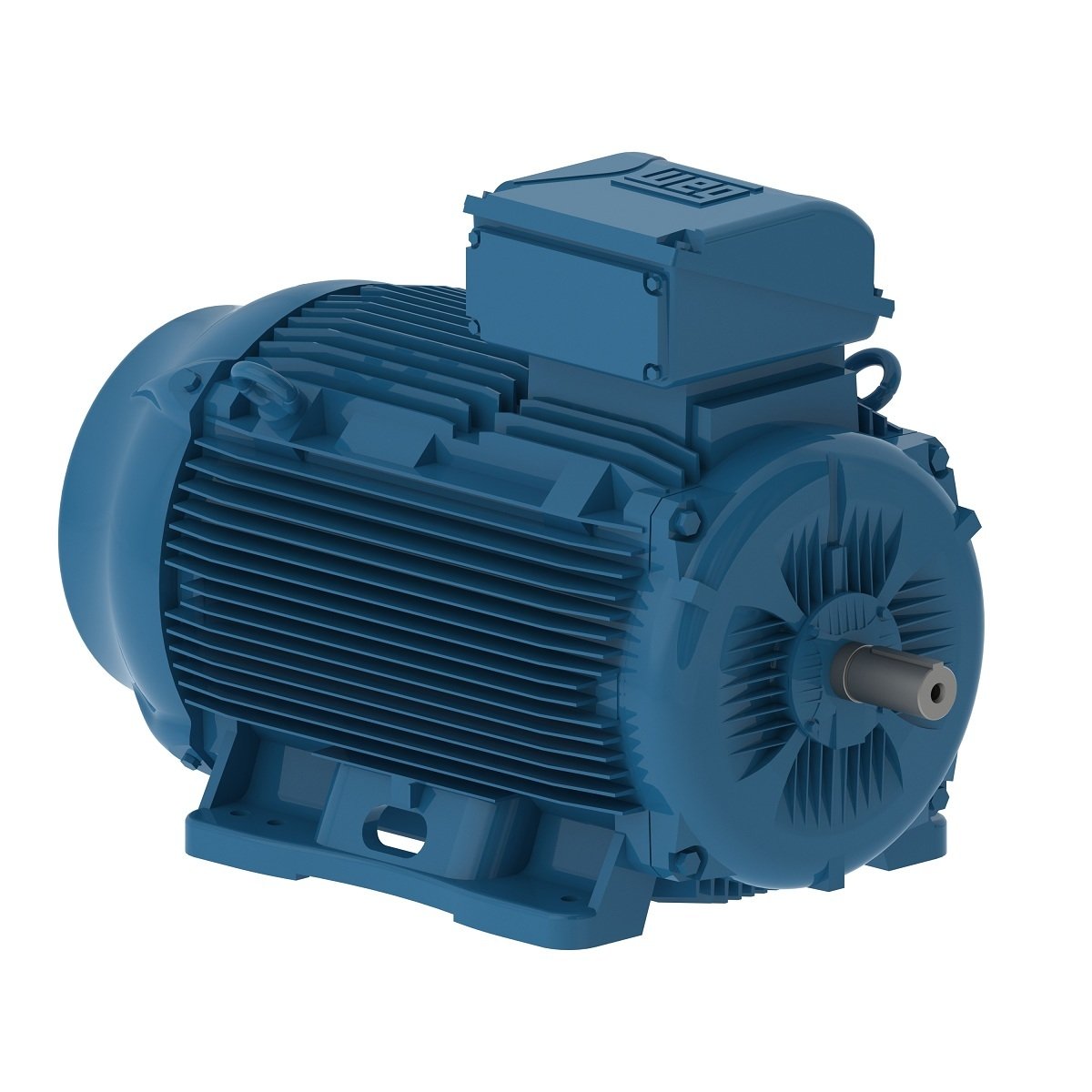

The photo shows the WE315M-4 from the same series. Source: https://www.weg.net/catalog/weg/CI/de//W22-IE3-315-kW-4P-355

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Mechtric lists the Y2-315S-6 as a three-phase induction motor. The rated output is 75 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The rated voltage is 415 V. The housing is frame size 315 S in foot-mounted form. The protection class is IP55. The efficiency is 94.1 per cent at full load, 93.9 per cent at 75 per cent load and 92.6 per cent at half load. The motor weighs 990 kg. At full load it delivers 731 Nm. The motor is built in China. The figures come from the Australian MEPS register under standard AS/NZS 1359.5:2000 (Legacy); measured to AS/NZS 1359.102.3:2000. Rated output across the Mechtric range ranges from 0.75 to 132 kW; the Y2-315S-6 sits in the middle of that range with 75 kW. Its immediate neighbours are the Y2-250M-4 below it with 55 kW and the Y2-280M-4 above it with 90 kW. 98 Mechtric models are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.

Technical data

Engine

Rated output75 kWcorrect

Dimensions and weights

Weight990 kgcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles6correct
Protection classIP55correct
Frame size315 S (foot)correct
Mounting (IEC 60034-7)B3, B5, V5, B6, B7, B8, V6, V1, V3, V18, V19, B35, V15, B35correct
Efficiency at full load94.1 %correct
Efficiency at 75 % load93.9 %correct
Efficiency at half load92.6 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the Mechtric Y2-315S-6 have?

The Mechtric Y2-315S-6 delivers 75 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
