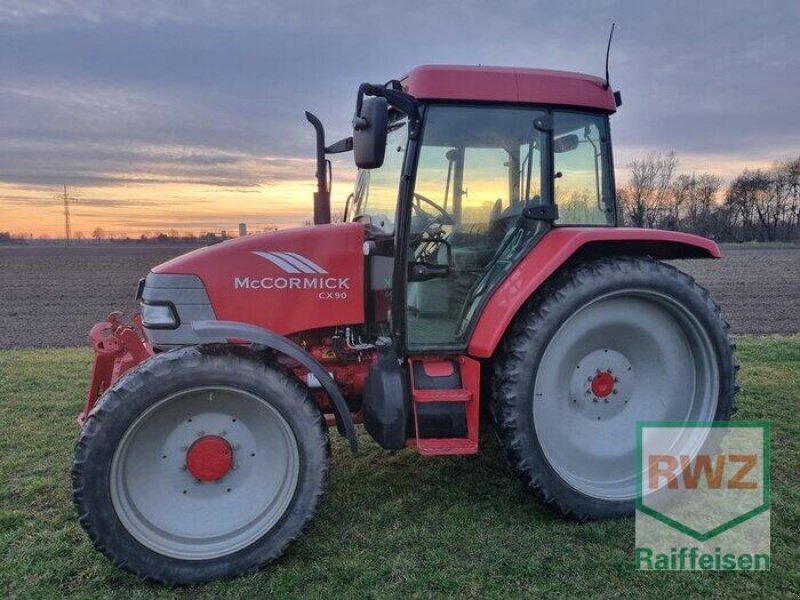

McCormick CX90
Built: 2002-2009 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The McCormick CX90 is a tractor built in 2002-2009. The four-cylinder engine produces 61.9 kW.
Power is transmitted through a Xtrashift (power shuttle); synchronized shuttle gearbox, drive type: MFWD.
It runs on diesel; the engine is water-cooled. This model followed the Case IH CX90, before the McCormick CX90 T3 took over. Within the range, rated power spans from 6.9 to 191 kW; with 61.9 kW, the CX90 sits in the mid-field. Directly alongside are the RX Solis 75 with 56 kW below and the F90N with 62 kW above.
Technical data
Engine
| Engine make | Perkinscorrect |
|---|---|
| Engine model | 1104D-44Tcorrect |
| Fuel | dieselcorrect |
| Power | 83 hp (61.9 kW)correct |
| Cylinders | 4correct |
| Displacement | 268 cu incorrect |
| Bore | 4,134 incorrect |
| Stroke | 5 in (127 mm)correct |
| Turbocharger | turbochargedcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Wheelbase | 92.7 in (2354,6 mm)correct |
|---|---|
| Unladen weight | 8, 311.4 to 8, 465.7 lbscorrect |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|---|
| Gearbox | Xtrashift (power shuttle); synchromesh gearbox shuttlecorrect |
| Forward gears | 24 or 36; 16correct |
| Reverse gears | 24 or 36; 8correct |
Working data
| Lifting capacity | 6, 519 lbs; 9, 038 lbs (optional)correct |
|---|---|
| Fuel tank capacity | 40.9 galcorrect |
| PTO speed | 540/1000; 540/750 (optional)correct |
| Linkage category | Cat IIcorrect |
Origin and approval
| Plant | Doncaster, Englandcorrect |
|---|---|
| Predecessor | Case IH CX90correct |
| Successor | McCormick CX90 T3correct |
Frequently asked questions
How much power does the McCormick CX90 have?
The McCormick CX90 delivers 83 hp.
What engine does the McCormick CX90 have?
4 cylinders, Diesel.
When was the McCormick CX90 built?
Production years: 2002-2009.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
