McCormick CT28HST
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

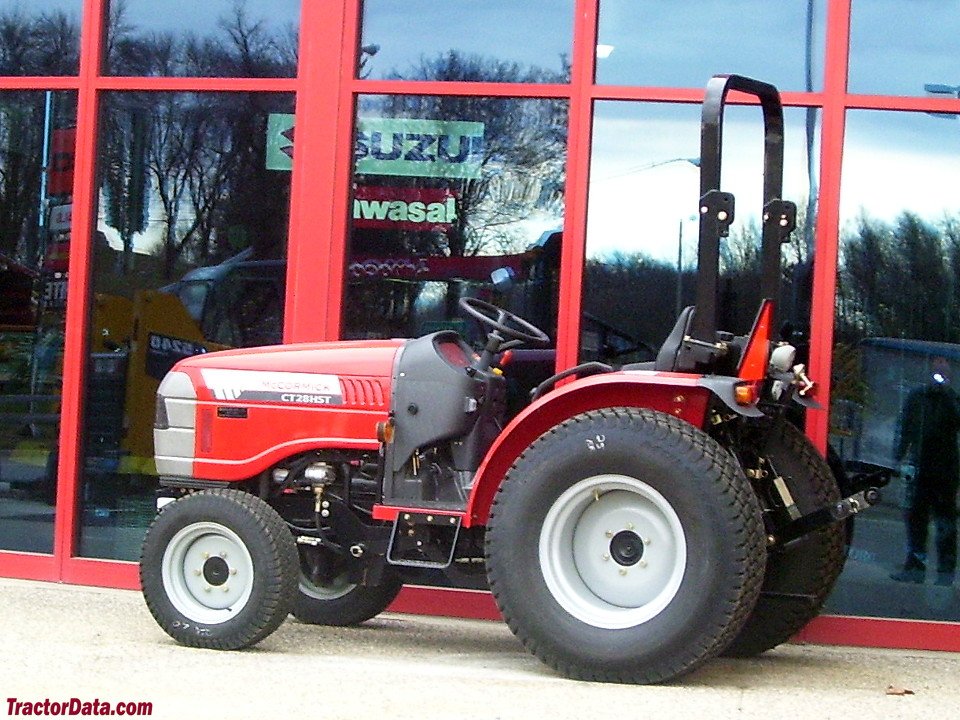

The McCormick CT28HST is a tractor from McCormick. Power comes from a four-cylinder engine; from 1.5 litres it draws 28 hp (21 kW). Rated power arrives at 2,600 rpm — the engine pulls from low down rather than needing to be revved.
Propulsion comes from MFWD. It will not go faster than 25 km/h — a working pace, not a travelling one. Unladen, it tips the scales at 1,200 kg.
It runs on diesel; the engine is water-cooled. Within the range, rated power spans from 9.4 to 55.8 hp; with 28.4 hp, the CT28HST sits in the lower third. Directly alongside are the Cub with 9.4 hp below and the BM with 37 hp above.
McCormick – other models: the collective page of tractors outside the named ranges, from the historic 10-20 and 15-30 and the British B-250 and B-414 to the ARGO ranges C-Max, CX, CT and X, 7 to 191 kW, Perkins, Mitsubishi, Daedong and Yanmar engines
This page gathers the McCormick tractors the register could not assign to a named range – and the name spans a hundred years: Cyrus McCormick's reaper company was the core of International Harvester in 1902, whose 10-20 and 15-30 tractors of the 1920s and British B-250 and B-414 from Doncaster are listed here as McCormick; in 2000 the Italian ARGO group of Fabbrico bought the name together with the Doncaster plant from Case IH and has since built McCormick tractors as Landini's red sister. The type logic of the ARGO era: C-Max and CX are the mid-range of the 2000s (CX105 about 105 hp), CT the compact tractors of Korean and Japanese manufacture with HST as hydrostat, CN the narrow-track models, and since 2010 the X4 to X8 ranges, in which the first digit gives the series and the following ones the power (X7.660 about 165 hp); F and XtraShift mark the orchard version and the powershift. The engines come from Perkins (804 and 1104) in the medium, Mitsubishi, Daedong and Yanmar in the small and FPT and Deutz in the big models.
Read on 3 more paragraphs
The register lists here 225 versions with 6.9 to 191 kW from three- to six-cylinders of 976 to 8,268 cm³, PTO outputs from 22 to 50 hp on the recorded compact models, lift capacities from 1,188 to 10,950 kg, unladen weights from 594 to 10,040 kg, lengths from 2,502 to 5,870 mm and widths from 1,200 to 2,780 mm.
McCormick is today a brand for farms looking for a simple, mechanically robust tractor at a favourable price; the X ranges share technology and cab with the Landini 5 to 7 ranges from the same plant.
On used tractors, originality and engine condition count on the historic models, clutch, shuttle and Perkins engine on the C-Max and CX, hydrostat and front loader on the CT, operating hours, powershift and electronics on the X ranges; parts run through ARGO and the engine makers.
Sources: Kennwerte der Modelle McCormick (weitere Modelle), McCormick (ARGO Tractors, Hersteller)
Technical data
Engine
| Engine make | Mitsubishicorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 28.4 hp (21 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 1,507.6 cm³ (1,500 ci)correct |
| Bore | 78 mmcorrect |
| Stroke | 78.5 mmcorrect |
| Naturally aspirated | naturally aspiratedcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,990 mmcorrect |
|---|---|
| Ground clearance | 330.2correct |
| Unladen weight | 1,200 kgcorrect |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|---|
| Gearbox type | HST 3 rangecorrect |
| Top speed | 25.4 km/hcorrect |
| Turning radius | 2,560 mmcorrect |
Working data
| Lifting capacity | 1,188 kgcorrect |
|---|---|
| Pump flow | 30.3 l/mincorrect |
| Fuel tank capacity | 32.2 lcorrect |
Origin and approval
| Plant | South Koreacorrect |
|---|
Other data
| Cab height | 2,316.5correct |
|---|---|
| PTO output | 22 hpcorrect |
| System voltage | 12 Vcorrect |
Where this model stands
Power-to-weight ratio: 17.5 kW/t (21 kW / 1.2 t)
Power class: Compact (< 40 hp)
Stronger than 16% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the McCormick CT28HST have?
The McCormick CT28HST delivers 28.4 hp.
How much does the McCormick CT28HST weigh?
The unladen weight is 1,200 kg.
What engine does the McCormick CT28HST have?
4 cylinders, 1,508 cm³ displacement, diesel.
How fast does the McCormick CT28HST go?
Top speed is 25.4 km/h.
What is the PTO output of the McCormick CT28HST?
PTO output is 22 hp.
How much does the rear linkage of the McCormick CT28HST lift?
The rear linkage lifts 1,188 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
