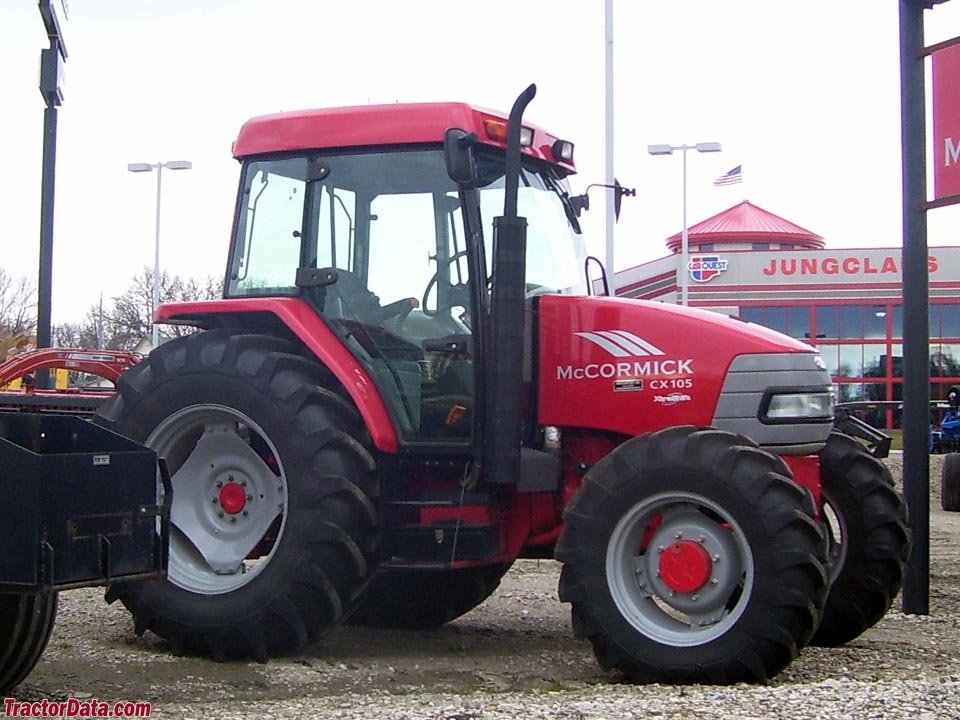

McCormick CX105 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The McCormick CX105 is a tractor from the McCormick 4WD Tractor series. Power comes from a four-cylinder engine; from 4.4 litres it draws 103 hp (76.1 kW). Rated speed is 2,200 rpm.
It will not go faster than 40 km/h — a working pace, not a travelling one. Unladen, it tips the scales at 3,770 kg.
Within the range, rated power spans from 28.4 to 194 hp; with 103 hp, the CX105 sits in the mid-field. Directly alongside are the C105 Max with 100 hp below and the MTX120 with 116 hp above.
Technical data
Engine
| Power | 103.4 hp (76.1 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,401.6 cm³correct |
| Aspiration | wastegate turbochargercorrect |
Dimensions and weights
| Unladen weight | 3,770 kgcorrect |
|---|
Drivetrain and chassis
| Gearbox type | xtrashift powershift transmission/power shuttlecorrect |
|---|---|
| Forward gears | 24correct |
| Reverse gears | 24correct |
| Tyre size | front 12.4R24 rear 16.9R34correct |
| Top speed | 40.1 km/hcorrect |
Working data
| Pump flow | 60.2 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 37.1 lcorrect |
| Fuel tank capacity | 155.2 lcorrect |
Other data
| Height | 2,542correct |
|---|
Where this model stands
Power-to-weight ratio: 20.2 kW/t (76 kW / 3.8 t)
Power class: Large (100–180 hp)
Stronger than 70% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the McCormick CX105 have?
The McCormick CX105 delivers 103 hp.
How much does the McCormick CX105 weigh?
The unladen weight is 3,770 kg.
What engine does the McCormick CX105 have?
4 cylinders, 4,402 cm³ displacement.
How fast does the McCormick CX105 go?
Top speed is 40.1 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
