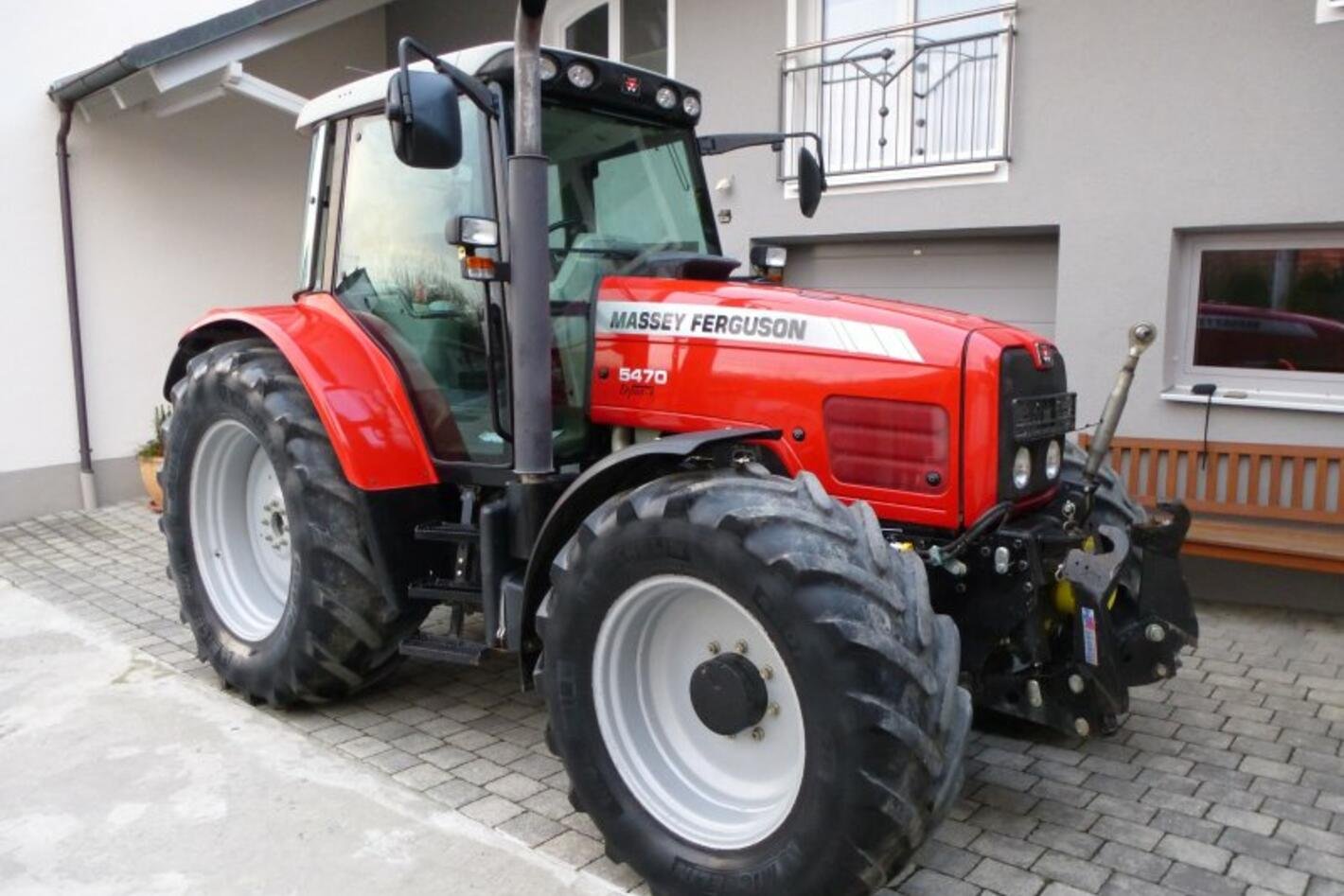

Massey Ferguson MF 5470 (4070 kg) 2WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Massey Ferguson MF 5470 is a tractor from the Massey Ferguson 2WD Tractor series. The engine draws 127 hp (93.2 kW) from 4.4 litres. Rated speed is 2,200 rpm.
Top speed is 40 km/h. Unladen weight is 4,070 kg. Wheelbase is 2.67 m.
Within the range, rated power spans from 59.9 to 132 hp; with 127 hp, the MF 5470 sits at the top. Directly alongside are the MF 5465 with 122 hp below and the MF 475 with 132 hp above.
Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins, AGCO Power, Iseki and Simpson engines
This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.
Read on 3 more paragraphs
The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.
By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.
Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.
Sources: Kennwerte der Modelle Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Engine model | 44DTAcorrect |
|---|---|
| Power | 126.7 hp (93.2 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 540correct |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,401.6 cm³correct |
| Aspiration | turbocharged intercooledcorrect |
Dimensions and weights
| Length | 4,350 mmcorrect |
|---|---|
| Width | 1,991 mmcorrect |
| Height | 2,820 mmcorrect |
| Wheelbase | 2,670correct |
| Unladen weight | 4,070 kgcorrect |
Drivetrain and chassis
| Gearbox | 16V/16Rcorrect |
|---|---|
| Gearbox type | Dyna-4 semi-powershift transmission gearboxcorrect |
| Forward gears | 16correct |
| Reverse gears | 16correct |
| Top speed | 40.1 km/hcorrect |
| Turning radius | 3,870 mmcorrect |
Working data
| Lifting capacity | 5,000 kgcorrect |
|---|---|
| Pump flow | 57.2 l/mincorrect |
| Fuel tank capacity | 150.3 lcorrect |
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
More machines with this engine (SISU 44DTA, 11)
Where this model stands
Power-to-weight ratio: 22.9 kW/t (93 kW / 4.1 t)
Power class: Large (100–180 hp)
Stronger than 77% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson MF 5470 have?
The Massey Ferguson MF 5470 delivers 127 hp.
How much does the Massey Ferguson MF 5470 weigh?
The unladen weight is 4,070 kg.
What engine does the Massey Ferguson MF 5470 have?
4 cylinders, 4,402 cm³ displacement.
How fast does the Massey Ferguson MF 5470 go?
Top speed is 40.1 km/h.
How much does the rear linkage of the Massey Ferguson MF 5470 lift?
The rear linkage lifts 5,000 kg.
What are the dimensions of the Massey Ferguson MF 5470?
4,350 mm × 1,991 mm × 2,820 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
