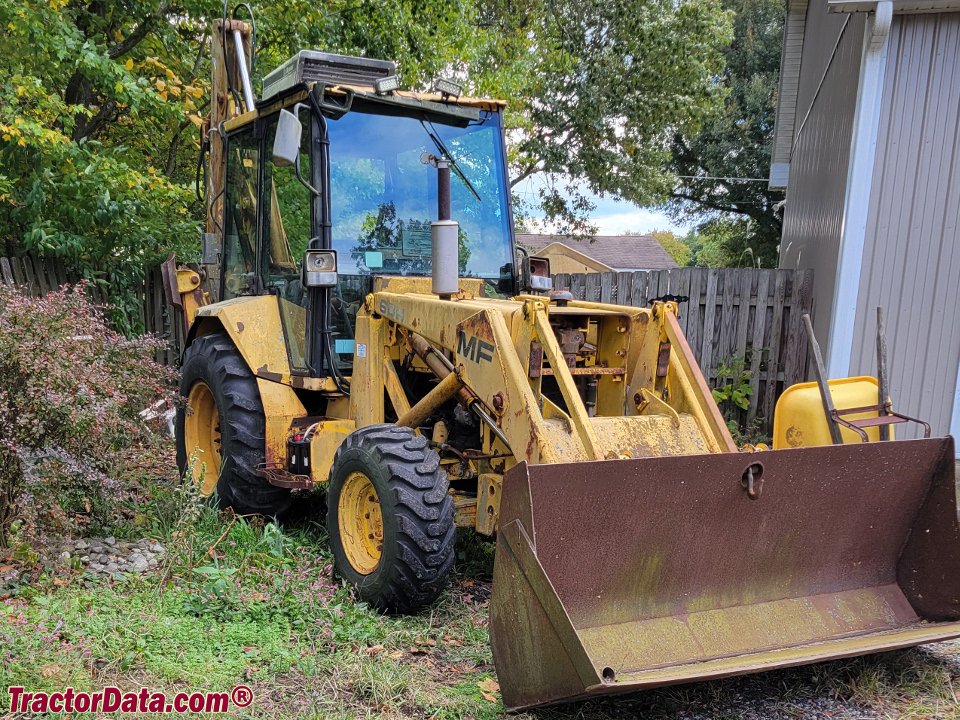

Massey Ferguson 60H
Series: Massey Ferguson Loader Backhoe
The Massey Ferguson 60H is a model in the Massey Ferguson Loader Backhoe series. The engine delivers 78.1 hp (57.4 kW), has 4 cylinders, with a displacement of 4,100 cm³. The engine comes from Perkins. Rated speed is 2,000 rpm. The wheelbase measures 2,182.4 mm. Ground clearance is 341.4 mm. The tank holds 81 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 124.9 l/min. The hydraulic tank holds 71.9 litres. Working pressure is 189.6 bar. The cooling system holds 15.9 litres. The electrical system runs on 12 V. The engine fitted is the A4,248. The Massey Ferguson Loader Backhoe series covers 6 models. Rated output within it ranges from 68.4 to 78.1 hp; the 60H sits at the top of that range with 78.1 hp. Its immediate neighbours are the 50C below it with 68.4 hp. 1491 Massey Ferguson models across 50 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.
Technical data
Engine
| Engine make | Perkinscorrect |
|---|---|
| Engine model | A4.248correct |
| Power | 78.1 hp (57.4 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,100 cm³correct |
| Coolant capacity | 15.9 lcorrect |
Dimensions and weights
| Wheelbase | 2,182.4correct |
|---|---|
| Ground clearance | 341.4correct |
Drivetrain and chassis
| Gearbox type | Power shuttlecorrect |
|---|---|
| Forward gears | 4correct |
| Reverse gears | 4correct |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 124.9 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 71.9 lcorrect |
| Hydraulic pressure | 189.6correct |
| Fuel tank capacity | 81 lcorrect |
Frequently asked questions
How much power does the Massey Ferguson 60H have?
The Massey Ferguson 60H delivers 78.1 hp.
What engine does the Massey Ferguson 60H have?
4 cylinders, 4,100 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
