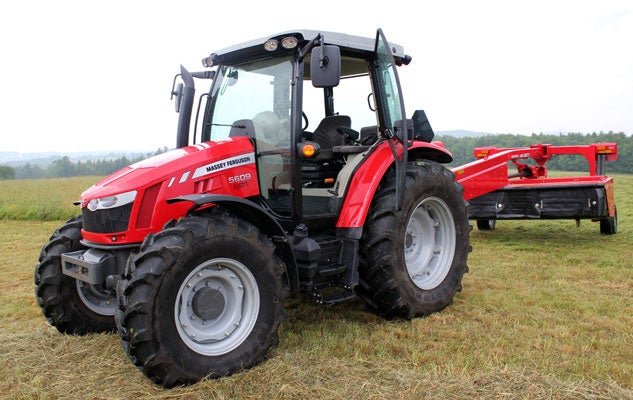

Massey Ferguson 5609 (67.1 kW) 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Massey Ferguson 5609 belongs to the Massey Ferguson 4WD Tractor series. 91 hp (67.1 kW) is what the three-cylinder engine gets out of 3.3 litres.
It will not go faster than 26 km/h — a working pace, not a travelling one. It measures 4.25 m in length. Wheelbase is 2.47 m.
Within the range, rated power spans from 10.2 to 375 hp; with 91.2 hp, the 5609 sits in the mid-field. Directly alongside are the 593 with 90.2 hp below and the 3645 with 92.3 hp above.
Technical data
Engine
| Engine make | 33 AWI HDcorrect |
|---|---|
| Engine model | AGCO Powercorrect |
| Power | 91.2 hp (67.1 kW)correct |
| Cylinders | 3correct |
| Displacement | 3,300.4 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Length | 4,253.2correct |
|---|---|
| Wheelbase | 2,467.1correct |
Drivetrain and chassis
| Gearbox type | Dyna-4 transmission with speed matchingcorrect |
|---|---|
| Top speed | 25.7 km/hcorrect |
Working data
| Lifting capacity | 3,220 kgcorrect |
|---|---|
| Pump flow | 56.8 l/mincorrect |
| Fuel tank capacity | 159 lcorrect |
| PTO output | 70 hpcorrect |
Other data
| Cab height | 2,755.4correct |
|---|
Frequently asked questions
How much power does the Massey Ferguson 5609 have?
The Massey Ferguson 5609 delivers 91.2 hp.
What engine does the Massey Ferguson 5609 have?
3 cylinders, 3,300 cm³ displacement.
How fast does the Massey Ferguson 5609 go?
Top speed is 25.7 km/h.
What is the PTO output of the Massey Ferguson 5609?
PTO output is 70 hp.
How much does the rear linkage of the Massey Ferguson 5609 lift?
The rear linkage lifts 3,220 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
