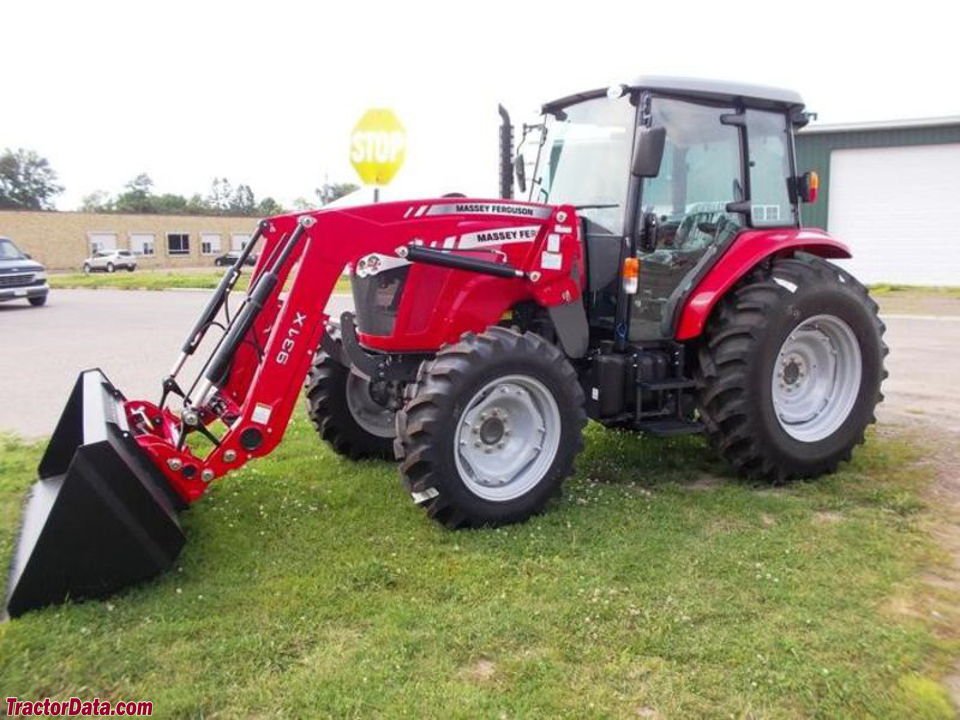

Massey Ferguson 4610 Utility
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Massey Ferguson 4610 is a tractor from the Massey Ferguson Utility Tractor series. Power comes from a three-cylinder engine; from 3.3 litres it draws 100 hp (73.8 kW). Rated speed is 2,200 rpm.
It measures 3.88 m in length and 2 m in width. Wheelbase is 2.25 m.
Within the range, rated power spans from 39 to 101 hp; with 100 hp, the 4610 sits at the top. Directly alongside are the MF4709 with 91.2 hp below and the MF4710 with 101 hp above.
Technical data
Engine
| Engine make | AGCO POWERcorrect |
|---|---|
| Engine model | 33 AWICcorrect |
| Power | 100.4 hp (73.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 3,300.4 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Length | 3,875correct |
|---|---|
| Width | 2,002.5correct |
| Wheelbase | 2,252.5correct |
Drivetrain and chassis
| Gearbox type | 12F x 12R Power shuttlecorrect |
|---|
Working data
| Pump flow | 89.7 l/mincorrect |
|---|---|
| Fuel tank capacity | 102.2 lcorrect |
Frequently asked questions
How much power does the Massey Ferguson 4610 have?
The Massey Ferguson 4610 delivers 100 hp.
What engine does the Massey Ferguson 4610 have?
3 cylinders, 3,300 cm³ displacement.
What are the dimensions of the Massey Ferguson 4610?
3,875 mm × 2,002 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
