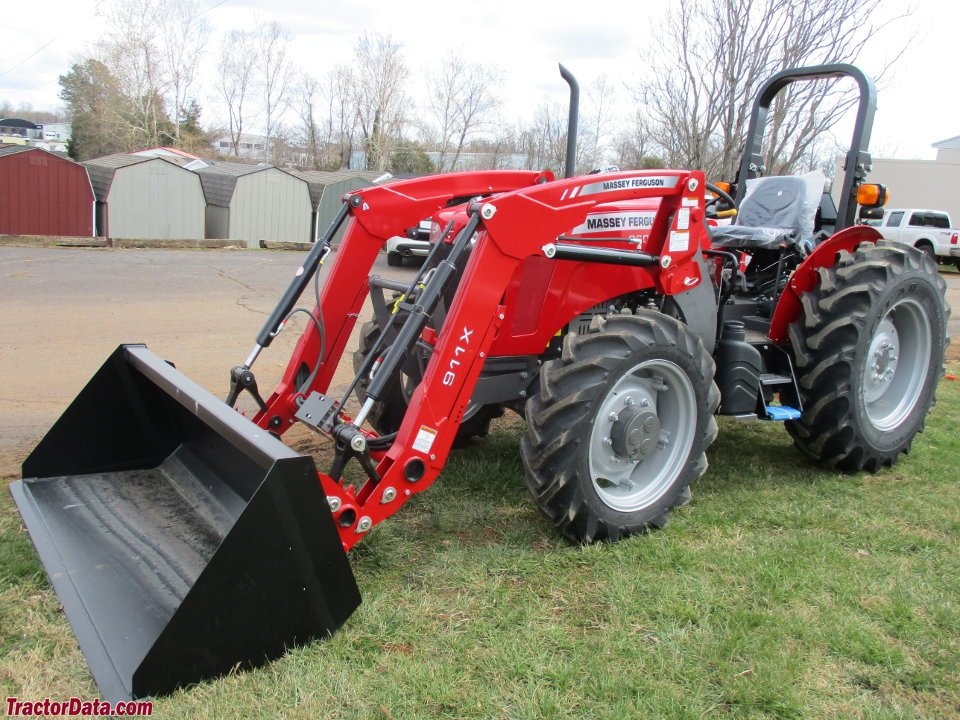

Massey Ferguson 2605H Utility
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Massey Ferguson 2605H belongs to the Massey Ferguson Utility Tractor series. Under the bonnet works a three-cylinder engine displacing 2.6 litres, producing 56 hp (41 kW). With a rated speed of 2,000 rpm, it is built for pulling power, not for revving.
Dimensions are 3.53 m by 1.69 m. Wheelbase is 2.05 m.
Within the range, rated power spans from 39 to 101 hp; with 55.8 hp, the 2605H sits in the mid-field. Directly alongside are the 543 with 52.7 hp below and the 2706E with 58.1 hp above.
Technical data
Engine
| Engine make | Simpsoncorrect |
|---|---|
| Engine model | 2605Hcorrect |
| Power | 55.8 hp (41 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,600.6 cm³correct |
| Aspiration | Naturalcorrect |
Dimensions and weights
| Length | 3,526correct |
|---|---|
| Width | 1,691.6correct |
| Height | 2,320 mmcorrect |
| Wheelbase | 2,051.3correct |
Drivetrain and chassis
| Forward gears | 8correct |
|---|---|
| Reverse gears | 2correct |
Working data
| Pump flow | 59.8 l/mincorrect |
|---|---|
| Fuel tank capacity | 55.3 lcorrect |
| PTO output | 46 hpcorrect |
| PTO speed | 540correct |
Frequently asked questions
How much power does the Massey Ferguson 2605H have?
The Massey Ferguson 2605H delivers 55.8 hp.
What engine does the Massey Ferguson 2605H have?
3 cylinders, 2,601 cm³ displacement.
What is the PTO output of the Massey Ferguson 2605H?
PTO output is 46 hp. PTO speeds: 540 rpm.
What are the dimensions of the Massey Ferguson 2605H?
3,526 mm × 1,692 mm × 2,320 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
