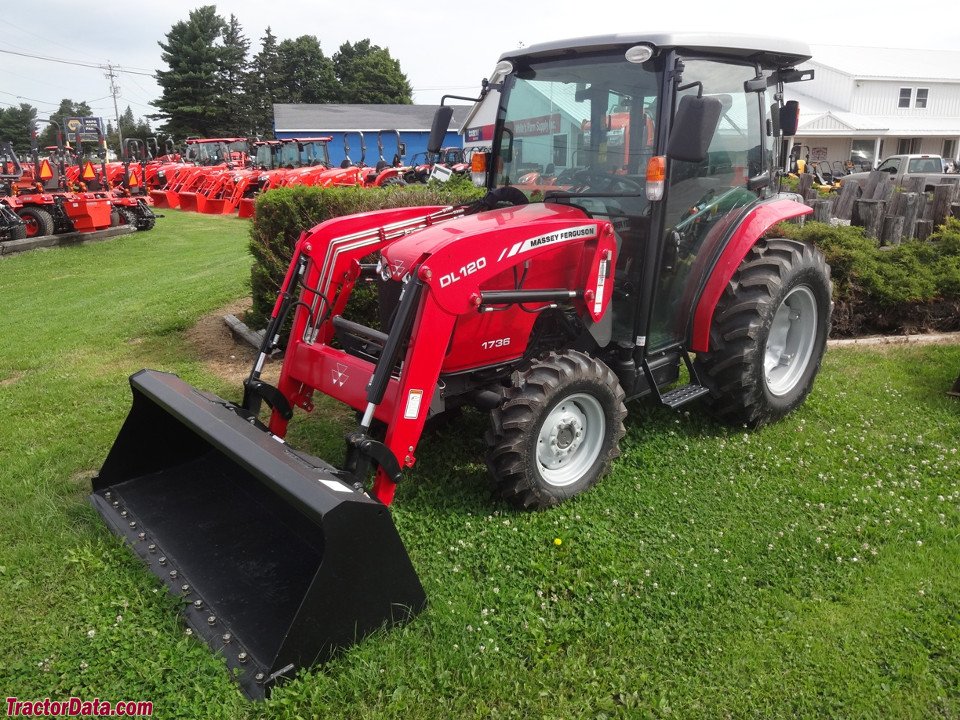

Massey Ferguson 1736 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Massey Ferguson 1736 belongs to the Massey Ferguson 4WD Tractor series. 37 hp (27 kW) is what the three-cylinder engine gets out of 1.7 litres. Rated output is reached at 2,500 rpm, so it works in the lower rev range.
Overall length is 3.10 m. Wheelbase is 1.77 m.
The engine is water-cooled. Within the range, rated power spans from 10.2 to 375 hp; with 36.7 hp, the 1736 sits at the bottom end. Directly alongside are the 1734E with 34.5 hp below and the 1739E with 39 hp above.
Technical data
Engine
| Engine model | 1,736correct |
|---|---|
| Fuel | dieselcorrect |
| Power | 36.7 hp (27 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,701 cm³correct |
| Aspiration | turbochargedcorrect |
| Cooling | liquid-cooledcorrect |
Dimensions and weights
| Length | 3,100.1correct |
|---|---|
| Wheelbase | 1,770.1correct |
Drivetrain and chassis
| Gearbox type | 12 X 12 power shuttlecorrect |
|---|
Working data
| Hydraulic oil capacity | 43.9 lcorrect |
|---|---|
| Fuel tank capacity | 40.1 lcorrect |
Other data
| Height | 2,322.6correct |
|---|
Frequently asked questions
How much power does the Massey Ferguson 1736 have?
The Massey Ferguson 1736 delivers 36.7 hp.
What engine does the Massey Ferguson 1736 have?
3 cylinders, 1,701 cm³ displacement, Diesel.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
