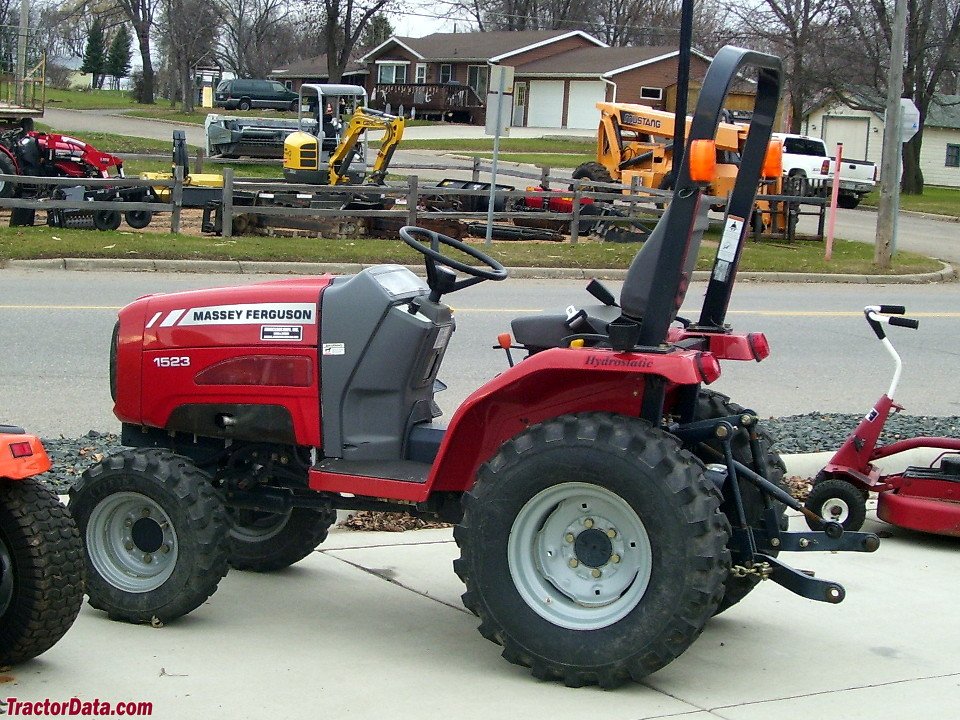

Massey Ferguson 1523 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Massey Ferguson 1523 belongs to the Massey Ferguson 4WD Tractor series. Under the bonnet works a three-cylinder engine displacing 1.1 litres, producing 23 hp (16.8 kW). With a rated speed of 2,600 rpm, it is built for pulling power, not for revving.
Empty, it weighs 695 kg.
Within the range, rated power spans from 10.2 to 375 hp; with 22.8 hp, the 1523 sits at the bottom end. Directly alongside are the 1540 with 10.2 hp below and the 1726E with 24.3 hp above.
Technical data
Engine
| Power | 22.8 hp (16.8 kW)correct |
|---|---|
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,122.5 cm³correct |
Dimensions and weights
| Ground clearance | 265.2correct |
|---|---|
| Unladen weight | 694.9 kgcorrect |
Drivetrain and chassis
| Forward gears | 6correct |
|---|---|
| Reverse gears | 2correct |
Working data
| Pump flow | 30.7 l/mincorrect |
|---|---|
| Fuel tank capacity | 25.4 lcorrect |
Other data
| Height | 1,956.8correct |
|---|
Where this model stands
Power-to-weight ratio: 24.2 kW/t (17 kW / 0.7 t)
Power class: Compact (< 40 hp)
Stronger than 10% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson 1523 have?
The Massey Ferguson 1523 delivers 22.8 hp.
How much does the Massey Ferguson 1523 weigh?
The unladen weight is 695 kg.
What engine does the Massey Ferguson 1523 have?
3 cylinders, 1,122 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
