Marathon 225MTFC0306E3

Series: Other models

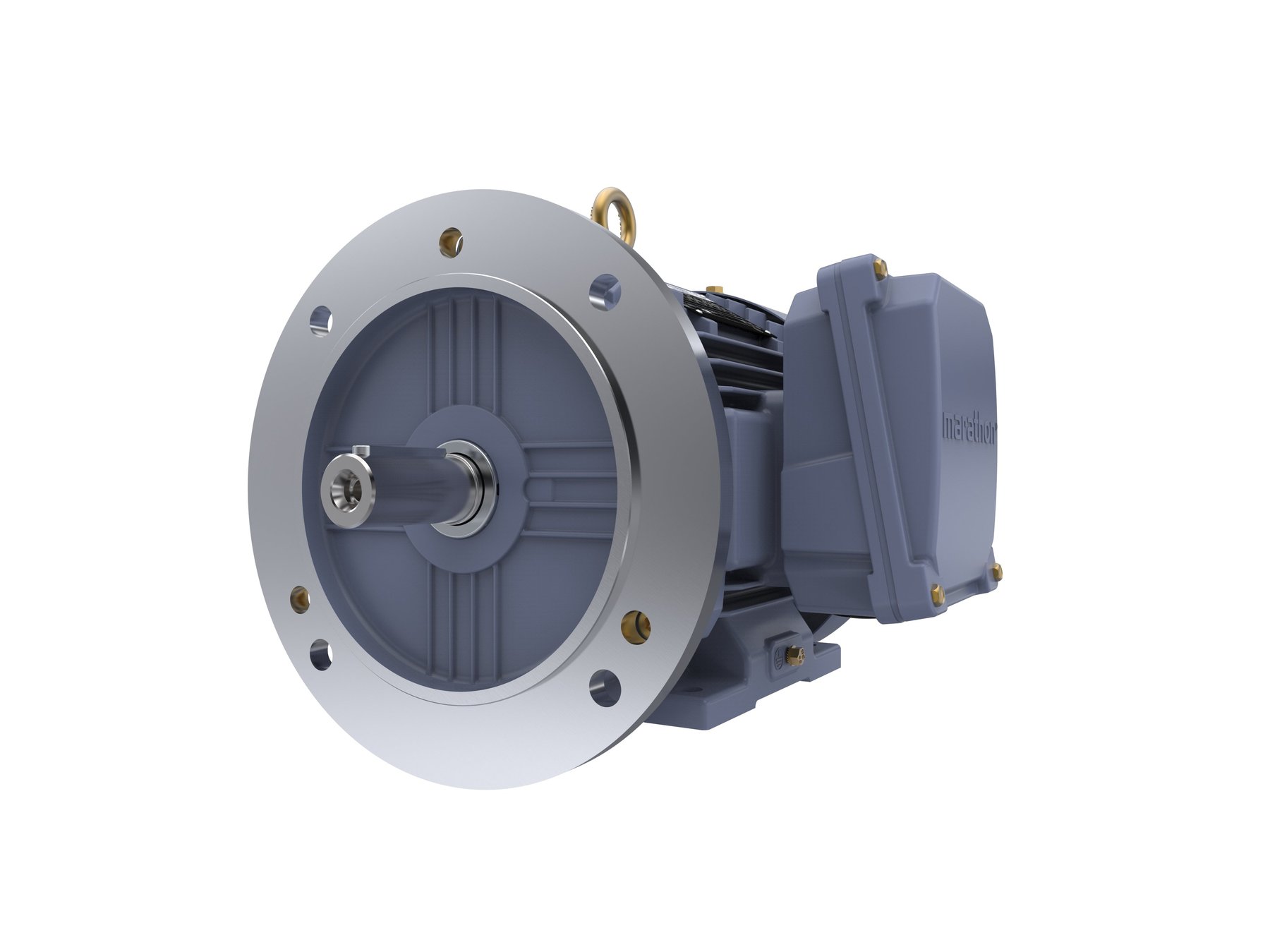

The photo shows the TC_P753AZ1_ from the same series. Source: https://www.marathonelectric.in/product/TCAP753A3133GACD01

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 225MTFC0306E3 from Marathon is a three-phase induction motor. The rated output is 30 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The rated voltage is 415 V. The housing is frame size 225 M in foot-mounted form. The protection class is IP55. The efficiency is 92.8 per cent at full load, 94.1 per cent at 75 per cent load and 93.4 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5, B35, V1, B14 and B34. The motor is built in China. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to AS/NZS 1359.102.3:2000. Rated output across the Marathon range ranges from 0.75 to 160 kW; the 225MTFC0306E3 sits in the lower part of that range with 30 kW. Its immediate neighbours are the XGA200LB6 below it with 22 kW and the 200LTFC0372-AU above it with 37 kW. 498 Marathon models across 2 series are on record. The model is listed under Electric motors. 23 verified figures from 1 source are on file.

Technical data

Engine

Rated output30 kWcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles6correct
Protection classIP55correct
Frame size225 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B35, V1, B14, B34correct
Efficiency at full load92.85 %correct
Efficiency at 75 % load94.1 %correct
Efficiency at half load93.4 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedAS/NZS 1359.5:2004correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the Marathon 225MTFC0306E3 have?

The Marathon 225MTFC0306E3 delivers 30 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
