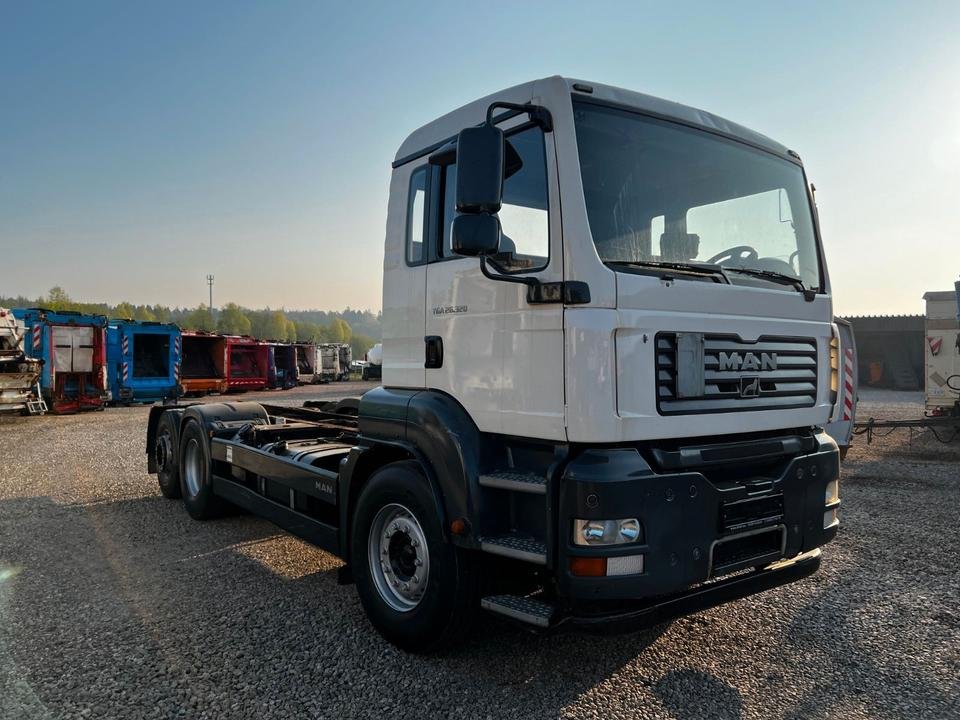

MAN 26.320 6X2LL
Built: 2014-2014 · Series: TGS
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
MAN TGS — heavy class, read the same way as TGL and TGM
The TGS follows the same rule as its smaller siblings: gross vehicle weight in tonnes before the dot, engine output in horsepower after it. A TGS 18.440 is rated at 18 tonnes and delivers 440 hp. Anyone who knows the TGL or TGM has nothing new to learn — only the class is different.
Read on 4 more paragraphs
The four abbreviations together form MAN's Trucknology Generation: TGL for the light class, TGM for the medium, TGS for the heavy and TGX for the heavy long-haul class. TGS and TGX share their engineering largely; what separates them is the cab and the layout. The TGS is the worker, the TGX the traveller.
The practical dividing line follows from that. Anyone running construction, tipper, silo, hooklift or heavy distribution work ends up with the TGS. Anyone sleeping in the vehicle night after night is better served by the TGX. Between the two it is not power that decides but the cab and frame design.
The axle configuration usually stands right after the type number: 4x2, 6x2, 6x4, 8x4. It says how many wheels there are and how many of them are driven. For site work it is the single most important figure — an 8x4 reaches places where a 4x2 stops, regardless of horsepower.
For used purchases the rule of all commercial vehicles applies: the type number gives weight and power but no year. Two TGS 18.440 can be a decade apart in emissions stage, gearbox and equipment. What decides is first registration and emissions standard.
Sources: MAN: Guidelines for Fitting Bodies TGS/TGX, MAN Trucknology Generation TGS/TGX
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 10,518 cm³correct |
Dimensions and weights
| Length | 11,670 mmcorrect |
|---|---|
| Width | 2,540 mmcorrect |
| Wheelbase | 7,200 mmcorrect |
| Unladen weight | 11,600 kgcorrect |
| Gross vehicle weight | 26,000 kgcorrect |
Drivetrain and chassis
| Wheels | 8correct |
|---|
Frequently asked questions
How much does the MAN 26.320 6X2LL weigh?
The unladen weight is 11,600 kg.
What is the gross vehicle weight of the MAN 26.320 6X2LL?
26,000 kg.
What engine does the MAN 26.320 6X2LL have?
6 cylinders, 10,518 cm³ displacement.
What are the dimensions of the MAN 26.320 6X2LL?
11,670 mm × 2,540 mm.
When was the MAN 26.320 6X2LL built?
Production years: 2014.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
