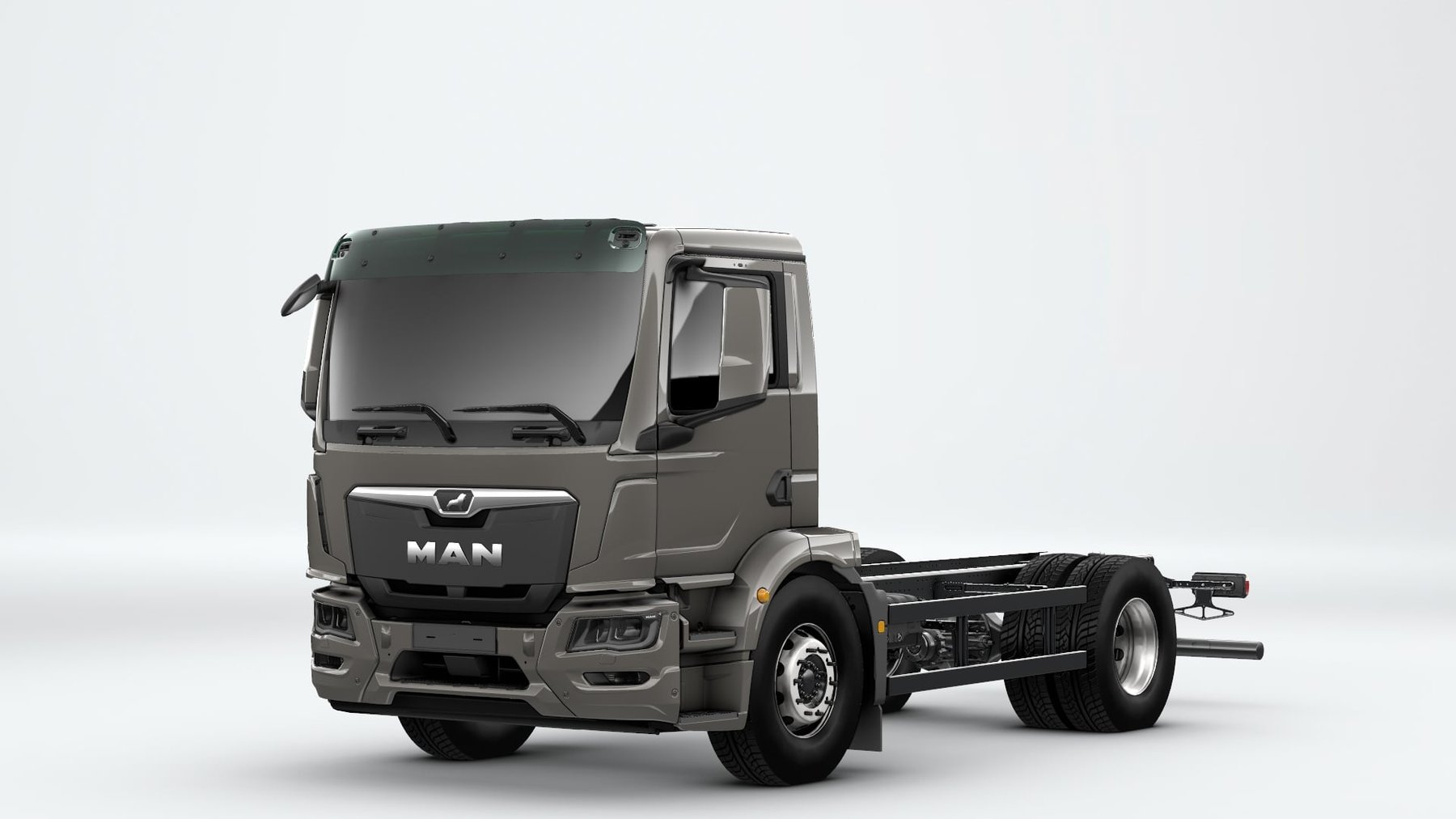

MAN 18.290 4X4 BB EEV
Built: 2010-2010 · Series: TGM
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
MAN TGM — the class above the TGL, read the same way
The TGM reads like its smaller sibling: gross vehicle weight in tonnes before the dot, engine output in horsepower after it. A TGM 18.290 is rated at 18 tonnes and delivers 290 hp. Anyone who knows the TGL knows the TGM's system too.
Read on 3 more paragraphs
Together the TGL and TGM cover roughly 7.5 to 26 tonnes — distribution work in cities and regions plus lighter construction duty. The TGM is the heavier half: where the TGL ends at around 12 tonnes, its working range begins.
The difference is not only weight. The TGM is designed for bodies and duties demanding more frame rigidity — tippers, cranes, municipal bodies. Anyone planning a body should therefore establish early which class will carry it; a more powerful TGL does not replace a TGM.
For used purchases the same applies as with the TGL: the type number gives weight and power but says nothing about the year. Two vehicles with identical designations can be a decade apart in emissions stage and equipment. What matters is first registration and emissions standard, not the number on the cab.
Sources: MAN, specgo, LECTURA Specs
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 6,871 cm³correct |
Dimensions and weights
| Length | 7,500 mmcorrect |
|---|---|
| Width | 2,540 mmcorrect |
| Wheelbase | 4,200 mmcorrect |
| Unladen weight | 12,550 kgcorrect |
| Gross vehicle weight | 17,500 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|
Frequently asked questions
How much does the MAN 18.290 4X4 BB EEV weigh?
The unladen weight is 12,550 kg.
What is the gross vehicle weight of the MAN 18.290 4X4 BB EEV?
17,500 kg.
What engine does the MAN 18.290 4X4 BB EEV have?
6 cylinders, 6,871 cm³ displacement.
What are the dimensions of the MAN 18.290 4X4 BB EEV?
7,500 mm × 2,540 mm.
When was the MAN 18.290 4X4 BB EEV built?
Production years: 2010.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
