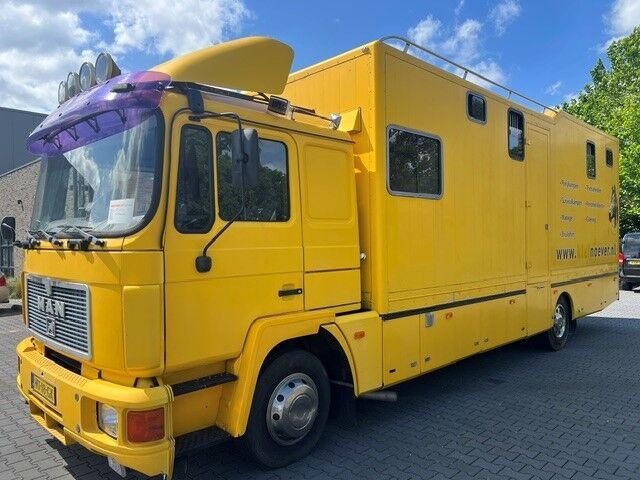

MAN 12.192 FL
Built: 1996-1996 · Series: 12.192
More machines from model year 1996
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
MAN 12.192 – classic distribution truck of the 12-tonne class with about 192 hp: six-cylinders from 6,590 to 6,871 cm³, gross vehicle weights from 11,920 to 12,800 kg, lengths up to 10,300 mm
The 12.192 follows the same type logic as the 10.153: the first number gives the nominal 12-tonne weight class, the second the engine power of about 192 hp. Unlike the lighter 10.153, MAN uses six-cylinders throughout here. The versions carried in the register range from the base 12.192 F through the suffixes F-M and F-V to chassis with different wheelbases and the version 12.(192) FL-(B)L-12,8/515.
Read on 3 more paragraphs
The register lists here 8 versions with displacements from 6,590 to 6,871 cm³, throughout six-cylinders, unladen weights from 5,840 to 9,620 kg at gross vehicle weights from 11,920 to 12,800 kg, lengths from 7,700 to 10,300 mm and widths from 2,500 to 2,550 mm.
At around 12 tonnes gross vehicle weight, this class sat between the lighter distribution trucks and the heavy long-haul machines, and was used above all for box bodies, dropsides and municipal purposes, where it competed with the corresponding classes from Mercedes-Benz and Volvo.
On a used example of these older chassis, rust on the frame and brake lines counts, along with the condition of the clutch and gearbox, the seal of the engine and injection pump, and any fitted body and its mounting to the frame; parts are now only available through specialist dealers for classic MAN commercial vehicles.
Sources: Kennwerte der Modelle MAN 12.192, MAN Truck & Bus (Hersteller)
Technical data
Engine
| Cylinders | 6correct |
|---|
Dimensions and weights
| Length | 8,300 mmcorrect |
|---|---|
| Width | 2,520 mmcorrect |
| Wheelbase | 4,750 mmcorrect |
| Unladen weight | 8,442 kgcorrect |
| Gross vehicle weight | 11,920 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|
Frequently asked questions
How much does the MAN 12.192 FL weigh?
The unladen weight is 8,442 kg.
What is the gross vehicle weight of the MAN 12.192 FL?
11,920 kg.
What engine does the MAN 12.192 FL have?
6 cylinders.
What are the dimensions of the MAN 12.192 FL?
8,300 mm × 2,520 mm.
When was the MAN 12.192 FL built?
Production years: 1996.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
