Lovol 1004D-4TA74
Built: 2011-2011 · Series: Other models
More machines from model year 2011
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Lovol – other nonroad diesel engines: the collective page of the 1004D/1006D range in model year 2011 outside the named models, 60 to 115 kW, Tier 3
Lovol is the engine and farm-machinery brand of the Chinese Foton Lovol group; under this plain brand name – without the addition of the Tianjin plant location – the company certifies with the US EPA the same base range of four- and six-cylinder diesel engines. The certifications listed here come uniformly from model year 2011 and thus mark an early generation of the 1004D/1006D range under the Tier 3 standard.
Read on 3 more paragraphs
The register lists here 9 versions with 60 to 115 kW rated output at 2,200 to 2,300 rpm, from four- to six-cylinders with a constant 100 mm bore and 127 mm stroke. Maximum torque ranges from 320 to 610 Nm at 1,500 to 1,600 rpm. All engines have waste-gate turbocharging and direct injection, run on low-sulphur diesel (300 to 500 ppm) and are certified to Tier 3; the 75 to under 130 kW power category forms the majority with 5 of 9 versions.

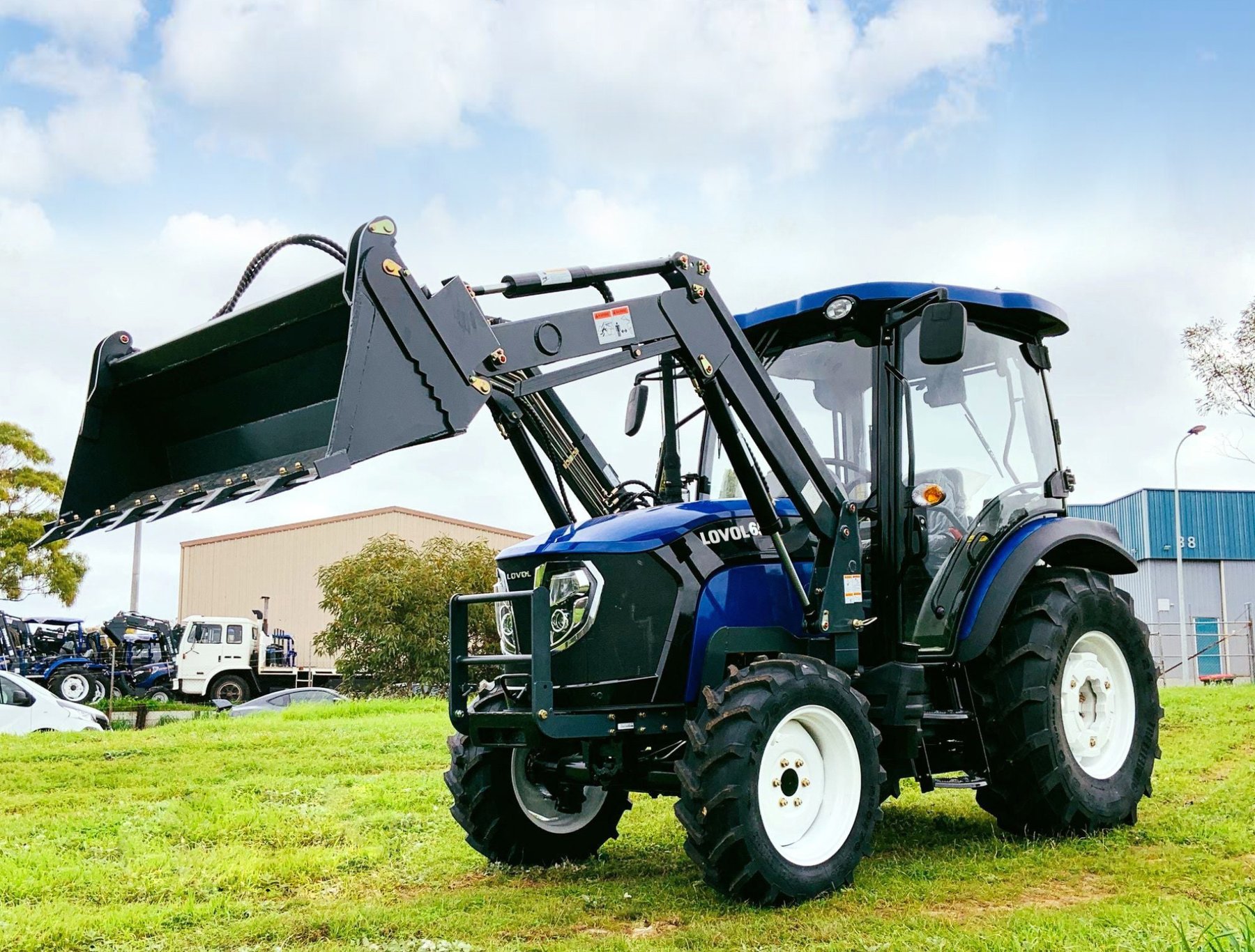

As an early, model-year-2011-certified version of the 1004D/1006D range, these engines drive medium-size tractors, wheel loaders and excavators as well as generator sets; Lovol uses the range both in its own farm machinery and as a supply to outside construction-machinery makers.
When buying used, on engines of this model year, operating hours and service history matter especially, along with the condition of the turbocharger and its waste-gate control, the injection pump or its nozzles, and the tightness of crankshaft seals and charge-air ducting. Spares run through the Lovol distribution network.
Sources: Kennwerte der Modelle Lovol (weitere Nonroad-Dieselmotoren)
Technical data
Engine
| Engine family | BTLEL3.994TAcorrect |
|---|---|
| Engine families | BTLEL3.994TAcorrect |
| Fuel | 300-500 ppm Low Sulfur Dieselcorrect |
| Rated output | 74 kWcorrect |
| Power band | 56<=kW<75correct |
| Rated speed | 2,200 rpmcorrect |
| Maximum torque | 390 N·mcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 4correct |
| Cylinder layout | in linecorrect |
| Bore | 100 mmcorrect |
| Stroke | 127 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | wastegate turbochargercorrect |
| Charge-air cooling | aircorrect |
| Emissions stage | Tier 3correct |
Origin and approval
| Built from | 2011correct |
|---|---|
| Built to | 2011correct |
| Model year from | 2011correct |
| Model year to | 2011correct |
Frequently asked questions
How much power does the Lovol 1004D-4TA74 have?
The Lovol 1004D-4TA74 delivers 74 kW.
When was the Lovol 1004D-4TA74 built?
Production years: 2011.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
