Loher AMGA-080BH-04

Series: Other models

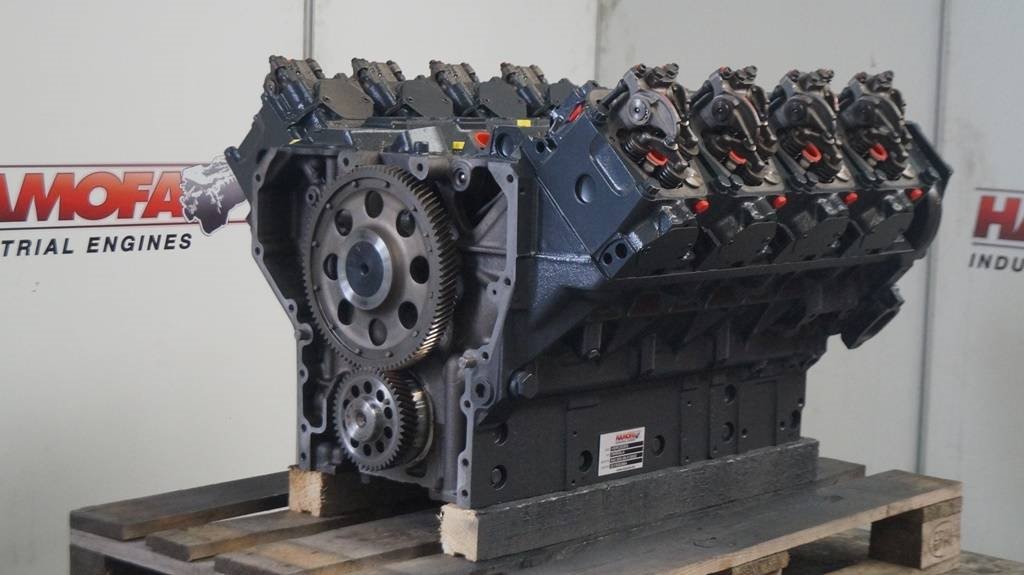

The photo shows the AMGK-280SG-04C from the same series. Source: https://www.resale.info/mercedes-benz/%E4%BA%8C%E6%89%8B-mer

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Loher AMGA-080BH-04 is a three-phase induction motor. The rated output is 0.75 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The housing is frame size 80 B in flange-mounted form and foot-mounted form. The protection class is IP56 and IP55. The efficiency is 83 per cent at full load, 82.9 per cent at 75 per cent load and 80.6 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5, B35, B14 and V1. The motor is built in Germany. The figures come from the Australian MEPS register under the GEMS Determination 2012; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the Loher range ranges from 0.75 to 160 kW; the AMGA-080BH-04 sits at the bottom of that range with 0.75 kW. Its immediate neighbours are the AMGA-080BA-02E above it with 1.1 kW. 240 Loher models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output0.75 kWcorrect

Electrical data

Number of poles4correct
Protection classIP56, IP55correct
Frame size80 B (flange), 80 B (foot)correct
Mounting (IEC 60034-7)B3, B5, B35, B14, V1correct
Efficiency at full load83.01 %correct
Efficiency at 75 % load82.94 %correct
Efficiency at half load80.57 %correct

Origin and approval

Country of manufactureGermanycorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the Loher AMGA-080BH-04 have?

The Loher AMGA-080BH-04 delivers 0.8 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
