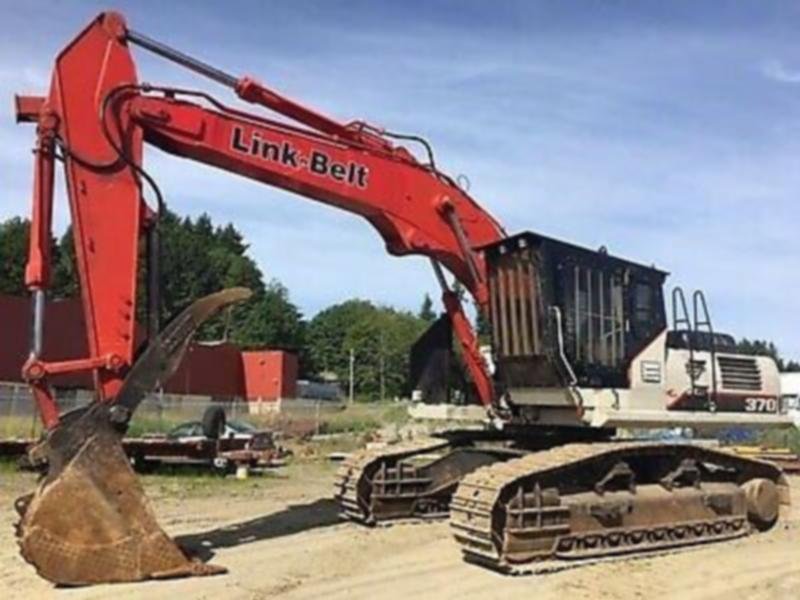

Link-Belt 370LX Tier III

Series: Link-Belt Material Handler

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 370LX Tier III, Link-Belt offers a model from the Link-Belt Material Handler series. The engine delivers 202.1 kW, has 6 cylinders, with a displacement of 7,783.9 cm³. Rated speed is 2,000 rpm. Top speed is 4.2 km/h. The tank holds 580.3 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. The hydraulic tank holds 350.2 litres. The cooling system holds 42 litres. The oil fill is 33.3 litres. The electrical system runs on 24 V. The engine fitted is the AH-6HK1XYSS. The Link-Belt Material Handler series covers 7 models. Rated output within it ranges from 132 to 316.9 kW; the 370LX Tier III sits in the lower part of that range with 202.1 kW. Its immediate neighbours are the 370LX below it with 184.2 kW and the 6000 Quantum above it with 223.7 kW. 157 Link-Belt models across 10 series are on record. The model is listed under Excavators & compaction. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine modelAH-6HK1XYSScorrect
Power202.1 kWcorrect
Rated speed2,000 rpmcorrect
Cylinders6correct
Displacement7,783.9 cm³correct
AspirationTurbocharged with Intercoolercorrect
Coolant capacity42 lcorrect
Engine oil capacity33.3 lcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmissioncorrect
Forward gears2correct
Reverse gears2correct
Top speed4.2 km/hcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity350.2 lcorrect
Fuel tank capacity580.3 lcorrect

Frequently asked questions

How much power does the Link-Belt 370LX Tier III have?

The Link-Belt 370LX Tier III delivers 202 kW.

What engine does the Link-Belt 370LX Tier III have?

6 cylinders, 7,784 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
