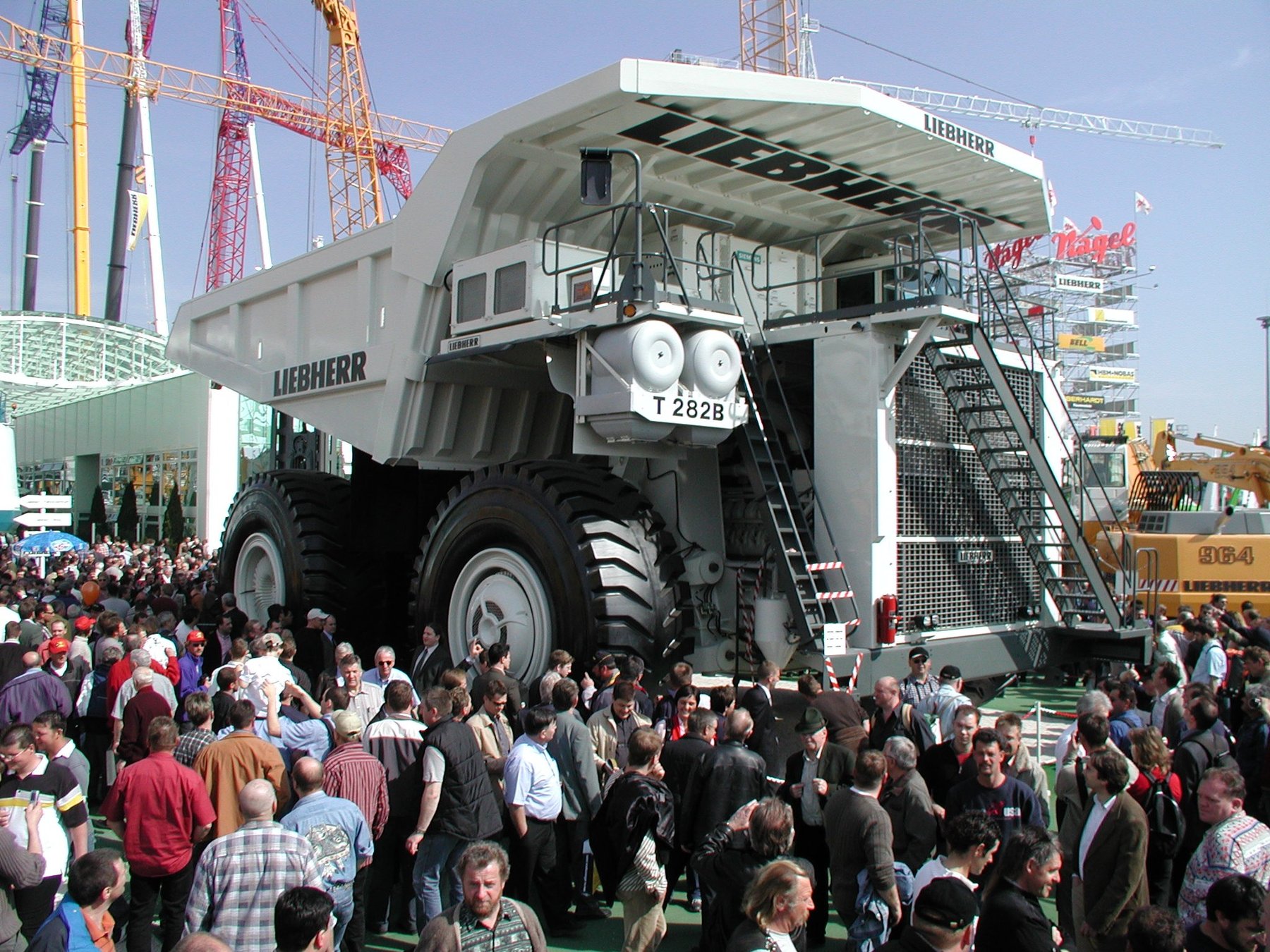

Liebherr T282B

Series: Liebherr Rock Truck

Source: https://commons.wikimedia.org/w/index.php?curid=7722960

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Liebherr T282B is a model in the Liebherr Rock Truck series. The engine delivers 2,725 kW, has 20 cylinders, with a displacement of 90,001 cm³. Rated speed is 1,800 rpm. The wheelbase measures 6,550.2 mm. Ground clearance is 1,392.9 mm. Top speed is 64.5 km/h. The tank holds 4,730.3 litres. The oil fill is 390.3 litres. The engine fitted is the 20V4000. Tyre size: 56/80 R63 or 59/80 R63. Rated output across the Liebherr range ranges from 42.1 to 2,725 kW; the T282B sits at the top of that range with 2,725 kW. Its immediate neighbours are the R996 below it with 2,237.1 kW. 480 Liebherr models across 20 series are on record. The model is listed under Mining equipment. 12 verified figures from 1 source are on file.

Technical data

Engine

Engine model	20V4000correct
Power	2,725 kWcorrect
Rated speed	1,800 rpmcorrect
Cylinders	20correct
Displacement	90,001 cm³correct
Engine oil capacity	390.3 lcorrect

Dimensions and weights

Length	14,502.4correct
Wheelbase	6,550.2correct
Ground clearance	1,392.9correct

Drivetrain and chassis

Tyre size	56/80 R63 or 59/80 R63correct
Top speed	64.5 km/hcorrect

Working data

Fuel tank capacity	4,730.3 lcorrect

Frequently asked questions

How much power does the Liebherr T282B have?

The Liebherr T282B delivers 2,725 kW.

What engine does the Liebherr T282B have?

20 cylinders, 90,001 cm³ displacement.

How fast does the Liebherr T282B go?

Top speed is 64.5 km/h.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
