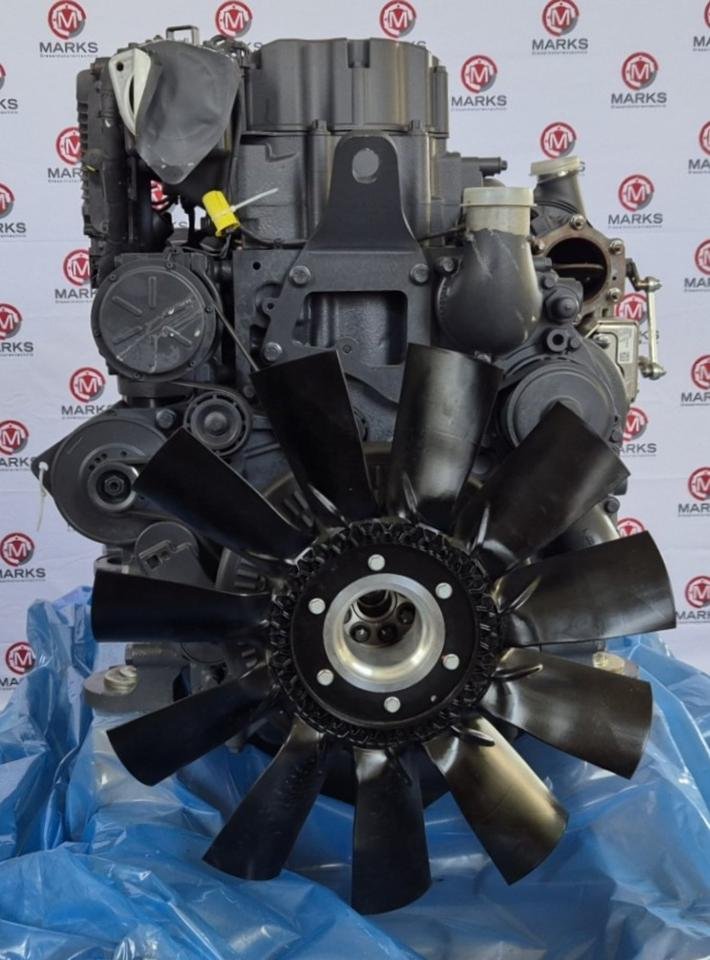

Liebherr TCD 9.0 L4

Built: 2019-2019 · Series: Other models

Source: https://www.kleinanzeigen.de/s-anzeige/deutz-motor-tcd9-0l4-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The TCD 9.0 L4 comes from Liebherr. Production: 2019. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 225 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. The charge air is cooled by air or coolant. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Liebherr range ranges from 129 to 4,290 kW; the TCD 9.0 L4 sits at the bottom of that range with 225 kW. Its immediate neighbours are the D944 A7-25 below it with 200 kW and the D936 A7 above it with 230 kW. 480 Liebherr models across 20 series are on record. The model is listed under Non-road diesel engines. 26 verified figures from 1 source are on file.

Technical data

Engine

Engine codeR04PQ7104correct
Engine familySLHAL09.0SQC; MLHAL09.0SQC; PLHAL09.0SQC; KLHAL09.0SQC; RLHAL09.0SQC; LLHAL09.0SQC; NLHAL09.0SQCcorrect
Engine familiesSLHAL09.0SQC; MLHAL09.0SQC; PLHAL09.0SQC; KLHAL09.0SQC; RLHAL09.0SQC; LLHAL09.0SQC; NLHAL09.0SQCcorrect
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output225 kWcorrect
Power band130<=kW<=560correct
Rated speed2,100 rpmcorrect
Maximum torque1,535 N·mcorrect
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore135 mmcorrect
Stroke157 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typewastegate turbochargercorrect
Charge-air coolingbothcorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

VersionR04PQ7104correct
Built from2019correct
Built to2025correct
Model year from2019correct
Model year to2025correct

Frequently asked questions

How much power does the Liebherr TCD 9.0 L4 have?

The Liebherr TCD 9.0 L4 delivers 225 kW.

When was the Liebherr TCD 9.0 L4 built?

Production years: 2019.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
