Liebherr D9816

Built: 2023-2023 · Series: Other models

More machines from model year 2023

Source: https://www.liebherr.com/fr-fr/groupe/location/colmar-compon

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

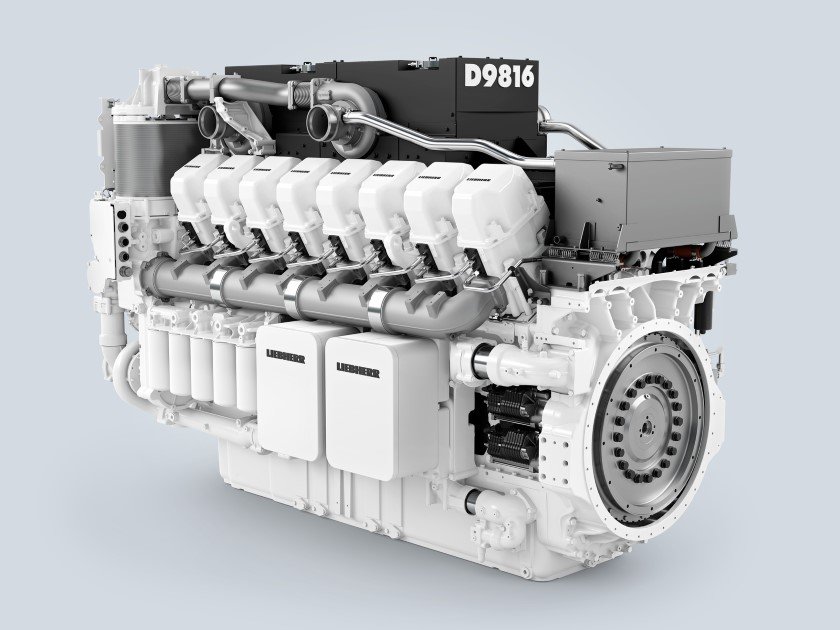

The Liebherr D9816 is a machine built by Liebherr. Production: 2023. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 2,700 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. The charge air is cooled by coolant. Charging is by a fixed-geometry turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in a V. Rated output across the Liebherr range ranges from 129 to 4,290 kW; the D9816 sits in the upper part of that range with 2,700 kW. Its immediate neighbours are the KD83V16-6CNC below it with 2,644 kW and the D9816G above it with 3,010 kW. 480 Liebherr models across 20 series are on record. The model is listed under Non-road diesel engines. 26 verified figures from 1 source are on file.

Technical data

Engine

Engine codeC16VB1100correct
Engine familyRLHAL103.VQS; PLHAL103.VQS; SLHAL103.VQScorrect
Engine familiesRLHAL103.VQS; PLHAL103.VQS; SLHAL103.VQScorrect
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output2,700 kWcorrect
Power bandkW>560correct
Rated speed1,800 rpmcorrect
Maximum torque16,114 N·mcorrect
Speed at max. torque1,600 rpmcorrect
Cylinders16correct
Cylinder layoutV layoutcorrect
Bore175 mmcorrect
Stroke215 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typeFixed Turbochargercorrect
Charge-air coolingliquidcorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

VersionC16VB1100correct
Built from2023correct
Built to2025correct
Model year from2023correct
Model year to2025correct

Frequently asked questions

How much power does the Liebherr D9816 have?

The Liebherr D9816 delivers 2,700 kW.

When was the Liebherr D9816 built?

Production years: 2023.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
