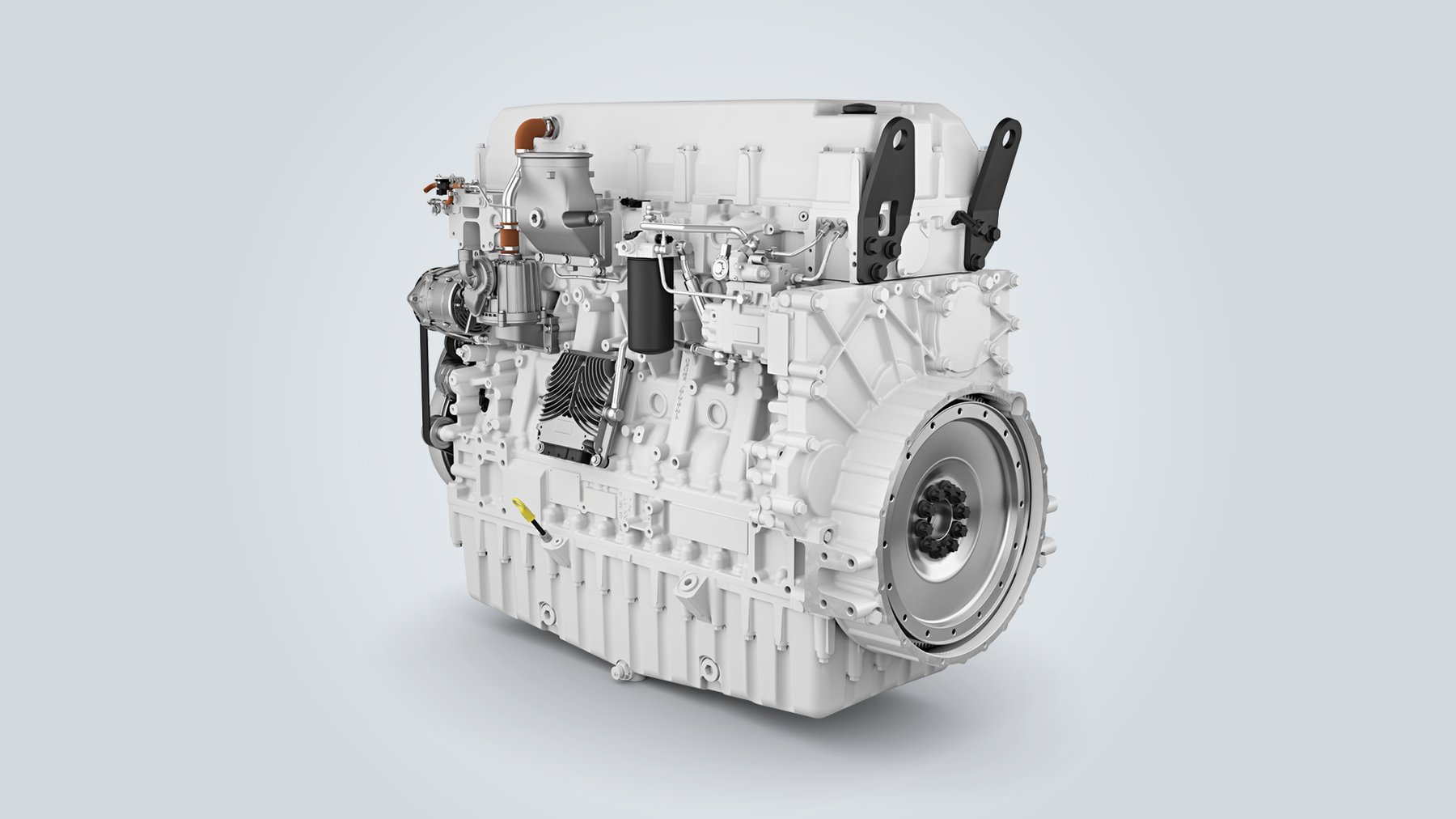

Liebherr D976 A7-04

Built: 2022-2022 · Series: Other models

Source: https://www.liebherr.com/de-de/komponenten/l%C3%B6sungen/ver

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The D976 A7-04 comes from Liebherr. Production: 2022. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 565 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. The charge air is cooled by air or coolant. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Liebherr range ranges from 129 to 4,290 kW; the D976 A7-04 sits at the bottom of that range with 565 kW. Its immediate neighbours are the D9508 A7-05 below it with 458 kW and the D9512 A7-04 above it with 600 kW. 480 Liebherr models across 20 series are on record. The model is listed under Non-road diesel engines. 26 verified figures from 1 source are on file.

Technical data

Engine

Engine codeR06JQ7103correct
Engine familyNLHAL18.0SQC; PLHAL18.0SQC; SLHAL18.0SQC; TLHAL18.0SQC; RLHAL18.0SQCcorrect
Engine familiesNLHAL18.0SQC; PLHAL18.0SQC; SLHAL18.0SQC; TLHAL18.0SQC; RLHAL18.0SQCcorrect
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output565 kWcorrect
Power bandkW>560correct
Rated speed1,900 rpmcorrect
Maximum torque3,530 N·mcorrect
Speed at max. torque1,300 rpmcorrect
Cylinders6correct
Cylinder layoutin linecorrect
Bore148 mmcorrect
Stroke174 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typewastegate turbochargercorrect
Charge-air coolingbothcorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

VersionR06JQ7103correct
Built from2022correct
Built to2026correct
Model year from2022correct
Model year to2026correct

Frequently asked questions

How much power does the Liebherr D976 A7-04 have?

The Liebherr D976 A7-04 delivers 565 kW.

When was the Liebherr D976 A7-04 built?

Production years: 2022.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
