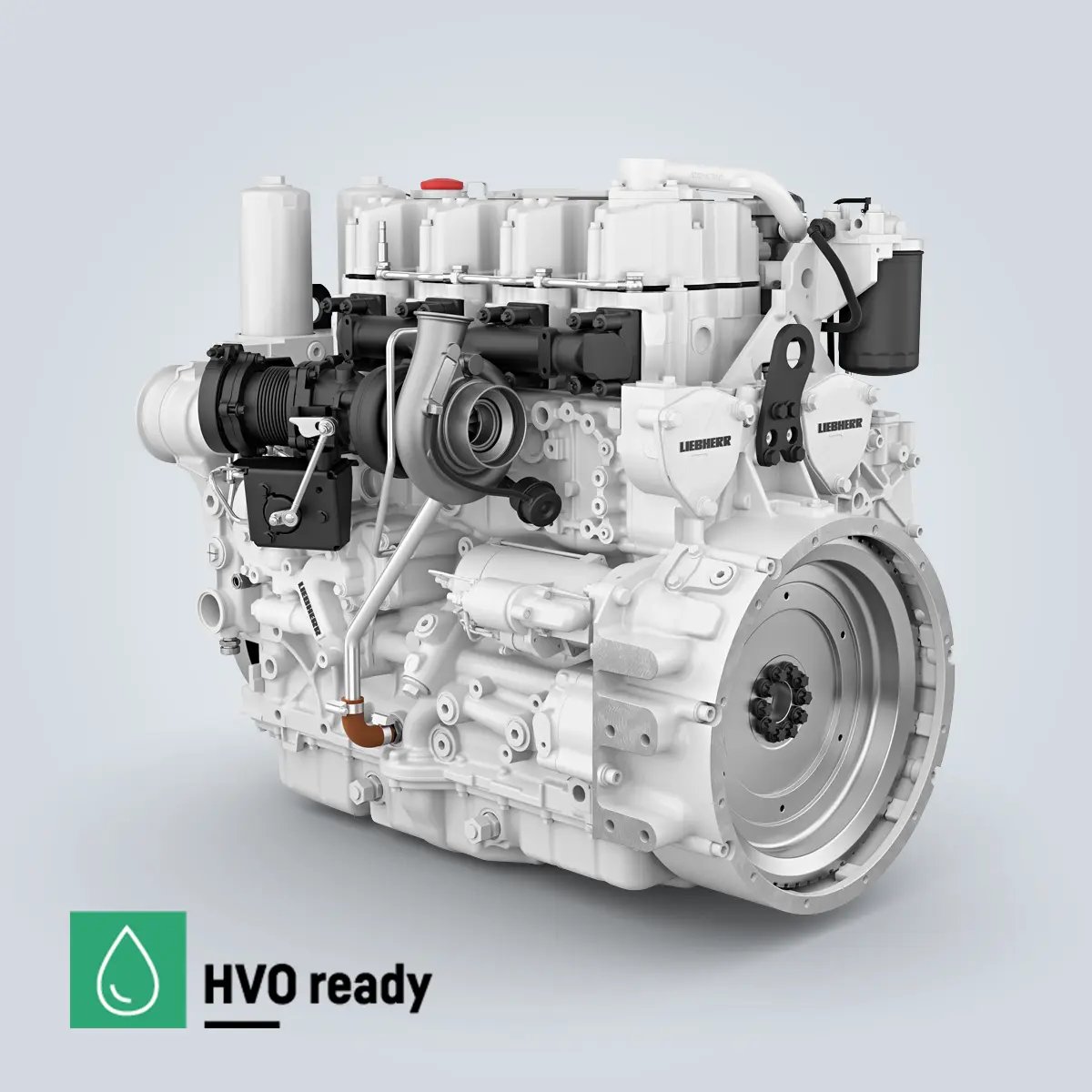

Liebherr D934 A7
Built: 2012-2012 · Series: D934
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Liebherr D934 – four-cylinder diesel engine from Bulle, Switzerland: EPA nonroad certification, 129 to 200 kW, waste-gate turbocharger, Tier 4 Final and Interim Tier 4, model years 2012 to 2026
Liebherr, founded in 1949 by Hans Liebherr, is a family-run engineering group that develops and builds a substantial share of the diesel engines for its own construction and mining machinery in-house rather than buying them in. The engines are built at the Liebherr Machines Bulle SA plant in Bulle, Switzerland. This page gathers the versions of the D934 range, a four-cylinder diesel engine in the mid-power segment of Liebherr's own engine programme.
Read on 3 more paragraphs
The register lists here five versions (D934 A7, D934 A7 SCR, D934 A7-04, D934 A7-24, D934 A7-25) with 129 to 200 kW rated output at 1,800 to 2,000 rpm, as a four-cylinder inline engine with 122 mm bore and 150 mm stroke. The turbocharger is a waste-gate design, injection is direct, and the specified fuel is low-sulphur diesel at 7 to 15 ppm sulphur. Emission stages run from Interim Tier 4 to Tier 4 (Final or Phase-in), model years from 2012 to 2026; one of the five versions is explicitly marked SCR for selective catalytic reduction exhaust aftertreatment. Maximum torque ranges from 802 to 1,265 Nm at 1,350 to 1,500 rpm.
The D934 chiefly powers Liebherr's own construction machines, such as mobile excavators, crawler excavators and wheel loaders in the mid-power segment; in-house engine development sets Liebherr apart from competitors that mostly rely on engines from Cummins, Deutz or Caterpillar.
On a used purchase, operating hours and service history count, the condition of the waste-gate turbocharger, the tightness of the charge-air ducting, the condition of injector nozzles and high-pressure lines, and, on the SCR version, the condition and dosing of the exhaust aftertreatment along with the AdBlue system; since the engine is mostly fitted in Liebherr's own machines, service history usually runs through the manufacturer's own customer service.
Sources: Kennwerte der Modelle Liebherr D934, Liebherr (Hersteller)
Technical data
Engine
| Engine code | D934 R04L71001correct |
|---|---|
| Engine family | ELHAL7.01SEC; CLHAL7.01SEC; DLHAL7.01SECcorrect |
| Engine families | ELHAL7.01SEC; CLHAL7.01SEC; DLHAL7.01SECcorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 129 kWcorrect |
| Power band | 75<=kW<130correct |
| Rated speed | 2,000 rpmcorrect |
| Maximum torque | 802 N·mcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 4correct |
| Cylinder layout | in linecorrect |
| Bore | 122 mmcorrect |
| Stroke | 150 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | wastegate turbochargercorrect |
| Charge-air cooling | aircorrect |
| Emissions stage | Interim Tier 4correct |
Origin and approval
| Version | D934 R04L71001correct |
|---|---|
| Built from | 2012correct |
| Built to | 2014correct |
| Model year from | 2012correct |
| Model year to | 2014correct |
Frequently asked questions
How much power does the Liebherr D934 A7 have?
The Liebherr D934 A7 delivers 129 kW.
When was the Liebherr D934 A7 built?
Production years: 2012.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
