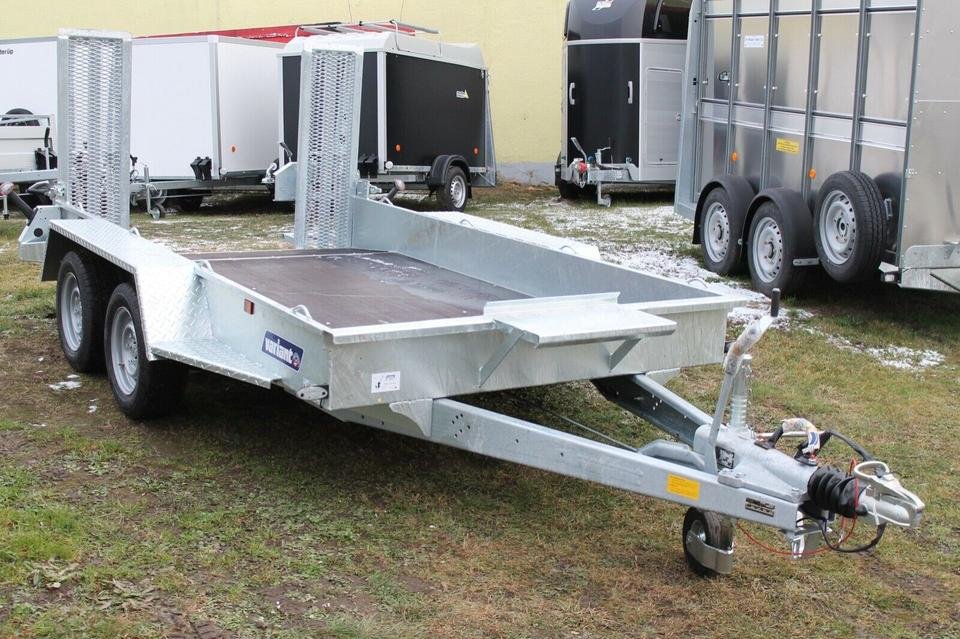

Lbt GRT 3500
Built: 2010-2010 · Series: Other models
More machines from model year 2010
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Lbt – other models: the collective page of light trailers outside the named ranges, from the GR and GRT series (1000 GR to 3500 GRT) to the VACUTRAILER, 260 to 2,640 kg unladen weight, up to 3,500 kg gross weight
This page gathers the Lbt trailers the register could not assign to a named range. The type designations almost always carry the suffix GR or GRT after a weight figure, from 1000 GR and 1350 GR through 2000 GRT to 3500 GRT, plus individual models such as LBT 1650 and VACUTRAILER 2700; one model carries the name suffix LBT - HOLLAND.
Read on 3 more paragraphs
The register lists here 38 versions with unladen weights from 260 to 2,640 kg and gross weights from 1,000 to 3,500 kg. Lengths range from 8,750 to 11,060 mm, widths from 1,190 to 2,360 mm.
With gross weights throughout up to 3,500 kg the whole line-up sits in class O2 of car trailers; individual versions reach lengths of more than 11 metres at comparatively low weight. Such small series supplement the large, named ranges of established makers in the register and show the breadth of smaller trailer builders who manufacture regionally or for individual niches.
On used trailers, the condition of the drawbar and overrun brake, rust on the frame, tyre condition and, on the long versions, frame deflection and torsional stiffness count. Spares for such a small-scale brand are usually only obtainable through independent trailer workshops. Checking the electrics and lighting, the condition of the jockey wheel and a look at the vehicle papers and inspection sticker also belong to the inspection.
Technical data
Dimensions and weights
| Width | 2,220 mmcorrect |
|---|---|
| Wheelbase | 1,520 mmcorrect |
| Unladen weight | 840 kgcorrect |
| Gross vehicle weight | 3,500 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Lbt GRT 3500 weigh?
The unladen weight is 840 kg.
What is the gross vehicle weight of the Lbt GRT 3500?
3,500 kg.
Up to what speed is the Lbt GRT 3500 approved?
Approved up to 100 km/h.
When was the Lbt GRT 3500 built?
Production years: 2010.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
