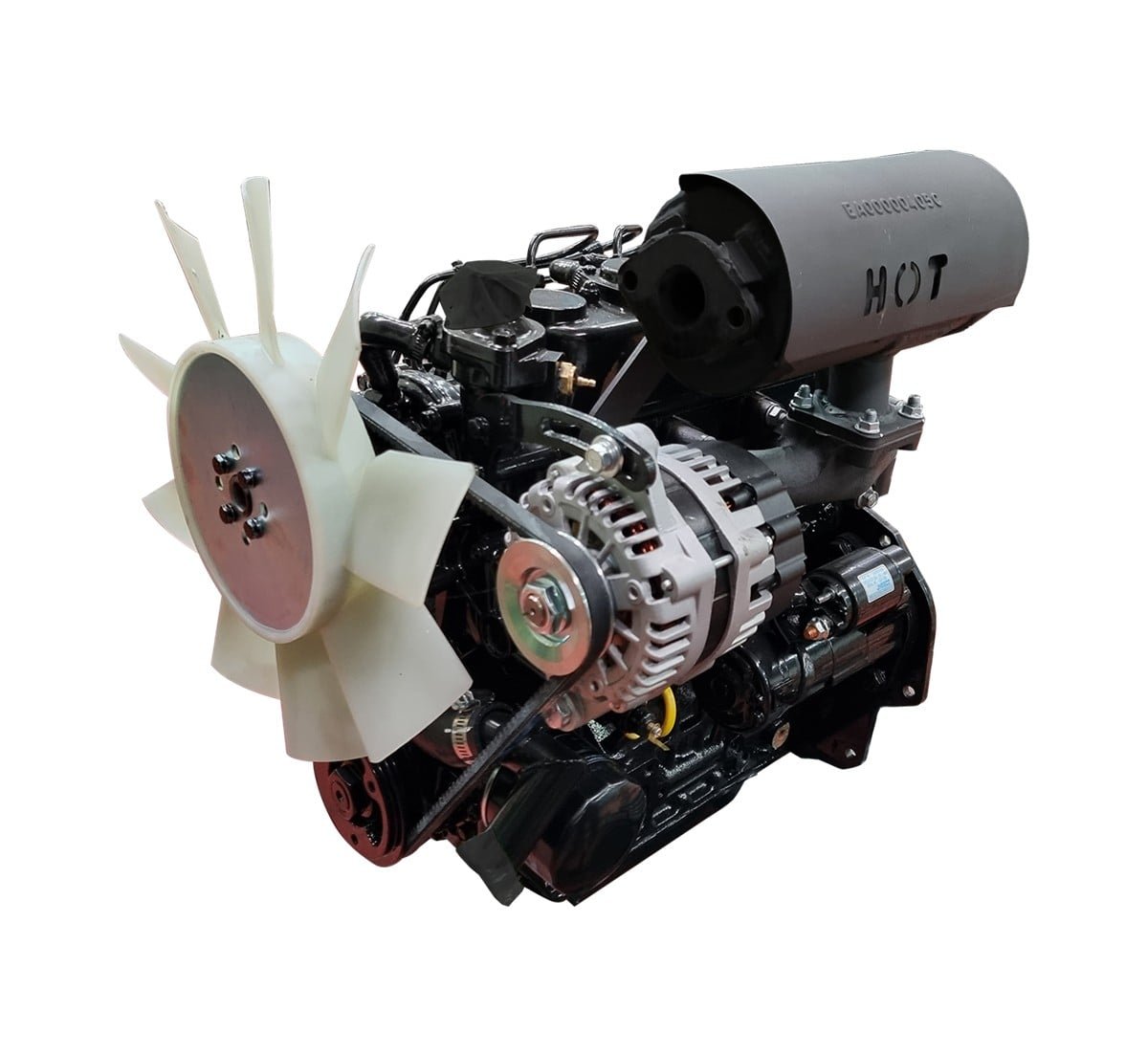

Kukje Machinery A1700N3

Built: 2014-2022 · Series: Other models

Source: https://www.lectura-specs.com/en/model/components/engines-ku

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Kukje Machinery A1700N3 is a machine built by Kukje Machinery. Production: 2014-2022. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 22 kW. The engine is naturally aspirated. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through indirect injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Kukje Machinery range ranges from 13 to 64 kW; the A1700N3 sits in the lower part of that range with 22 kW. Its immediate neighbours are the A1100T1 below it with 21 kW and the A1500N1 above it with 23 kW. 41 Kukje Machinery models across 2 series are on record. The model is listed under Non-road diesel engines. 25 verified figures from 1 source are on file.

Technical data

Engine

Engine codeA1700N3correct
Engine familyGKMCL1.72A31correct
Engine familiesFKMCL1.72A31; EKMCL1.72AN3correct
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output22 kWcorrect
Power band19<=kW<37correct
Rated speed2,500 rpmcorrect
Maximum torque76.1 N·mcorrect
Speed at max. torque1,600 rpmcorrect
Cylinders3correct
Cylinder layoutin linecorrect
Bore88 mmcorrect
Stroke94 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectionindirect injectioncorrect
Aspirationnaturally aspiratedcorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

VersionA1700N3correct
Built from2014correct
Built to2015correct
Model year from2014correct
Model year to2022correct
Sales regionbothcorrect

Frequently asked questions

How much power does the Kukje Machinery A1700N3 have?

The Kukje Machinery A1700N3 delivers 22 kW.

When was the Kukje Machinery A1700N3 built?

Production years: 2014-2022.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 25 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
