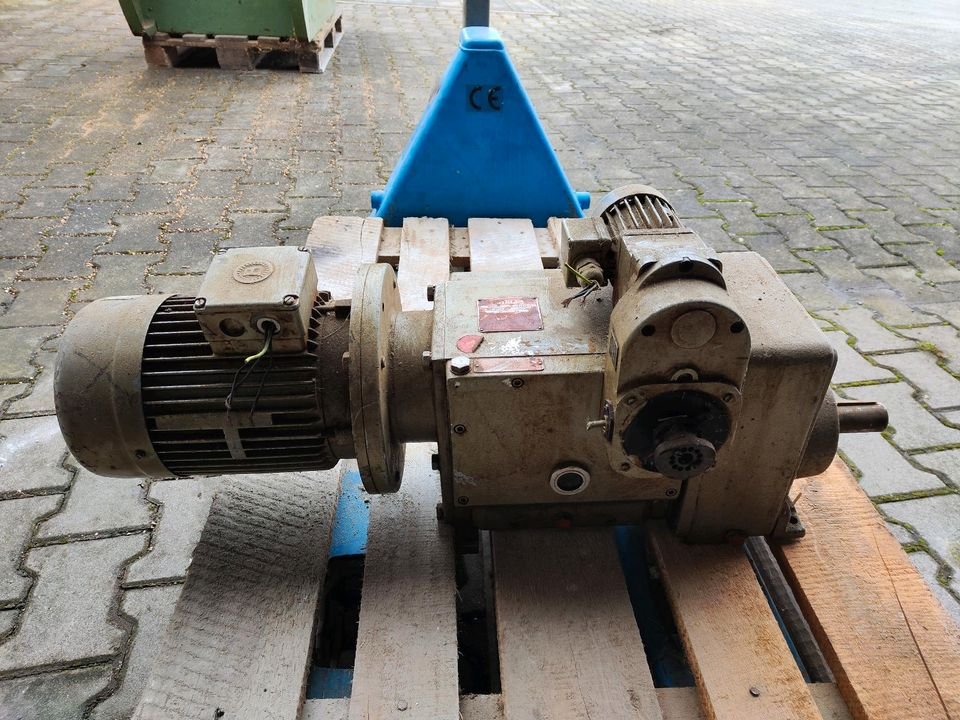

Kufo TC16
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
KUFO – other models: the collective page of MEPS-registered three-phase motors from Taiwan outside the named ranges, frame size 132, 5.5 to 7.5 kW, two-pole
This page gathers the KUFO three-phase motors the Australian energy-efficiency register could not assign to a named range. The designations recorded in the register, SK-18CS and TC16, do not follow a uniformly recognisable public system; both motors do, however, share the same IEC frame size 132.
Read on 3 more paragraphs
The register lists here 2 versions with 5.5 to 7.5 kW rated output, both two-pole, for a 415 V or 230/400 V supply, with full-load efficiencies from 87.7 to 89.3% and at 75% load from 87.7 to 89.61%. Protection ranges from IP54 to IP55, the mounting code is B3 (foot type), testing followed AS/NZS 1359.5:2004 with test method A. Manufacturing takes place in Taiwan.
Two-pole three-phase motors of this power class run at a synchronous speed of 3,000 rpm at 50 Hz and are a common drive for compressors, centrifugal pumps and sawmill machinery, where high speeds without a gearbox are wanted; the IP54 and IP55 ratings differ only in the degree of dust protection, both guarding against splashing water from all directions.
When buying used, bearing condition and a checked insulation resistance of the winding, the condition of the terminal box and fan cover, the condition of shaft and key, and a legible nameplate with frame size, pole count and protection rating matter. Spares run through KUFO's Taiwanese distribution.
Sources: Kennwerte der Modelle KUFO (weitere Modelle, MEPS-Registrierungen)
Technical data
Engine
| Rated output | 7.5 kWcorrect |
|---|
Dimensions and weights
| Weight | 59 kgcorrect |
|---|
Electrical data
| Rated voltage | 230/400 Vcorrect |
|---|---|
| Number of poles | 2correct |
| Protection class | IP55correct |
| Frame size | 132 M (foot)correct |
| Mounting (IEC 60034-7) | B3correct |
| Efficiency at full load | 89.3 %correct |
| Efficiency at 75 % load | 89.61 %correct |
| Efficiency at half load | 89.05 %correct |
Origin and approval
| Country of manufacture | Taiwancorrect |
|---|
Other data
| Standard applied | AS/NZS 1359.5:2004correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
How much power does the Kufo TC16 have?
The Kufo TC16 delivers 7.5 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
