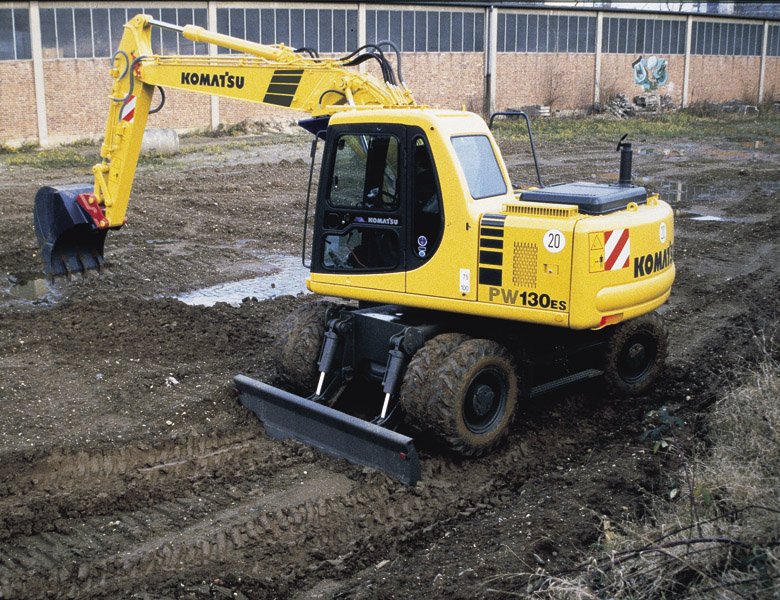

Komatsu PW130ES-6
Series: Komatsu Mobile Excavator
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Komatsu wheeled excavators PW60 to PW210 – PW for Power Wheel, the Hanomag years of the PW130ES to PW170ES from Hanover, R for short tail, Komatsu engines 4D94 to S6D105, 37 to 114 kW
Komatsu's wheeled excavators carry the code PW – Power Wheel, the counterpart to the PC of the crawler excavators – and their history in Europe leads to Hanover: in 1989 Komatsu took over the German construction-equipment maker Hanomag, and at the Hanover-Linden plant the wheeled excavators PW130ES, PW150ES and PW170ES were built from the 1990s for the European market – Komatsu upper structures on undercarriages that used Hanomag's experience in wheeled-excavator building. The type logic: the number gives the weight class in hundreds of kilograms (PW75 about 7.5 t, PW150 15 t, PW210 21 t), ES marks the Hanover generation, R the short-tail version, N a market variant, -1, -2 and -6 the generations. The engines are Komatsu's own four- and six-cylinders: 4D94 and 4D98 in the small, 4D102 in the mid-range, S6D95 and S6D105 in the big models.
Read on 3 more paragraphs
The register lists 11 versions with 37.3 to 114 kW from engines of 2,942 to 6,491 cm³ at rated speeds of 2,000 to 2,300 rpm and operating weights from 7,500 to 18,980 kg.
The Hanover PW excavators were Komatsu's ticket into the European wheeled-excavator market dominated by Liebherr, Atlas and O&K; today's PW148 to PW198 are built at the Italian Este plant.
On used machines, operating hours, play in slew ring and boom bearings, the condition of tyres, outriggers and oscillating axle, leak-free cylinders and swivel joint and parts supply, still possible for the Hanover models through Komatsu Europe, are what count.
Sources: Kennwerte der Modelle Komatsu Mobilbagger, Komatsu Europe Mobilbagger (Hersteller)
Technical data
Engine
| Engine model | SA4D102E-1correct |
|---|---|
| Power | 111.5 hp (78.3 kW)correct |
| Rated speed | 2,250 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,921.4 cm³correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 15.9 lcorrect |
| Engine oil capacity | 16.3 lcorrect |
Dimensions and weights
| Wheelbase | 2,603correct |
|---|---|
| Ground clearance | 341.4correct |
| Unladen weight | 15,110 kgcorrect |
Drivetrain and chassis
| Forward gears | 3correct |
|---|---|
| Reverse gears | 3correct |
Working data
| Pump flow | 236.2 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 100.3 lcorrect |
| Hydraulic pressure | 318.7 barcorrect |
| Fuel tank capacity | 250.2 lcorrect |
Other data
| Cab height | 3,404.6correct |
|---|
More machines with this engine (SA4D102E-1, 2)
Where this model stands
Power-to-weight ratio: 5.2 kW/t (78 kW / 15.1 t)
Stronger than 30% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Komatsu PW130ES-6 have?
The Komatsu PW130ES-6 delivers 112 hp.
How much does the Komatsu PW130ES-6 weigh?
The unladen weight is 15,110 kg.
What engine does the Komatsu PW130ES-6 have?
4 cylinders, 3,921 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
