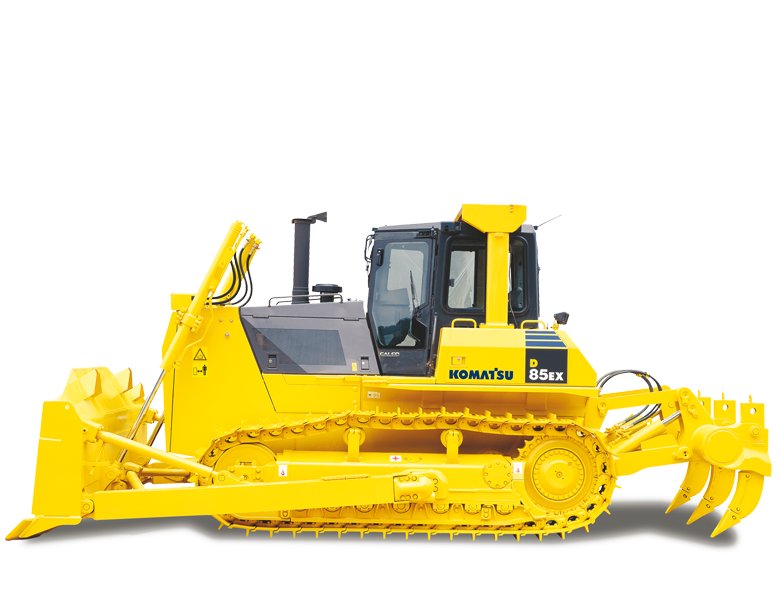

Komatsu D85EX-15 Crawler

Series: Other models

Source: https://www.komatsu.eu/en/product-archive/crawler-dozers/d85

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the D85EX-15, Komatsu offers a model from the Komatsu Crawler Tractor series. The engine delivers 269.7 hp (179 kW), has 6 cylinders, with a displacement of 11,044.9 cm³. Rated speed is 1,900 rpm. The unladen weight is 28,100 kg. Ground clearance is 457.2 mm. The tank holds 488.3 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. The pump delivers 195.3 l/min. Working pressure is 225.5 bar. The cooling system holds 58.7 litres. The oil fill is 37.9 litres. The engine fitted is the SAA6D125E-5. The Komatsu Crawler Tractor series covers 265 models. Rated output within it ranges from 35.5 to 4,126.5 hp; the D85EX-15 sits at the bottom of that range with 269.7 hp. Its immediate neighbours are the WF450T-3 below it with 263.8 hp and the D135A-2 above it with 293 hp. 1159 Komatsu models across 39 series are on record. The model is listed under Mining equipment. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine modelSAA6D125E-5correct
Power269.7 hp (179 kW)correct
Rated speed1,900 rpmcorrect
Cylinders6correct
Displacement11,044.9 cm³correct
AspirationTurbocharged, air-to-air aftercooled, cooled EGRcorrect
Coolant capacity58.7 lcorrect
Engine oil capacity37.9 lcorrect

Dimensions and weights

Ground clearance457.2correct
Unladen weight28,100 kgcorrect

Drivetrain and chassis

Gearbox typeKomatsu TORQFLOW transmissioncorrect
Forward gears3correct
Reverse gears3correct

Working data

Pump flow195.3 l/mincorrect
Hydraulic pressure225.5correct
Fuel tank capacity488.3 lcorrect

Other data

Height3,328.4correct

Where this model stands

Power-to-weight ratio: 6.4 kW/t (179 kW / 28.1 t)

Stronger than 62% of the mining equipment in the register — out of 945 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Komatsu D85EX-15 have?

The Komatsu D85EX-15 delivers 270 hp.

How much does the Komatsu D85EX-15 weigh?

The unladen weight is 28,100 kg.

What engine does the Komatsu D85EX-15 have?

6 cylinders, 11,045 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
