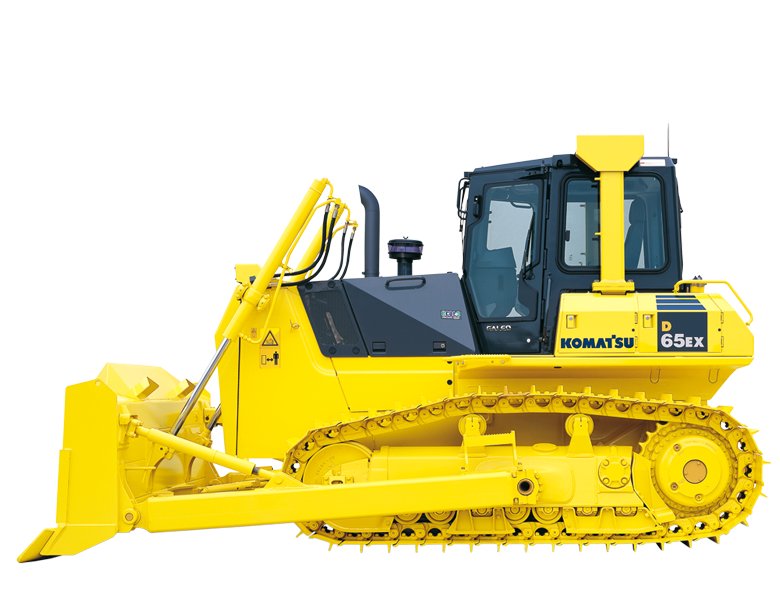

Komatsu D65PX-15E0 Crawler

Series: Other models

Source: https://www.komatsu.eu/en/product-archive/crawler-dozers/d65

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The D65PX-15E0 from Komatsu is part of the Komatsu Crawler Tractor series. The engine delivers 209.9 hp (152.9 kW), has 6 cylinders, with a displacement of 8,275.5 cm³. The engine comes from Komatsu. Rated speed is 1,950 rpm. The wheelbase measures 3,285.7 mm. Ground clearance is 405.4 mm. The tank holds 415.3 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. Working pressure is 206.2 bar. The cooling system holds 37.1 litres. The oil fill is 28 litres. The engine fitted is the SAA6D114E-3. The Komatsu Crawler Tractor series covers 265 models. Rated output within it ranges from 35.5 to 4,126.5 hp; the D65PX-15E0 sits at the bottom of that range with 209.9 hp. Its immediate neighbours are the D65PX-12 below it with 192.6 hp and the D80A-18 above it with 223.1 hp. 1159 Komatsu models across 39 series are on record. The model is listed under Mining equipment. 17 verified figures from 1 source are on file.

Technical data

Engine

Engine makeKomatsucorrect
Engine modelSAA6D114E-3correct
Power209.9 hp (152.9 kW)correct
Rated speed1,950 rpmcorrect
Cylinders6correct
Displacement8,275.5 cm³correct
AspirationTurbochangedcorrect
Coolant capacity37.1 lcorrect
Engine oil capacity28 lcorrect

Dimensions and weights

Wheelbase3,285.7correct
Ground clearance405.4correct

Drivetrain and chassis

Forward gears3correct
Reverse gears3correct

Working data

Hydraulic pressure206.2correct
Fuel tank capacity415.3 lcorrect

Other data

Height3,221.7correct

Frequently asked questions

How much power does the Komatsu D65PX-15E0 have?

The Komatsu D65PX-15E0 delivers 210 hp.

What engine does the Komatsu D65PX-15E0 have?

6 cylinders, 8,276 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
