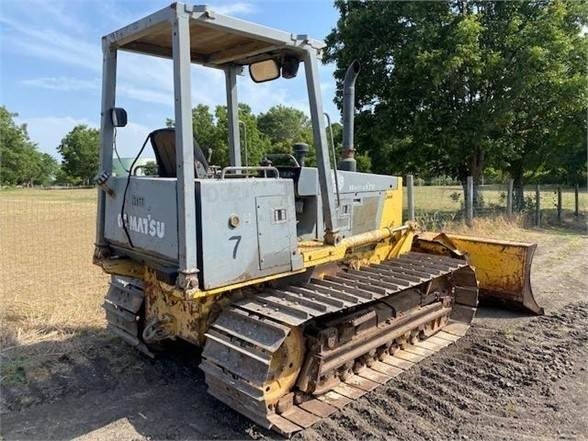

Komatsu D32P-1 Crawler

Series: Other models

Source: https://www.ritchielist.com/construction/dozers-crawler-doze

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The D32P-1 from Komatsu is part of the Komatsu Crawler Tractor series. The engine delivers 81.1 hp (52.2 kW), has 4 cylinders, with a displacement of 3,916.5 cm³. Torque is 268.5 Nm. Rated speed is 2,500 rpm. The unladen weight is 7,860.8 kg. Ground clearance is 323.1 mm. The tank holds 170.3 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,200 rpm. The pump delivers 75.7 l/min. Working pressure is 155.1 bar. The cooling system holds 26.9 litres. The oil fill is 10.6 litres. The electrical system runs on 12 V. The engine fitted is the 4D102E-1. The Komatsu Crawler Tractor series covers 265 models. Rated output within it ranges from 35.5 to 4,126.5 hp; the D32P-1 sits at the bottom of that range with 81.1 hp. Its immediate neighbours are the D31PLL-20E below it with 72 hp and the D37A-5 above it with 82.1 hp. 1159 Komatsu models across 39 series are on record. The model is listed under Mining equipment. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine model4D102E-1correct
Power81.1 hp (52.2 kW)correct
Rated speed2,500 rpmcorrect
Torque268.5correct
Speed at max. torque1,200 rpmcorrect
Cylinders4correct
Displacement3,916.5 cm³correct
AspirationNaturalcorrect
Coolant capacity26.9 lcorrect
Engine oil capacity10.6 lcorrect

Dimensions and weights

Ground clearance323.1correct
Unladen weight7,860.8 kgcorrect

Drivetrain and chassis

Gearbox typeTorque Convertercorrect
Forward gears3correct
Reverse gears3correct
System voltage12 Vcorrect

Working data

Pump flow75.7 l/mincorrect
Hydraulic pressure155.1correct
Fuel tank capacity170.3 lcorrect

Other data

Height2,590.8correct

Where this model stands

Power-to-weight ratio: 6.6 kW/t (52 kW / 7.9 t)

Stronger than 12% of the mining equipment in the register — out of 945 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Komatsu D32P-1 have?

The Komatsu D32P-1 delivers 81.1 hp.

How much does the Komatsu D32P-1 weigh?

The unladen weight is 7,861 kg.

What engine does the Komatsu D32P-1 have?

4 cylinders, 3,916 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
