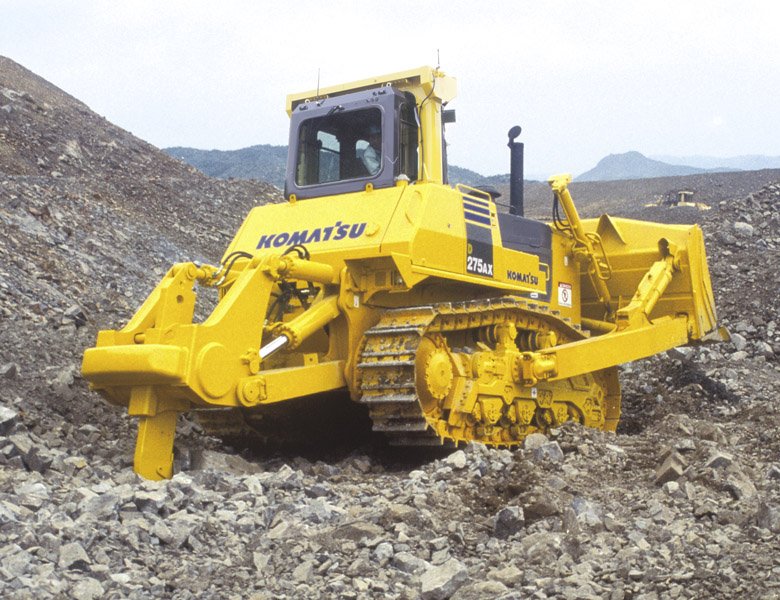

Komatsu D275A-2 Crawler

Series: Other models

Source: https://www.komatsu.eu/en/crawler-dozers/d275ax-5 komatsu.e

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Komatsu D275A-2 is a model in the Komatsu Crawler Tractor series. The engine delivers 415.7 hp (305.7 kW), with a displacement of 23,150 cm³. Rated speed is 1,800 rpm. The unladen weight is 50,000 kg. Ground clearance is 509 mm. The tank holds 840.4 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. The pump delivers 255.1 l/min. Working pressure is 205.9 bar. The cooling system holds 136.3 litres. The oil fill is 51.1 litres. The electrical system runs on 24 V. The engine fitted is the S6D170-4. The Komatsu Crawler Tractor series covers 265 models. Rated output within it ranges from 35.5 to 4,126.5 hp; the D275A-2 sits at the bottom of that range with 415.7 hp. Its immediate neighbours are the D65PX-17 below it with 365 hp and the D275AX-5 above it with 452.2 hp. 1159 Komatsu models across 39 series are on record. The model is listed under Mining equipment. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine modelS6D170-4correct
Power415.7 hp (305.7 kW)correct
Rated speed1,800 rpmcorrect
Displacement23,150 cm³correct
AspirationTurbocharged, and emission certified dieselcorrect
Coolant capacity136.3 lcorrect
Engine oil capacity51.1 lcorrect

Dimensions and weights

Ground clearance509correct
Unladen weight50,000 kgcorrect

Drivetrain and chassis

Gearbox typeTFcorrect
Forward gears3correct
Reverse gears3correct
System voltage24 Vcorrect

Working data

Pump flow255.1 l/mincorrect
Hydraulic pressure205.9correct
Fuel tank capacity840.4 lcorrect

Other data

Height3,956.3correct

Where this model stands

Power-to-weight ratio: 6.1 kW/t (306 kW / 50 t)

Stronger than 80% of the mining equipment in the register — out of 945 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Komatsu D275A-2 have?

The Komatsu D275A-2 delivers 416 hp.

How much does the Komatsu D275A-2 weigh?

The unladen weight is 50,000 kg.

What engine does the Komatsu D275A-2 have?

23,150 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
