Kempf SP 39 / 3
Built: 2012-2012 · Series: SP
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

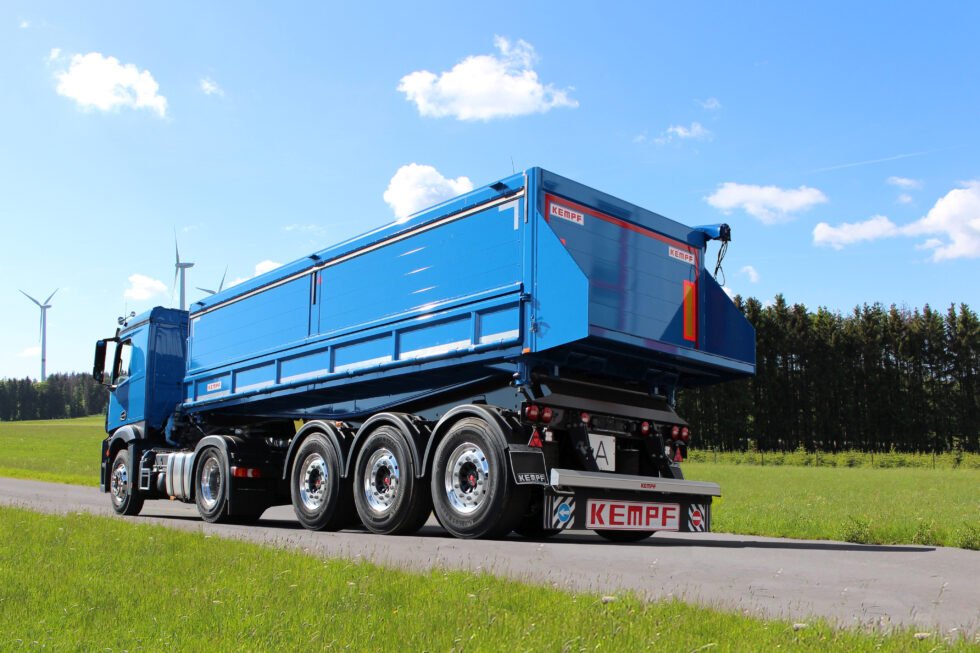

Kempf SP – tipper semi-trailer from the Bad Marienberg manufacturer: five versions with 34,000 to 46,000 kg gross weight and 12.3 to 14 m length
Kempf Fahrzeugbau has built trailers, semi-trailers and superstructures in Bad Marienberg in the Westerwald region for more than 70 years, with a focus on tipper vehicles for construction, recycling and agriculture. The SP range covers tipper semi-trailers in the register, whose designations such as SP 34/3, SP 35/3, SP 39/3, SP 39/9 and SP 46/3 are graded by volume and axle count.
Read on 3 more paragraphs
The register lists 5 versions with unladen weights from 6,830 to 7,710 kg, gross weights from 34,000 to 46,000 kg, lengths from 12,300 to 14,000 mm and a width of 2,550 mm.
Tipper semi-trailers of this size carry bulk materials such as gravel, sand, excavated soil or recycled material between quarries, building sites and processing plants; competing with larger makers such as Meiller or Carnehl, Kempf positions itself as a specialist in light, usually aluminium bodies that allow more payload at the same gross weight. In the recycling and earthworks trade too, where the vehicles are loaded and unloaded frequently, the combination of low unladen weight and robust construction is one of the brand's selling points.
When buying used, the tipping body and its seals, the hydraulic cylinders and lines, and the tailgate and its locking deserve particular attention; the frame under the tipping body should be checked for corrosion and deformation caused by abrasive bulk materials, as should the axles, brakes and floor plates for rust-through.
Sources: Kennwerte der Modelle Kempf SP, Kempf Fahrzeugbau (Hersteller)
Technical data
Dimensions and weights
| Length | 12,300 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 8,790 mmcorrect |
| Unladen weight | 6,830 kgcorrect |
| Gross vehicle weight | 39,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Kempf SP 39 / 3 weigh?
The unladen weight is 6,830 kg.
What is the gross vehicle weight of the Kempf SP 39 / 3?
39,000 kg.
Up to what speed is the Kempf SP 39 / 3 approved?
Approved up to 100 km/h.
What are the dimensions of the Kempf SP 39 / 3?
12,300 mm × 2,550 mm.
When was the Kempf SP 39 / 3 built?
Production years: 2012.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
