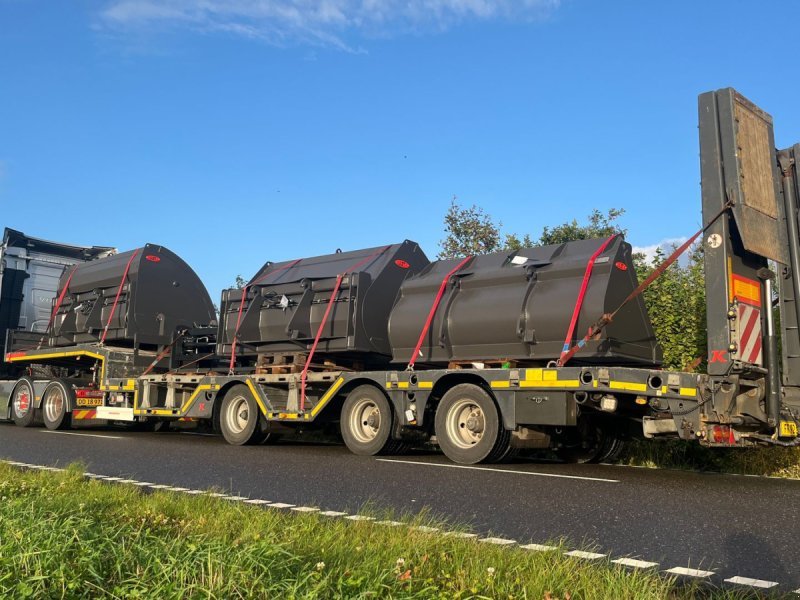

Kassbohrer DRAWBAR
Built: 2022-2022 · Series: Other models
More machines from model year 2022
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Kässbohrer – other models: the collective page of semi-trailers outside the named ranges, from tipper and silo to low-loader and tanker, 1.79 to 17.87 t unladen weight, 3,500 to 74,000 kg gross weight
This page gathers the Kässbohrer-brand semi-trailers the register could not assign to a named range. Kässbohrer is a long-established German vehicle maker from Ulm whose name today stands chiefly for semi-trailers. The model names usually state the body type directly in English or German: tipper for the tipping trailer, lowbed for the low-loader, tankauflieger for the tanker, frigo for the refrigerated box, kippsilo and silolegend for the silo semi-trailers, and truck transporter for the vehicle transporter.
Read on 3 more paragraphs
The register lists here 45 versions with unladen weights from 1,790 to 17,870 kg and gross weights from 3,500 to 74,000 kg. Lengths, where recorded, run from 9,100 to 14,180 mm, widths from 2,350 to 2,600 mm.
The wide span of gross weight from 3.5 to 74 tonnes shows the breadth of the Kässbohrer programme: from light trailers through the classic semi-trailers for tipper, silo and tanker bodies to multi-axle heavy-haul and abnormal-load trailers for construction machinery. Kässbohrer ranks among the established German makers in the silo and bulk-goods semi-trailer segment.
On a used semi-trailer, the checks differ by body type: on tippers, the tightness of the hydraulic ram and the tipping body and corrosion on the hinges; on silo and tanker semi-trailers, the tightness of the vessel and the condition of the loading and unloading fittings; on low-loaders, the ramps and lashing points. On all versions, the brake system, axle assemblies, kingpin and landing legs, and the frame for corrosion should be checked; spare parts run through the Kässbohrer service network and the independent semi-trailer trade.
Technical data
Dimensions and weights
| Length | 10,840 mmcorrect |
|---|---|
| Width | 2,540 mmcorrect |
| Wheelbase | 8,980 mmcorrect |
| Unladen weight | 6,340 kgcorrect |
| Gross vehicle weight | 30,000 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Kassbohrer DRAWBAR weigh?
The unladen weight is 6,340 kg.
What is the gross vehicle weight of the Kassbohrer DRAWBAR?
30,000 kg.
Up to what speed is the Kassbohrer DRAWBAR approved?
Approved up to 100 km/h.
What are the dimensions of the Kassbohrer DRAWBAR?
10,840 mm × 2,540 mm.
When was the Kassbohrer DRAWBAR built?
Production years: 2022.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
