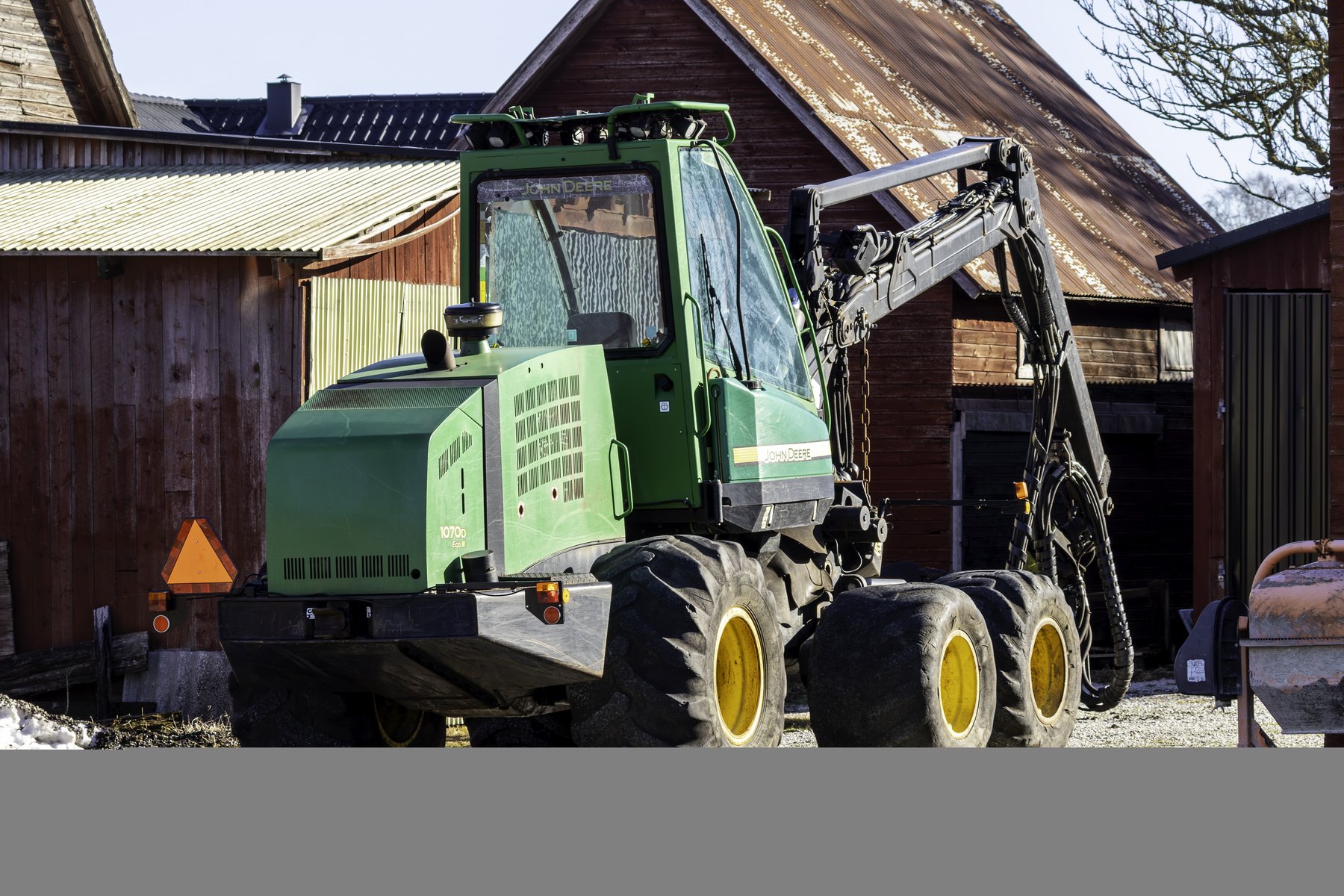

John Deere 1070D

Series: John Deere Harvester

Source: https://commons.wikimedia.org/w/index.php?curid=185926580 u

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The John Deere Harvester series from John Deere includes the 1070D. The engine delivers 184.5 hp (135.7 kW), has 6 cylinders, with a displacement of 6,784.2 cm³. Torque is 780 Nm. Rated speed is 1,900 rpm. The machine is 2,539 mm wide. The unladen weight is 14,099.9 kg. The wheelbase measures 3,505.2 mm. Ground clearance is 576.1 mm. Top speed is 24 km/h. The tank holds 300.2 litres. Maximum torque is reached at 1,400 rpm. The hydraulic tank holds 170 litres. The cooling system holds 31 litres. The electrical system runs on 24 V. The engine fitted is the 6068HTJ. The John Deere Harvester series covers 16 models. Rated output within it ranges from 117 to 298.1 hp; the 1070D sits in the lower part of that range with 184.5 hp. Its immediate neighbours are the 703G below it with 183.6 hp and the 1490D above it with 184.9 hp. 2153 John Deere models across 96 series are on record. The model is listed under Harvesting machinery. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine model6068HTJcorrect
Power184.5 hp (135.7 kW)correct
Rated speed1,900 rpmcorrect
Torque780correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement6,784.2 cm³correct
Aspirationturbochargedcorrect
Coolant capacity31 lcorrect

Dimensions and weights

Width2,539correct
Wheelbase3,505.2correct
Ground clearance576.1correct
Unladen weight14,099.9 kgcorrect

Drivetrain and chassis

Top speed24 km/hcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity170 lcorrect
Fuel tank capacity300.2 lcorrect

Other data

Height3,605.8correct

Where this model stands

Power-to-weight ratio: 9.6 kW/t (136 kW / 14.1 t)

Stronger than 43% of the harvesting machinery in the register — out of 284 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the John Deere 1070D have?

The John Deere 1070D delivers 184 hp.

How much does the John Deere 1070D weigh?

The unladen weight is 14,100 kg.

What engine does the John Deere 1070D have?

6 cylinders, 6,784 cm³ displacement.

How fast does the John Deere 1070D go?

Top speed is 24 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
