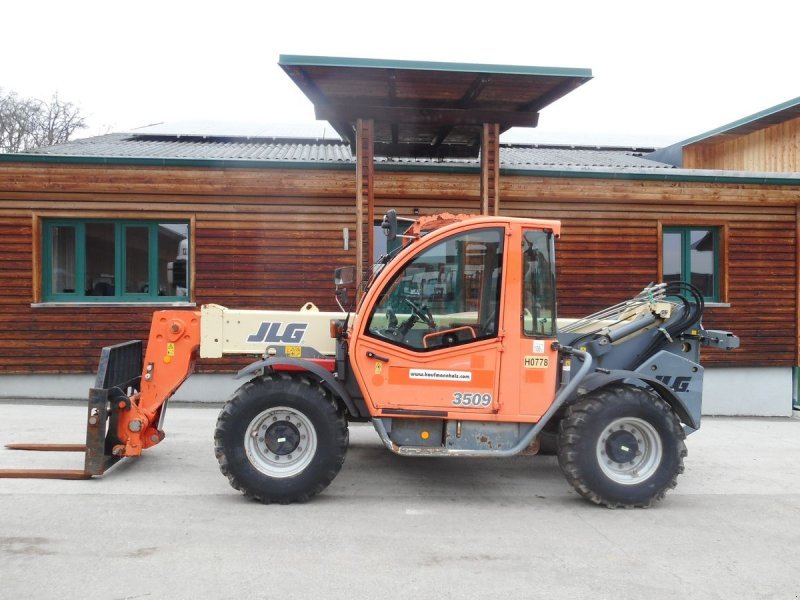

JLG 3509
Series: JLG Telescopic Forklift
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Technical data
Engine
| Engine model | Diesel 1104.44correct |
|---|---|
| Power | 81.6 hp (60 kW)correct |
Dimensions and weights
| Wheelbase | 2,852.9correct |
|---|---|
| Unladen weight | 8,600 kgcorrect |
Drivetrain and chassis
| Gearbox type | powershift transmissioncorrect |
|---|---|
| Forward gears | 3correct |
| Reverse gears | 3correct |
| Tyre size | 16/70-20correct |
Working data
| Pump flow | 132.1 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 160.1 lcorrect |
| Fuel tank capacity | 140.1 lcorrect |
Where this model stands
Power-to-weight ratio: 7 kW/t (60 kW / 8.6 t)
Stronger than 17% of the telehandlers in the register — out of 658 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the JLG 3509 have?
The JLG 3509 delivers 81.6 hp.
How much does the JLG 3509 weigh?
The unladen weight is 8,600 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
