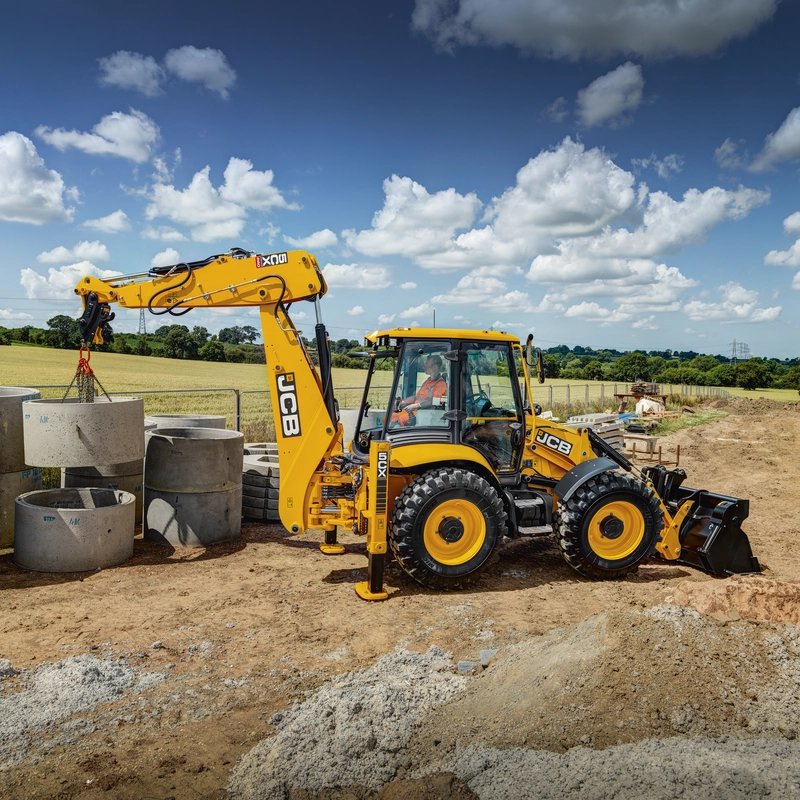

JCB 532X60AGS
Built: 2022-2023 · Series: Other models
More machines from model year 2022
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The JCB 532X60AGS rolled off the line in 2022-2023 as a tractor. Under the bonnet works a four-cylinder engine displacing 4.8 litres, producing 89 kW.
Dimensions are 4.86 m by 2.33 m. Unladen, it tips the scales at 7,875 kg.
Within the range, rated power spans from 12.9 to 250 kW; with 89 kW, the 532X60AGS sits in the lower third. Directly alongside are the 536-60 AGRI with 85.6 kW below and the 541-70AGS with 90.5 kW above.
JCB – other models: the collective page of farm equipment outside the named ranges, from the Fastrac 145 and 155-65 through the 2135, 3185 and 3230 Xtra to the 4160, 4220 and 8330 and the Agri telehandlers 531-70 to 560-80, 13 to 185 kW, AGCO Power, Perkins and JCB engines
This page gathers the JCB farm machines the register could not assign to a named range – above all the Fastrac, the tractor with which the backhoe-loader maker from Rocester in Staffordshire entered agriculture in 1991, and the Agri telehandlers with which JCB shaped the farm-loader market. The type logic of the Fastrac: the early types 145 and 155-65 give the hp class (and the top speed in km/h), the 2000 and 3000 ranges of the 2000s the series in the first digit and the power in the following ones (2135 about 135 hp, 3230 about 230 hp), Xtra the equipment line; the 4000 (4160 to 4220) and 8000 (8250 to 8330) ranges since 2005 and 2014 follow the same logic with stepless transmission. The Fastrac is a systems tractor with full suspension, disc brakes and central cab that is the only tractor approved for 70 km/h. The telehandlers give capacity and lift height in the digits – 531-70 3.1 t to 7 m, 536-70 3.6 t to 7 m, 560-80 6 t to 8 m – Agri, Agri Super and Agri Pro the equipment lines. The engines come from AGCO Power (Sisu) in the Fastrac 4000 and 8000, from Perkins and JCB (Dieselmax, EcoMax) in the others.
Read on 3 more paragraphs
The register lists here 130 versions with 12.9 to 185 kW from three- to six-cylinders of 784 to 8,268 cm³, unladen weights from 840 to 11,870 kg, gross weights from 1,360 to 16,000 kg, lengths from 2,980 to 6,030 mm and widths from 1,520 to 2,600 mm.
The Fastrac is the tractor of contractors and haulage farms in Britain, Germany and Scandinavia; the Agri telehandlers are market leaders of their class in Europe.
On used Fastracs, operating hours, suspension and brakes (disc brakes take road wear), transmission (powershift or stepless), engine and electronics count, on the telehandlers boom, wear pads, hydraulics and axles; parts run through JCB dealers.
Sources: Kennwerte der Modelle JCB (weitere Modelle), JCB (Hersteller, Rocester)
Technical data
Engine
| Power | 89 kWcorrect |
|---|---|
| Cylinders | 4correct |
| Displacement | 4,765 cm³correct |
Dimensions and weights
| Length | 4,860 mmcorrect |
|---|---|
| Width | 2,330 mmcorrect |
| Unladen weight | 7,875 kgcorrect |
| Gross vehicle weight | 11,000 kgcorrect |
Where this model stands
Power-to-weight ratio: 11.3 kW/t (89 kW / 7.9 t)
Power class: Large (100–180 hp)
Stronger than 75% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the JCB 532X60AGS have?
The JCB 532X60AGS delivers 89 kW.
How much does the JCB 532X60AGS weigh?
The unladen weight is 7,875 kg.
What is the gross vehicle weight of the JCB 532X60AGS?
11,000 kg.
What engine does the JCB 532X60AGS have?
4 cylinders, 4,765 cm³ displacement.
What are the dimensions of the JCB 532X60AGS?
4,860 mm × 2,330 mm.
When was the JCB 532X60AGS built?
Production years: 2022-2023.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
