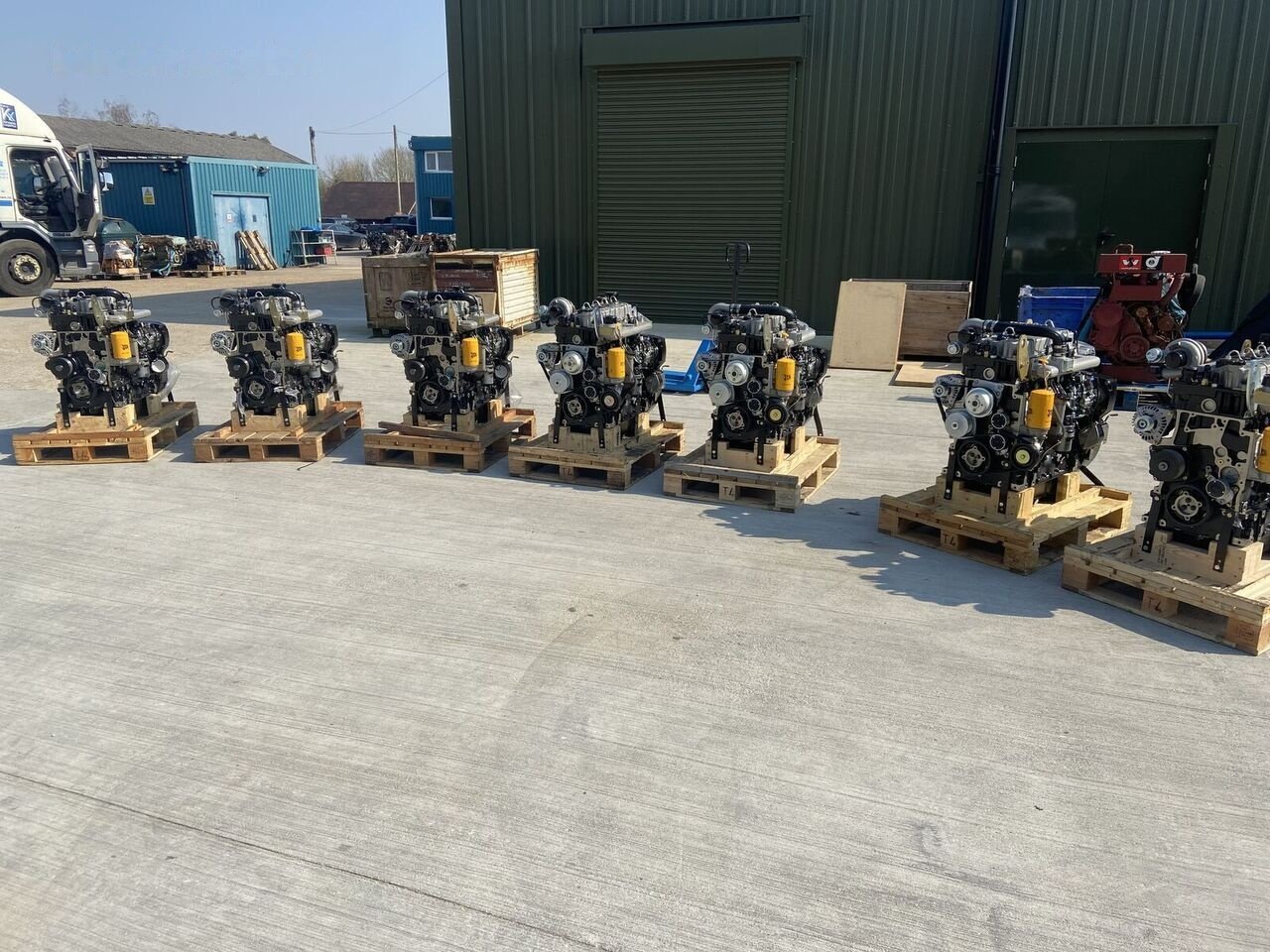

JCB 444 TA4-55

Built: 2013-2023 · Series: Other models

Source: https://www.truck1.eu/spare-parts/engines/new-jcb-444-ta4-55

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 444 TA4-55 comes from JCB. Production: 2013-2023. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 55 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the JCB range ranges from 55 to 129 kW; the 444 TA4-55 sits at the bottom of that range with 55 kW. Its immediate neighbours are the 444 TA4-68 above it with 68 kW. 752 JCB models across 38 series are on record. The model is listed under Non-road diesel engines. 26 verified figures from 1 source are on file.

Technical data

Engine

Engine codeB1correct
Engine familyEJCBL04.4TA5; FJCBL04.4TA5; DJCBL04.4TA5correct
Engine familiesEJCBL04.4TA5; FJCBL04.4TA5; DJCBL04.4TA5correct
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output55 kWcorrect
Power band37<=kW<56correct
Rated speed2,200 rpmcorrect
Maximum torque400 N·mcorrect
Speed at max. torque1,260 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore103 mmcorrect
Stroke132 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typewastegate turbochargercorrect
Charge-air coolingaircorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

VersionB1correct
Built from2013correct
Built to2015correct
Model year from2013correct
Model year to2026correct

Frequently asked questions

How much power does the JCB 444 TA4-55 have?

The JCB 444 TA4-55 delivers 55 kW.

When was the JCB 444 TA4-55 built?

Production years: 2013-2023.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
