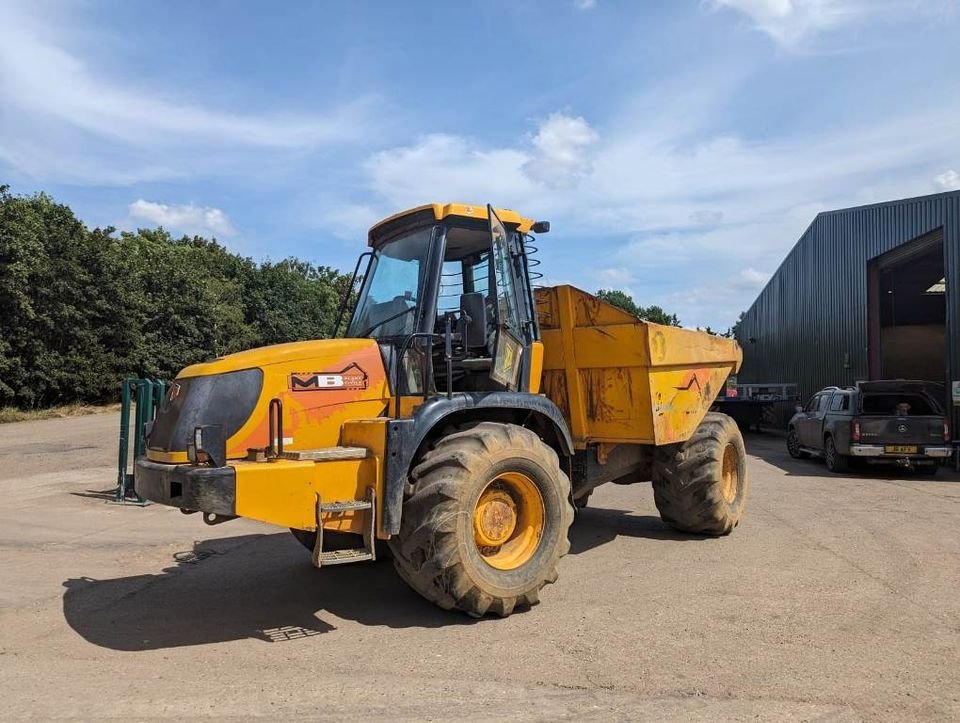

JCB 714
Series: JCB Articulated Dump Truck
The JCB Articulated Dump Truck series from JCB includes the 714. The engine delivers 152.1 hp (107 kW), has 6 cylinders, with a displacement of 5,901 cm³. Torque is 630.5 Nm. Rated speed is 2,200 rpm. The wheelbase measures 3,651.5 mm. Ground clearance is 432.8 mm. Top speed is 39.9 km/h. The tank holds 199.9 litres. The gearbox has 6 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,500 rpm. The hydraulic tank holds 88.2 litres. The cooling system holds 29.9 litres. The oil fill is 16.3 litres. The electrical system runs on 24 V. The engine fitted is the 6BTAA. Tyre size: Michelin 20,5 R25. The JCB Articulated Dump Truck series covers 3 models. Rated output within it ranges from 152.1 to 263.6 hp; the 714 sits at the bottom of that range with 152.1 hp. Its immediate neighbours are the 718 above it with 175.4 hp. 752 JCB models across 38 series are on record. The model is listed under Mining equipment. 23 verified figures from 1 source are on file.
Technical data
Engine
| Engine model | 6BTAAcorrect |
|---|---|
| Power | 152.1 hp (107 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 630.5correct |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,901 cm³correct |
| Aspiration | Turbo charged/charged cooledcorrect |
| Coolant capacity | 29.9 lcorrect |
| Engine oil capacity | 16.3 lcorrect |
Dimensions and weights
| Length | 6,784.8correct |
|---|---|
| Width | 2,502.4correct |
| Wheelbase | 3,651.5correct |
| Ground clearance | 432.8correct |
Drivetrain and chassis
| Gearbox type | Smoothshiftcorrect |
|---|---|
| Forward gears | 6correct |
| Reverse gears | 3correct |
| Tyre size | Michelin 20.5 R25correct |
| Top speed | 39.9 km/hcorrect |
| System voltage | 24 Vcorrect |
Working data
| Hydraulic oil capacity | 88.2 lcorrect |
|---|---|
| Fuel tank capacity | 199.9 lcorrect |
Frequently asked questions
How much power does the JCB 714 have?
The JCB 714 delivers 152 hp.
What engine does the JCB 714 have?
6 cylinders, 5,901 cm³ displacement.
How fast does the JCB 714 go?
Top speed is 39.9 km/h.
What are the dimensions of the JCB 714?
6,785 mm × 2,502 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
