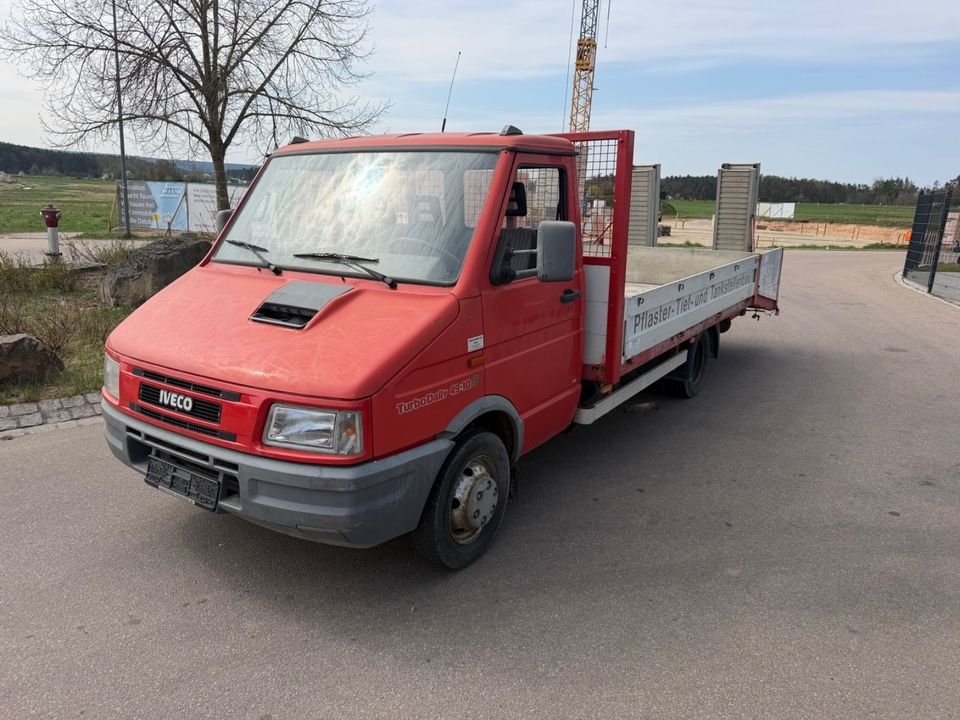

Iveco S49

Built: 1991-1995 · Series: Trucks 3.5–12 t (Class N2)

The Iveco S49 is a machine built by Iveco. Production: 1991-1995. The engine delivers 76 kW, has 4 cylinders, with a displacement of 2,500 cm³. The machine is 8,050 mm long and 2,510 mm wide. The unladen weight is 4,060 kg. The wheelbase measures 4,200 mm. The gross vehicle weight is 5,000 kg. The machine runs on 4 wheels. Rated output across the Iveco range ranges from 60 to 419 kW; the S49 sits at the bottom of that range with 76 kW. Its immediate neighbours are the 60.11-VAN/3600 below it with 74 kW and the 35C-C11-VAN-3.55T/395 above it with 78 kW. 2867 Iveco models across 23 series are on record. The model is listed under Trucks over 7.5 t. 12 verified figures from 1 source are on file.

Iveco Eurocargo — what the type code numbers actually mean

The Iveco Eurocargo type designation, for example '75E16', follows a fixed three-part pattern. The first two or three digits give the gross vehicle weight in steps of 0.1 tonnes, so '75' stands for 7.5 t and '120' for 12.0 t. The letter 'E' marks the engine family — on current models the Tector diesel. The final two digits, multiplied by ten, give the approximate power rating in metric horsepower: '16' means around 160 hp, '18' around 180 hp, and '28' around 280 hp.

Read on 4 more paragraphs

This pattern is confirmed by documented examples: a Eurocargo 75E16 has a gross vehicle weight of 7,500 kg and a 3.9-litre Tector engine rated at 118 kW (around 160 hp), while a 120E18 carries a 12.0-tonne gross weight and 180 hp. The Tector engine itself comes as a four-cylinder 4.5-litre unit in 160, 190 and 210 hp stages, and as a six-cylinder 6.7-litre unit from 220 to 320 hp. The two-digit suffix alone therefore does not reveal whether a truck has four or six cylinders — that depends on the gross weight bracket and model year.

The upper end of the Iveco Daily range — the 50C, 65C and 70C variants — technically also falls into class N2, even though it belongs to the Daily rather than the Eurocargo model family. Iveco offers the Daily up to a gross vehicle weight of 7.2 t, which puts it above the 3.5-tonne threshold separating light vans from medium-duty trucks. For buyers and workshops this means a 70C sits closer, by weight, to the smallest Eurocargo than to a Daily panel van under 3.5 t, despite sharing the Daily name.

Within the Eurocargo range itself, the type codes span more than class N2: variants such as the 180E28, with an 18.0-tonne gross vehicle weight, already belong to the heavy N3 class. That means vehicles sold under the single 'Eurocargo' name span more than one type-approval class, so the first number in the type code is a more reliable reference point than the model name alone.

When buying used, it is worth checking the type designation against the gross vehicle weight stated on the registration document — the two should match, since a previous owner downrating the tonnage does not automatically change the code on the vehicle. The power suffix alone also says nothing about actual payload, which depends further on the body's kerb weight. Anyone looking specifically for a four- or six-cylinder engine should not rely on the type code but check the engine code and displacement on the registration document or on the engine itself.

Sources: Eurotransport: Test Eurocargo 75E16 (7.500 kg zulässiges Gesamtgewicht, Tector 3,9 l, 118 kW/160 PS), L'Argus: Fiche technique Eurocargo 120E18 Tector, TruckScout24: Eurocargo 180E28 Angebot, Iveco: Eurocargo-Broschüre (Tector-Motorenprogramm, Vier- und Sechszylinder), Iveco: Daily 7-Tonner (zulässiges Gesamtgewicht bis 7,2 t)

Technical data

Engine

Power76 kWcorrect
Cylinders4correct
Displacement2,500 cm³correct

Dimensions and weights

Length8,050 mmcorrect
Width2,510 mmcorrect
Wheelbase4,200 mmcorrect
Unladen weight4,060 kgcorrect
Gross vehicle weight5,000 kgcorrect

Drivetrain and chassis

Wheels4correct

Where this model stands

Power-to-weight ratio: 18.7 kW/t (76 kW / 4.1 t)

Stronger than 3% of the trucks over 7.5 t in the register — out of 27,962 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Iveco S49 have?

The Iveco S49 delivers 76 kW.

How much does the Iveco S49 weigh?

The unladen weight is 4,060 kg.

What is the gross vehicle weight of the Iveco S49?

5,000 kg.

What engine does the Iveco S49 have?

4 cylinders, 2,500 cm³ displacement.

What are the dimensions of the Iveco S49?

8,050 mm × 2,510 mm.

When was the Iveco S49 built?

Production years: 1991-1995.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
