StartTrucks over 7.5 tIveco › ML120E24/P

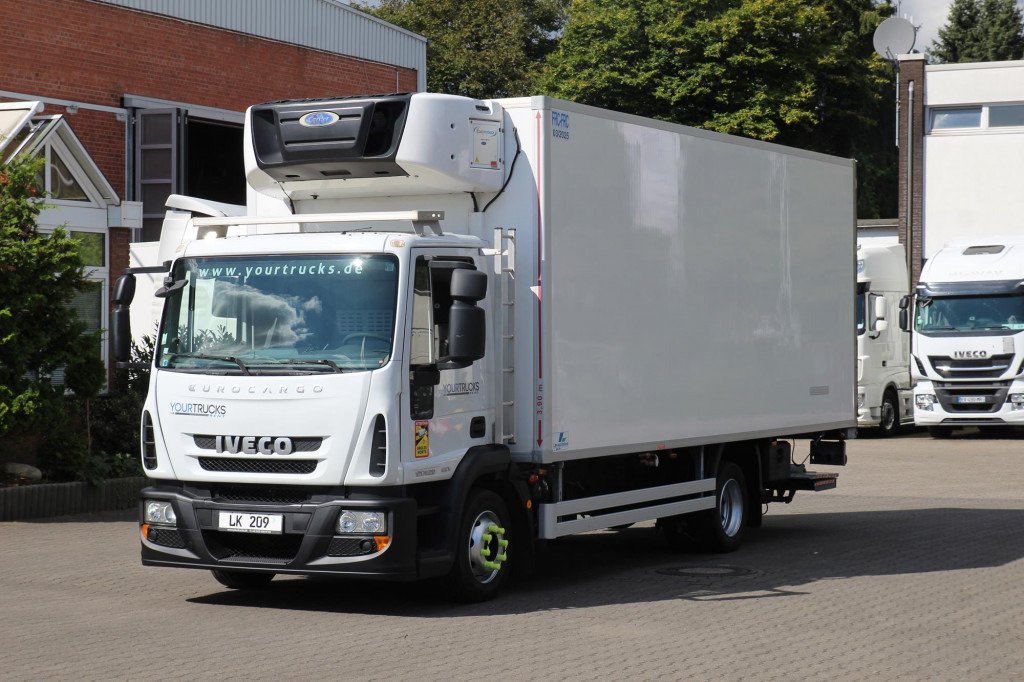

Iveco ML120E24/P

Built: 2006-2006 · Series: Trucks 3.5–12 t (Class N2)

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Iveco ML120E24/P is a machine built by Iveco. Production: 2006. The engine has 6 cylinders, with a displacement of 5,880 cm³. The machine is 8,940 mm long and 2,530 mm wide. The unladen weight is 6,690 kg. The wheelbase measures 4,820 mm. The gross vehicle weight is 11,990 kg. The machine runs on 4 wheels. Unladen weight across the Iveco range ranges from 1,450 to 34,300 kg; the ML120E24/P sits in the lower part of that range with 6,690 kg. Its immediate neighbours are the ML80E15/85 below it with 6,680 kg and the 65C17 EURO V HD EEV above it with 6,695 kg. 2867 Iveco models across 23 series are on record. The model is listed under Trucks over 7.5 t. 10 verified figures from 1 source are on file.

Iveco Eurocargo — what the type code numbers actually mean

The Iveco Eurocargo type designation, for example '75E16', follows a fixed three-part pattern. The first two or three digits give the gross vehicle weight in steps of 0.1 tonnes, so '75' stands for 7.5 t and '120' for 12.0 t. The letter 'E' marks the engine family — on current models the Tector diesel. The final two digits, multiplied by ten, give the approximate power rating in metric horsepower: '16' means around 160 hp, '18' around 180 hp, and '28' around 280 hp.

Read on 4 more paragraphs

This pattern is confirmed by documented examples: a Eurocargo 75E16 has a gross vehicle weight of 7,500 kg and a 3.9-litre Tector engine rated at 118 kW (around 160 hp), while a 120E18 carries a 12.0-tonne gross weight and 180 hp. The Tector engine itself comes as a four-cylinder 4.5-litre unit in 160, 190 and 210 hp stages, and as a six-cylinder 6.7-litre unit from 220 to 320 hp. The two-digit suffix alone therefore does not reveal whether a truck has four or six cylinders — that depends on the gross weight bracket and model year.

The upper end of the Iveco Daily range — the 50C, 65C and 70C variants — technically also falls into class N2, even though it belongs to the Daily rather than the Eurocargo model family. Iveco offers the Daily up to a gross vehicle weight of 7.2 t, which puts it above the 3.5-tonne threshold separating light vans from medium-duty trucks. For buyers and workshops this means a 70C sits closer, by weight, to the smallest Eurocargo than to a Daily panel van under 3.5 t, despite sharing the Daily name.

Within the Eurocargo range itself, the type codes span more than class N2: variants such as the 180E28, with an 18.0-tonne gross vehicle weight, already belong to the heavy N3 class. That means vehicles sold under the single 'Eurocargo' name span more than one type-approval class, so the first number in the type code is a more reliable reference point than the model name alone.

When buying used, it is worth checking the type designation against the gross vehicle weight stated on the registration document — the two should match, since a previous owner downrating the tonnage does not automatically change the code on the vehicle. The power suffix alone also says nothing about actual payload, which depends further on the body's kerb weight. Anyone looking specifically for a four- or six-cylinder engine should not rely on the type code but check the engine code and displacement on the registration document or on the engine itself.

Sources: Eurotransport: Test Eurocargo 75E16 (7.500 kg zulässiges Gesamtgewicht, Tector 3,9 l, 118 kW/160 PS), L'Argus: Fiche technique Eurocargo 120E18 Tector, TruckScout24: Eurocargo 180E28 Angebot, Iveco: Eurocargo-Broschüre (Tector-Motorenprogramm, Vier- und Sechszylinder), Iveco: Daily 7-Tonner (zulässiges Gesamtgewicht bis 7,2 t)

Technical data

Engine

Cylinders6correct
Displacement5,880 cm³correct

Dimensions and weights

Length8,940 mmcorrect
Width2,530 mmcorrect
Wheelbase4,820 mmcorrect
Unladen weight6,690 kgcorrect
Gross vehicle weight11,990 kgcorrect

Drivetrain and chassis

Wheels4correct

Frequently asked questions

How much does the Iveco ML120E24/P weigh?

The unladen weight is 6,690 kg.

What is the gross vehicle weight of the Iveco ML120E24/P?

11,990 kg.

What engine does the Iveco ML120E24/P have?

6 cylinders, 5,880 cm³ displacement.

What are the dimensions of the Iveco ML120E24/P?

8,940 mm × 2,530 mm.

When was the Iveco ML120E24/P built?

Production years: 2006.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
