Iseki TG5330 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

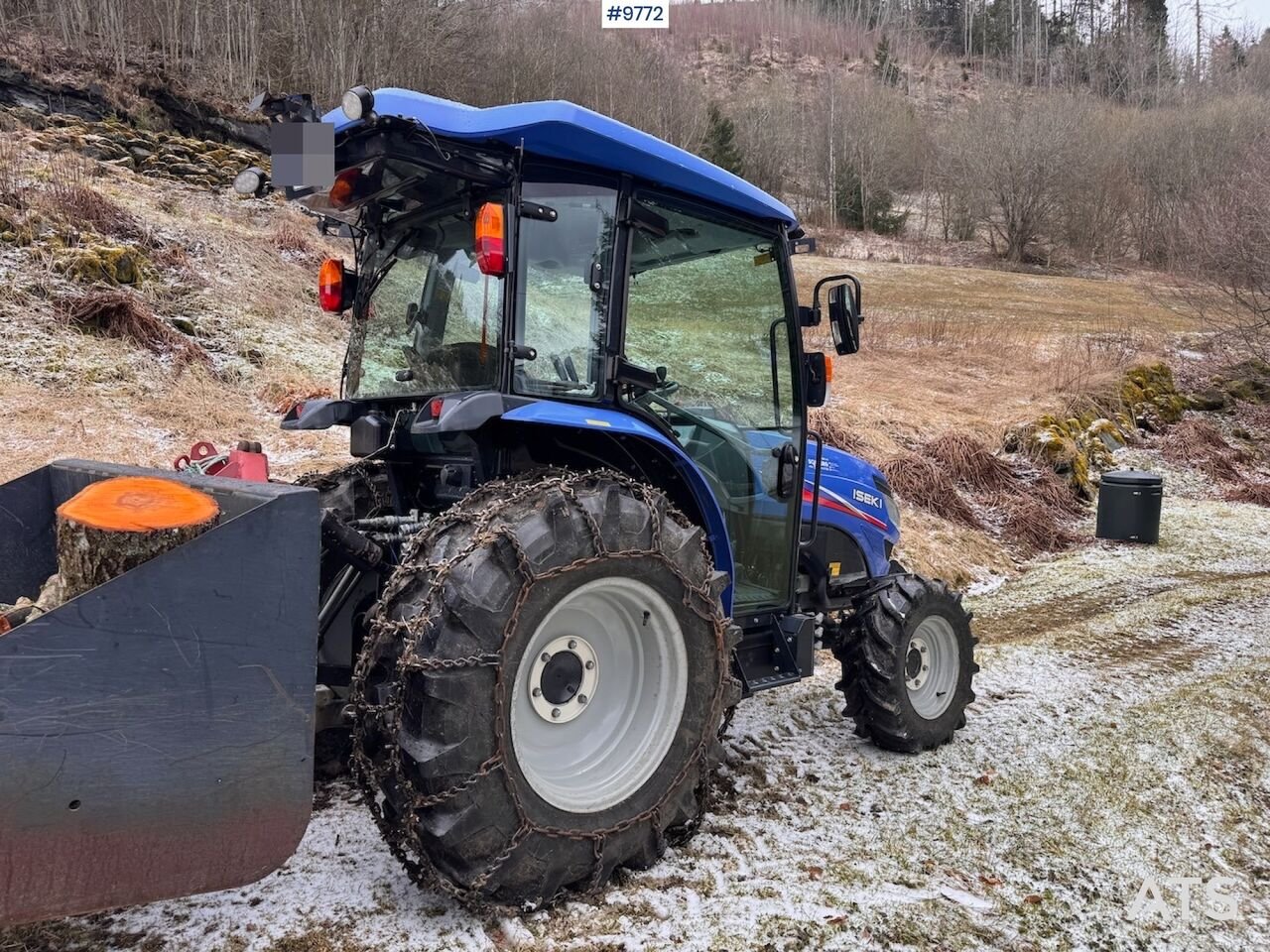

The Iseki TG5330 is a tractor made by Iseki. 23.9 kW is what the three-cylinder engine gets out of 1.5 litres. Rated power is reached at 2,600 rpm.
It runs with MFWD. At 30 km/h, that is as fast as it goes. Empty, it weighs 1,305 kg.
It runs on diesel; the engine is water-cooled. Within the range, rated power spans from 7.5 to 63 kW; with 23.9 kW, the TG5330 sits in the mid-field. Directly alongside are the TH4330FH with 23.5 kW below and the TL3201 with 24 kW above.
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 32 hp (23.9 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,499.4 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,140 mmcorrect |
|---|---|
| Ground clearance | 420.1correct |
| Unladen weight | 1,305 kgcorrect |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
| Tyre size | Front 7-16, Rear 12.4-24correct |
| Top speed | 29.9 km/hcorrect |
Working data
| Pump flow | 34.4 l/mincorrect |
|---|---|
| Fuel tank capacity | 40.1 lcorrect |
Origin and approval
| Plant | Japancorrect |
|---|
Other data
| Cab height | 2,572.5correct |
|---|
Where this model stands
Power-to-weight ratio: 18.3 kW/t (24 kW / 1.3 t)
Power class: Compact (< 40 hp)
Stronger than 20% of the tractors in the register — out of 15,143 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Iseki TG5330 have?
The Iseki TG5330 delivers 32 hp.
How much does the Iseki TG5330 weigh?
The unladen weight is 1,305 kg.
What engine does the Iseki TG5330 have?
3 cylinders, 1,499 cm³ displacement, diesel.
How fast does the Iseki TG5330 go?
Top speed is 29.9 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 20 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
