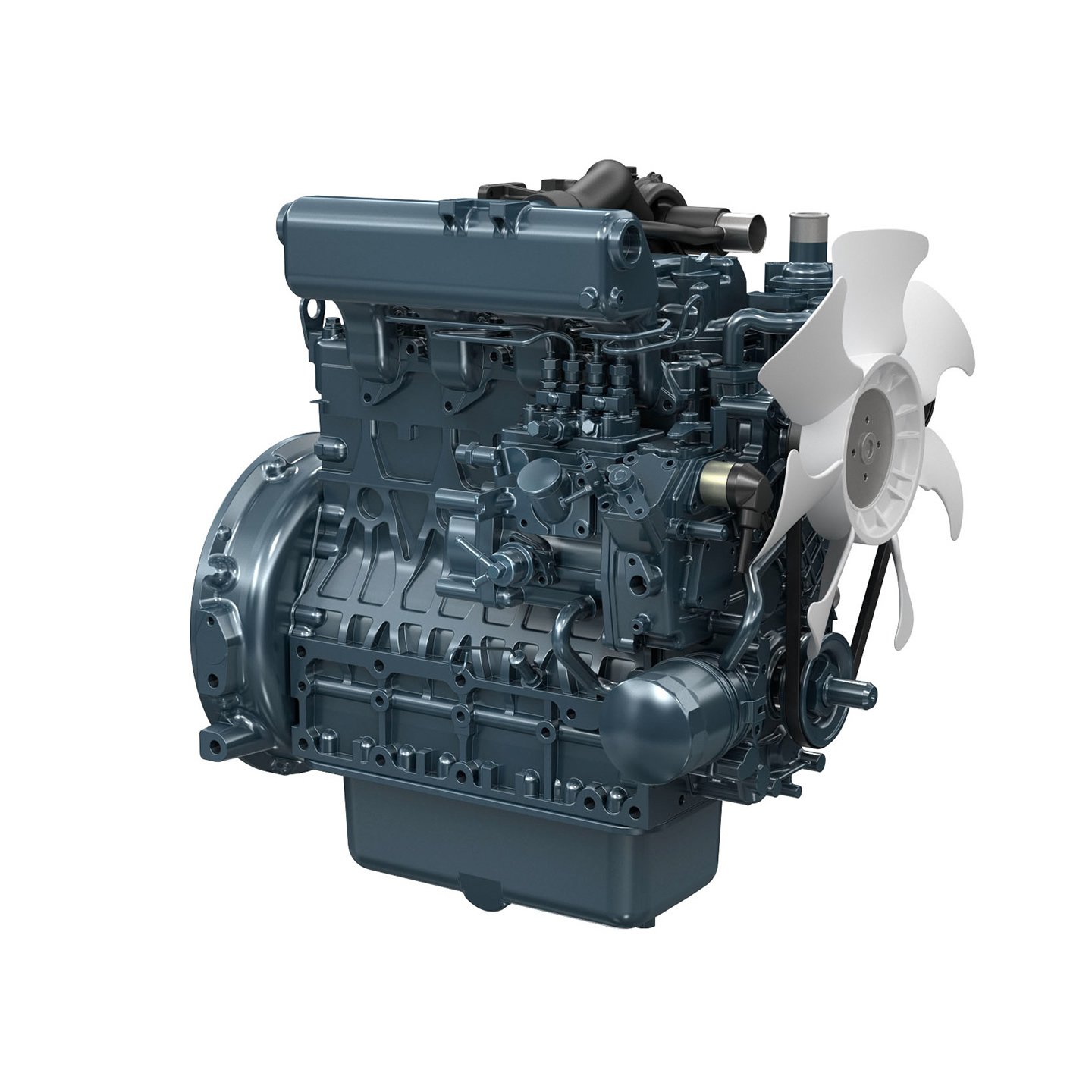

Ihi Agri Tech BV4

The register lists here 291 versions with 4 to 50 kW rated output at 1,500 to 3,600 rpm, from two- to four-cylinders with 67 to 84 mm bore and 72 to 100 mm stroke, torques from 20.6 to 208 Nm, model years from 2012 to 2020. Indirect injection prevails with around 236 versions combined against 55 direct-injection engines; among the emission stages Tier 4 (Final or Phase-in) leads with 183 ahead of Interim Tier 4 with 108 versions.

Engines of this class chiefly drive mini excavators, compact loaders and small farm implements; as a supplier, IHI Agri-Tech equips both its own machines and outside manufacturers with no small-diesel production of their own in the lowest power segment.

On a used purchase, on the predominantly indirect-injection engines the glow-plug system and cold-start behaviour count, the condition of injection pump and nozzles, the tightness of crankshaft seals and valve-cover gasket, and on the few turbocharged versions the turbocharger itself; since the model years lie mostly before 2020, parts availability is worth checking in advance.
