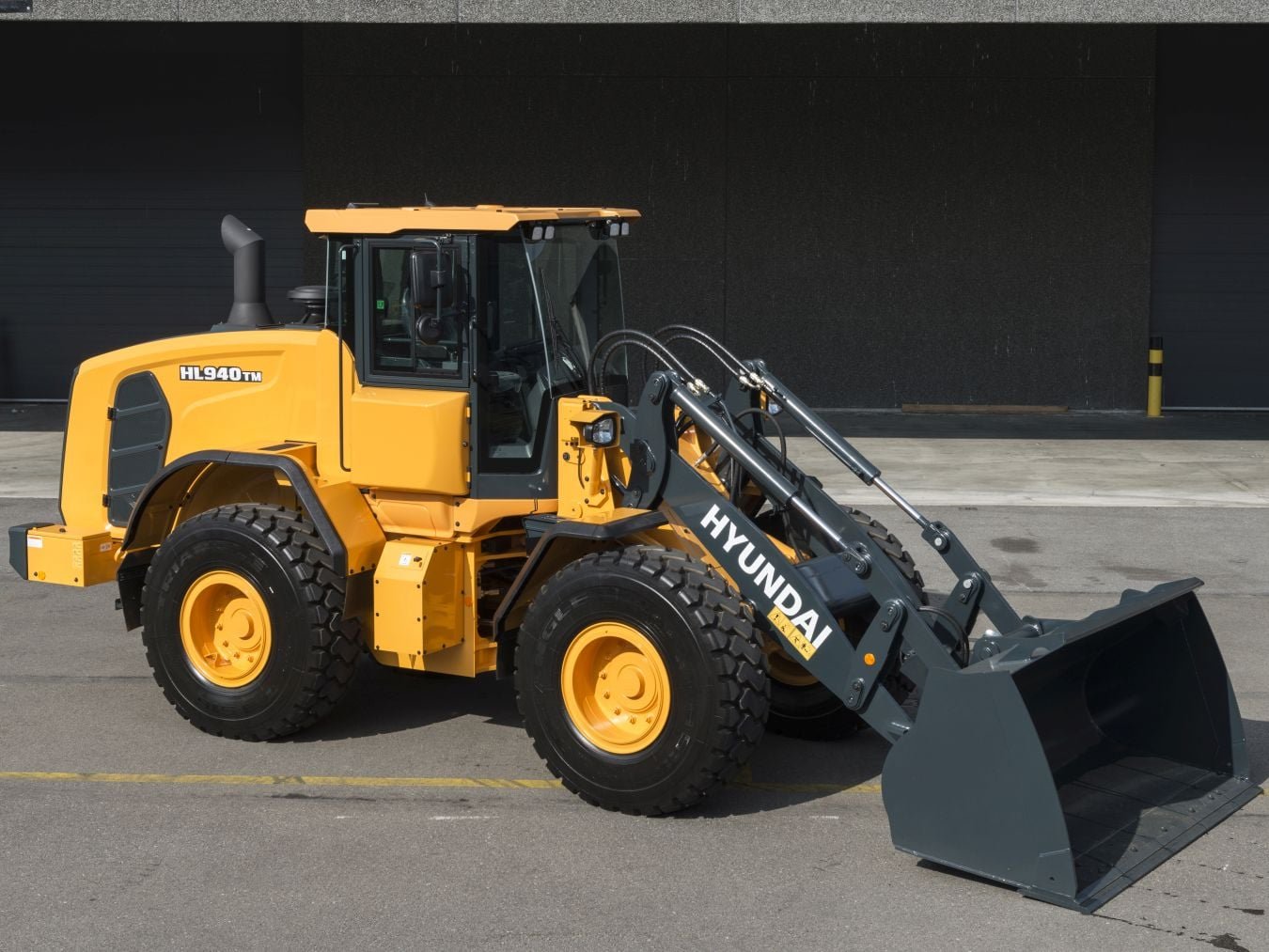

Hyundai HL940

Series: Hyundai Wheel Loader

Source: https://storage.googleapis.com/a16u2huulgj9/hyundai-940-spec

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Hyundai HL940 belongs to the Hyundai Wheel Loader series. The engine delivers 160.2 hp (116.3 kW), has 6 cylinders, with a displacement of 6,700.7 cm³. The engine comes from CUMMINS. Rated speed is 2,100 rpm. The unladen weight is 13,100 kg. The wheelbase measures 2,950.5 mm. Ground clearance is 417.6 mm. The tank holds 220.3 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 147.6 l/min. The hydraulic tank holds 130.2 litres. Working pressure is 205.9 bar. The cooling system holds 34.1 litres. The electrical system runs on 24 V. The engine fitted is the QSB6,7. Tyre size: 20,5 R25. The Hyundai Wheel Loader series covers 36 models. Rated output within it ranges from 126.7 to 352.8 hp; the HL940 sits at the bottom of that range with 160.2 hp. Its immediate neighbours are the HL740XTD-9 below it with 147 hp and the HL757-7 above it with 175.4 hp. 391 Hyundai models across 22 series are on record. The model is listed under Wheel loaders. 23 verified figures from 1 source are on file.

Technical data

Engine

Engine makeCUMMINScorrect
Engine modelQSB6.7correct
Power160.2 hp (116.3 kW)correct
Rated speed2,100 rpmcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders6correct
Displacement6,700.7 cm³correct
Aspirationturbochargedcorrect
Coolant capacity34.1 lcorrect

Dimensions and weights

Wheelbase2,950.5correct
Ground clearance417.6correct
Unladen weight13,100 kgcorrect

Drivetrain and chassis

Gearbox typeFull automatic gearbox power shiftcorrect
Forward gears4correct
Reverse gears3correct
Tyre size20.5 R25correct
System voltage24 Vcorrect

Working data

Pump flow147.6 l/mincorrect
Hydraulic oil capacity130.2 lcorrect
Hydraulic pressure205.9correct
Fuel tank capacity220.3 lcorrect

Other data

Height3,301correct

Where this model stands

Power-to-weight ratio: 8.9 kW/t (116 kW / 13.1 t)

Stronger than 60% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Hyundai HL940 have?

The Hyundai HL940 delivers 160 hp.

How much does the Hyundai HL940 weigh?

The unladen weight is 13,100 kg.

What engine does the Hyundai HL940 have?

6 cylinders, 6,701 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
